Mechanical Connectors

Homac

Aluminum Tin Plated Mechanical Lug, One 13/32 inch Diameter Mount Hole On Pad, One Wire Port, 3/8-24 x 3/8 inch long Set Screw, 1-49/64 inch Long, 13/16 inch High and 1 inch Wide

A 70-406 V1 Homac 70-406 V1 Lug, Aluminum

MFR: ABB - Installation Products

MFR #: A 70-406 V1

UPC: 783786708994

Item #: 324240

HOMAC

BY Series PVC Insulated Street and Highway Lighting Mechanical Connectors, Conductor range 14-2/0

BY-320 Homac BY Series Insulated Mechanical Connector, 14 to 2/0 AWG, PVC

MFR: ABB - Installation Products

MFR #: BY 320

UPC: 783786710249

Item #: 351515

HOMAC

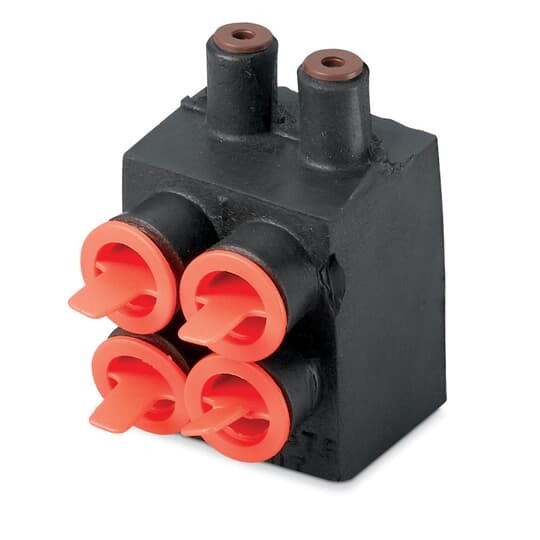

Rubber Insulated Street and Highway Lighting Mechanical Connectors, Conductor Range Main 1/0 maximum, Tap 12-8, with Hex Socket Screws

RB-210-8-SL Homac Insulated Mechanical Connector With Hex Socket Screw, 1 AWG, EPDM Rubber

MFR: ABB - Installation Products

MFR #: RB 210-8 SL

UPC: 783786745661

Item #: 688192

Homac

Tin Plated Aluminum Dual Rated Mechanical Lug #14 - 1/0 CU9AL. CSA/UL Listed. Temperature Rating of 90 Degrees C, Bolt 1/4 inch. Length 1-1/2 inch, Width 5/8 inch, Height 13/16 inch. Pad Thickness 3/16 inch with One 9/32 inch Diameter Hole. Tap is 7/16-20 UNF-2B x .547 inch Deep. Includes One Tin Plated Aluminum 7/16-20 x 3/8 inch Screw.

A-125 Homac Type A Mechanical Lug Connector, 14 to 1/0 AWG Aluminum/Copper Conductor, 1/4 in Stud, Aluminum

MFR: ABB - Installation Products

MFR #: A 125

UPC: 783786705139

Item #: 163449

Homac

Aluminum, Tin Plated, Mechanical Connector for Range of 600 kcmil - #4. CU9AL. CSA/UL listed. Length 2-3/4 inch, Width 1-3/8 inch, Height 1-1/2 inch. Pad Thickness 5/16 inch with One 7/16 inch Diameter Hole. Tapped 7/8-14 UNF-2A. Includes One Tin Plated Aluminum Set Screw 7/8-14 UNF-2A x 1-1/16 inch Long with 1/2 inch Hex Head.

A-600-HM Homac Type A Lug Connector, 4 AWG to 600 kcmil, 3/8 in Stud, Aluminum

MFR: ABB - Installation Products

MFR #: A 600-HM

UPC: 783786707171

Item #: 339106

Homac

Tin Plated Aluminum Mechanical Lug, #4 - 600 kcmil, Dual Rated Copper and Aluminum, 90 Degree C, UL listed. Length 3-3/16 inch, Width 2-3/8 inch, Height 1-9/16 inch, Pad Thickenss 7/16 inch with One 17/32 inch Diameter Hole and Anti-Rotation Bar on Bottom of Connector. Two Transverse Taps - 7/8-15 UNF-2B x 1.115 inch Deep on 1.225 inch Center. Includes Two Tin Plated Aluminum 7/8-14 x 1.062 inch Set Screws.

AD-600-L-531-V1 Homac Mechanical Lug Connector, 4 AWG to 600 kcmil Aluminum/Copper Conductor, 1/2 in Stud, Aluminum

MFR: ABB - Installation Products

MFR #: AD 600 L 531 V1

UPC: 783786692149

Item #: 194022

Homac

Aluminum Mechanical Lug, #4 SOL, Bolt hole 1/2 inch, Length 1.77 inch, Width 1 inch, Height .81 inch. Tapped 3/8-24 UNF-2A. 3/16 Hex Steel Set Screw. Tin Plate Finish.

A-70-562-V1 Homac Type A Mechanical Lug Connector, 4 AWG Aluminum/Copper Conductor, 1/2 in Stud, Aluminum

MFR: ABB - Installation Products

MFR #: A 70-562 V1

UPC: 783786709007

Item #: 1002365

Homac

Tin Plated Aluminum Dual Rated Mechanical Lug, #4 - 600 kcmil, Copper and Aluminum, Temperature Rating of 90 Degrees C, CSA/UL Listed. Bolt 3/8 Inch. Length 2-3/4 inch , Width 1-3/8 inch, Height 1-1/2 inch. Pad Thickness 5/16 inch with One 13/32 inch Diameter Hole. Tapped 7/8-14 UNF-2A. Includes One Tin Plated Aluminum Set Screw 7/8-14 UNF-2A x 1-1/16 inch Long with 1/2 inch Hex Head. 100 Pieces

A-600-L-406 Homac Type A Mechanical Lug Connector, 4 AWG to 600 kcmil Aluminum/Copper Conductor, 3/8 in Stud, Aluminum

MFR: ABB - Installation Products

MFR #: A 600 L 406

UPC: 783786707188

Item #: 227352

Homac

Tin Plated Aluminum Mechanical Lug, #4 - 600, Dual Rated CU9AL. CSA/UL Listed. Bolt 1/2 Inch. Length 2-3/4 inch, Width 1-3/8 inch, Height 1-1/2 inch. Pad Thickness 5/16 inch with One 17/32 inch Diameter Hole. Tapped 7/8-14 UNF-2A. Includes One Tin Plated Aluminum Set Screw 7/8-14 UNF-2A x 1-1/16 inch Long with 1/2 inch Hex Head.

A-600-531 Homac Type A Mechanical Lug Connector, 4 AWG to 600 kcmil Aluminum/Copper Conductor, Aluminum

MFR: ABB - Installation Products

MFR #: A 600-531

UPC: 783786707256

Item #: 67349

HOMAC

Aluminum PanelBoard Lug, Dual Rated Mechanical Lug, Dual Rated Connector Copper and Aluminum 90 Degree C, #2 - 600 kcmil, Bolt Hole 3/8 inch, Four Barrel. 3 inch X 2-1/2 inch X 4-15/16 inch.

AQ-4-600 Homac 4-Barrel Dual Rated Mechanical Panelboard Lug, 2 AWG to 600 kcmil, 3/8 in Bolt/Stud, 1-3/4 in Hole Spacing

MFR: ABB - Installation Products

MFR #: AQ 4-600

UPC: 783786694709

Item #: 241359

Homac

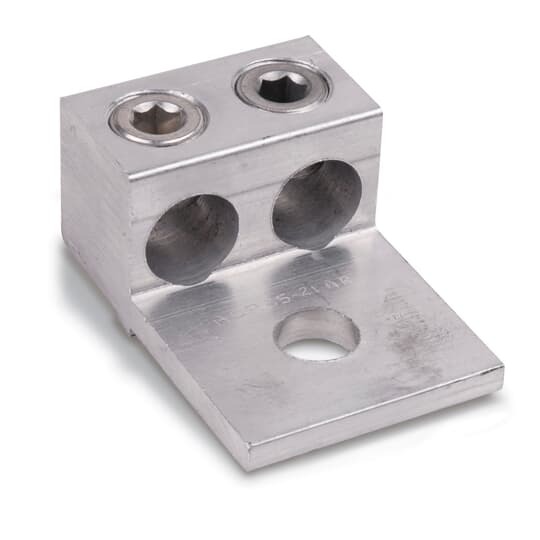

Aluminum Mechanical Lug, Two Barrel, #4 - 600 kcmil, Bolt Size 1/2 Inch, Height 1-9/16 Inches, Width 2-3/8 Inches, Length 3-1/8 Inches, Tin Plated

AD-600 Homac 2-Barrel Mechanical Lug Connector, 4 AWG to 600 kcmil Aluminum/Copper Conductor, 1/2 in Stud, Aluminum

MFR: ABB - Installation Products

MFR #: AD 600

UPC: 783786692118

Item #: 252320

Homac

Tin Plated Aluminum Dual Rated Mechanical Lug, #4 - 600 kcmil, Copper and Aluminum, Temperature Rating of 90 Degrees C, CSA/UL Listed. Bolt 1/2 Inch. Length 2-3/4 inch , Width 1-3/8 inch, Height 1-1/2 inch. Pad Thickness 5/16 inch with One 9/16 inch Diameter Hole and Anti-Rotation Bar on Bottom of Connector. Tapped 7/8-14 UNF-2A. Includes One Tin Plated Aluminum Set Screw 7/8-14 UNF-2A x 1-1/16 inch Long with 1/2 inch Hex Head. 100 Pieces

A-600-L-562 Homac Type A Mechanical Lug Connector, 4 AWG to 600 kcmil Aluminum/Copper Conductor, 1/2 in Stud, Aluminum

MFR: ABB - Installation Products

MFR #: A 600 L 562

UPC: 783786707201

Item #: 227242
