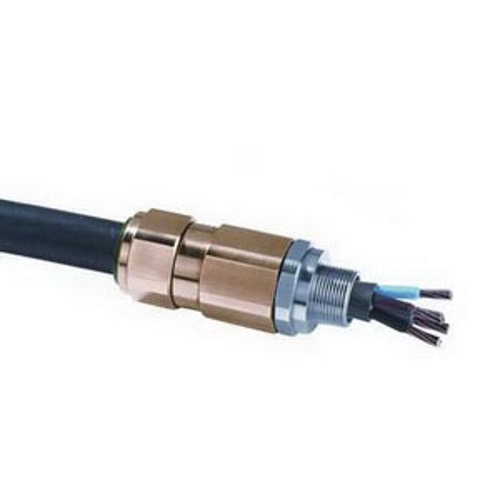

20ST30505 T3 Cable Gland Connector, 1/2 in Trade, 0.24 to 0.46 in Inner/0.37 to 0.63 in Outer Cable Openings, Brass, Nickel Plated
- MFR:
- Appleton Electric
- MFR #:
- 20ST30505
- UPC:
- 781381249409
- Item #:
- 814668
20ST30505 T3 Cable Gland Connector, 1/2 in Trade, 0.24 to 0.46 in Inner/0.37 to 0.63 in Outer Cable Openings, Brass, Nickel Plated
- MFR #:
- 20ST30505
- UPC:
- 781381249409
- Item #:
- 814668
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$160.11
each
T3 Series Cable Gland Connector, Size: 1/2 IN (20S), Conductor Range: Inner: 0.24 - 0.46 IN, Outer: 0.37 - 0.63 IN, Material: Brass, Finish: Nickel Plated, Connection: NPT, Dimensions: 0.94 IN Across Flat X 1.05 IN Across Corner X 3.11
Manuals and Documentation
| Catalog Number | 20ST30505 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | United Kingdom |
| Made in USA | No |
| Application | For All Types Of Armored Cable |
| Conductor Range | Inner: 0.24 - 0.46 IN, Outer: 0.37 - 0.63 IN |
| Connection | NPT |
| Finish | Nickel Plated |
| Material | Brass |
| Special Features | Cable gland with elastomer seal for use in hazardous areas with all types of armored cable; This product utilizes a unique compensating displacement seal (CDS) system which provides full compatibility with restricted breathing equipment; The CDS system is designed to alleviate any pressure on soft bedded cables; The cable gland allows mechanical cable retention and earth continuity via armor termination; A reversible armor cone and AnyWay universal clamping ring arrangement allows the cable to be easily disconnected from equipment; Inspection of the armor can be carried out while still maintaining the protection mode of the enclosure; Entry thread seal not supplied |
| Standard | UL 2225, CSA C22.2 No. 174, 101909, Certification Type T3CDS, Zones 1 And 2, Gas-ATEX/IEC Protection: Ex d IIC, Ex e II, Ex nR II, Zones 21 And 22, Dust - Conforming To ATEX 94/9/CE: 0081 II 2 D-ATEX/IEC Protection: Ex tD A21, II 2 GD, CE Declaration Of Conformity: DC07001, ATEX Certificate: SIRA 06 ATEX 1283X, IECEx Certificate: IECEx SIR 07.005X, CSA, GOST, Lloyds, DNV, ABS Certified, IEC Standards Latest Editions: 60079-0, 60079-1, 60079-7, 60079-15, 61241-0, 61241-1, Product Standards: BS 6121, NF E 03 601 (Conical Thread), ISO 065/I/III (Metric Thread) |
| UPC | 781381249409 |
| GTIN | 00781381249409 |
| Item Type | T3 Series Cable Gland Connector |
| Size | 1/2 IN (20S) |
