SQUARE D

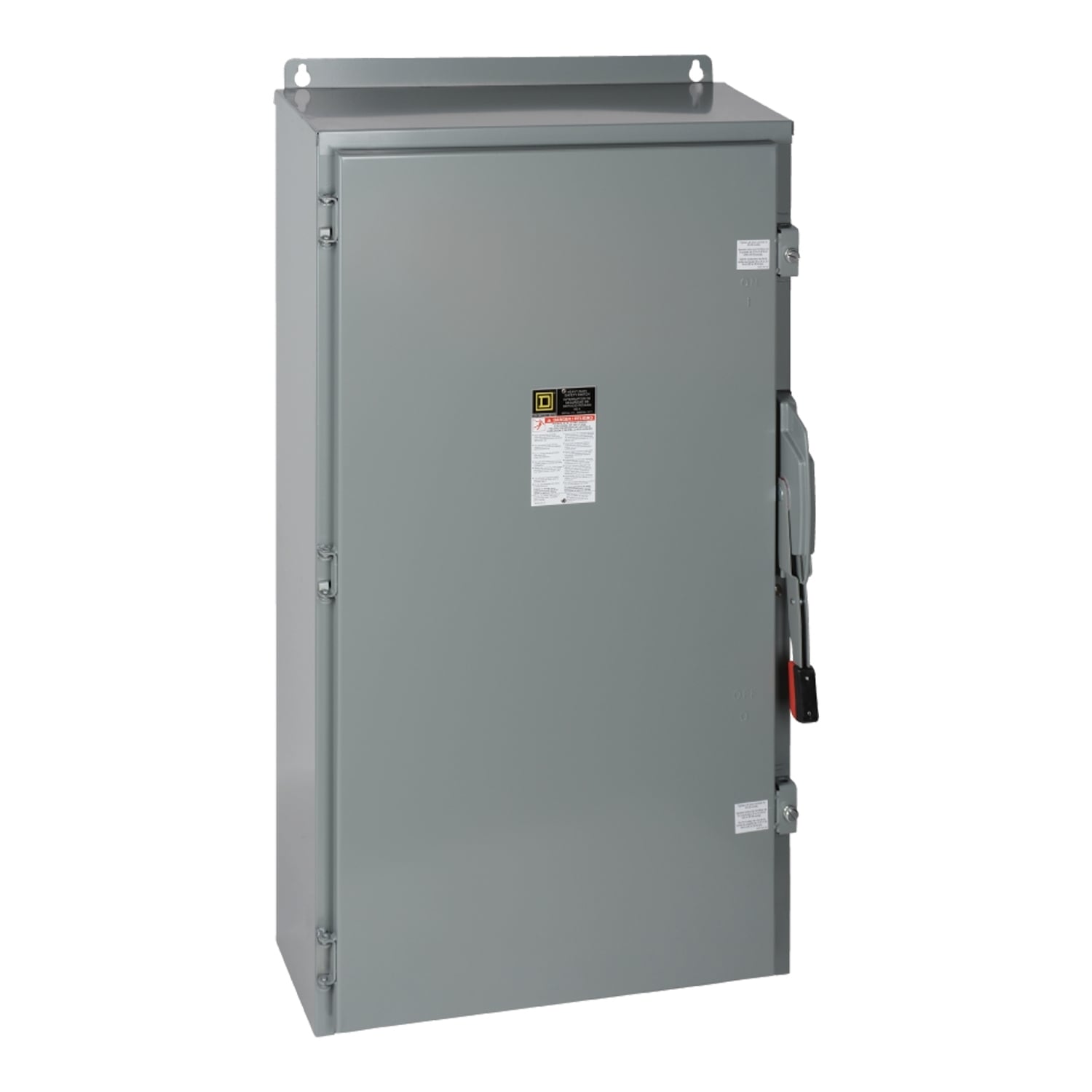

H365NAWK E5 Dust/Driptight Fusible Iceproof Rainproof Sleetproof Heavy Duty Safety Switch With Factory Installed Neutral, 600 V AC/DC, 400 A, 50 hp, 350 hp, 3 Poles

MFR:
Schneider Electric
MFR #:
H365NAWK
UPC:
785901829294
Item #:
81129

Availability

Location Available Qty
Available Available to Order
$5,831.33 each

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 60A with voltage of 600 VAC and 600 VDC. It is rated when using time delay fuses of 30 HP at 480 VAC three phase, 50 HP at 600 VAC three phase and 30 HP at 600 VDC. This switch has a 3 wire configuration and is rated for 12 to 3 AWG aluminum wire and 14 to 3 AWG copper wire. This device has enclosure rating of NEMA 4X and it is made of krydon which is a compression molded fiberglass reinforced polyester It has a height of 19.4 in, width of 11.4 in and has a depth of 8.6 in. It is UL listed with the file E2875.

Manuals and Documentation
Catalog Number H365NAWK
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Fuse Type H or K;R or J
Phase 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=364733&lang=en-us
UPC 785901829294
GTIN 00785901829294
Width 26.25
Width UOM Inch
Height 46.25
Height UOM Inch
Depth 10.13 IN
