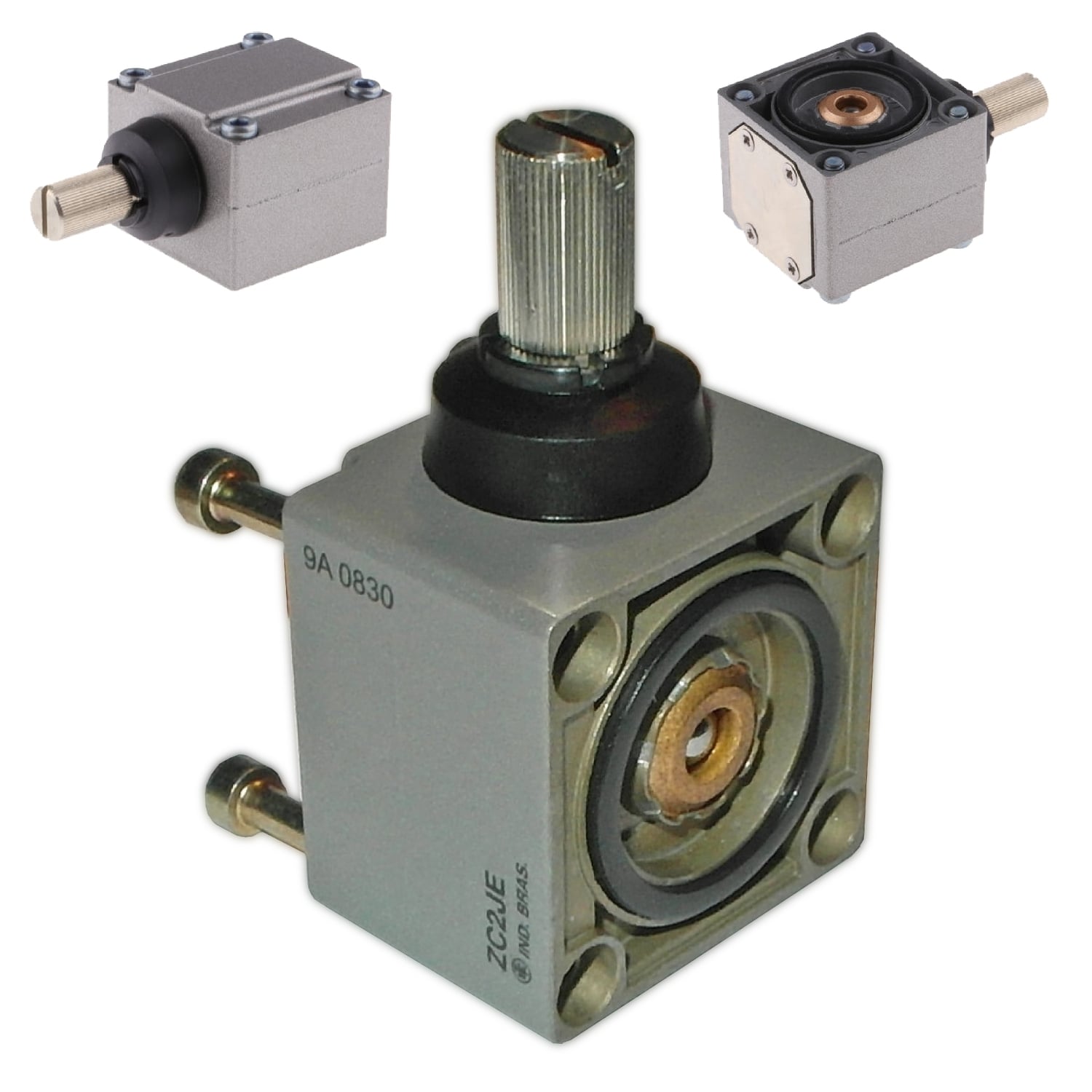

ZC2JE05 OsiSense XC Limit Switch Rotary Head, 1-Direction Lateral Lever, For Use With Special Format XC2J Series Limit Switch
- MFR:
- Telemecanique Sensors
- MFR #:
- ZC2JE05
- UPC:
- 785901266242
- Item #:
- 80789
ZC2JE05 OsiSense XC Limit Switch Rotary Head, 1-Direction Lateral Lever, For Use With Special Format XC2J Series Limit Switch
- MFR #:
- ZC2JE05
- UPC:
- 785901266242
- Item #:
- 80789
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$140.20
each
This product is part of the XC Standard range, an offer of limit switches. This limit switch head features with change over, snap action contacts without positive opening operation. Without spring return operating lever. The movement of operating head is rotary. It supports lateral approach in 1 direction programmable and an actuation from left or right. It weighs 0.21kg. It is compatible with XC2J limit switches. It is associated with ZC2JY11, ZC2JY81, ZC2JY12, ZC2JY31, ZC2JY13, ZC2JY51, ZC2JY91 levers and ZC2JD2, ZC2JD1, ZC2JC1, ZC2JC2, ZC2JC28, ZC2JC18 bodies.
Manuals and Documentation
| Catalog Number | ZC2JE05 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | Lateral approach, 1 direction programmable;CW or CCW;from left or right |
| Actuator | Without operating lever spring return |
| Application | XC2J |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=878614&lang=en-us |
| UPC | 785901266242 |
| GTIN | 03389110323924 |
| Item Type | Limit switch head |
| Environmental Conditions | STANDARD ENVIRONMENT |
| Operating Temperature | -25-70 A Degrees C |
