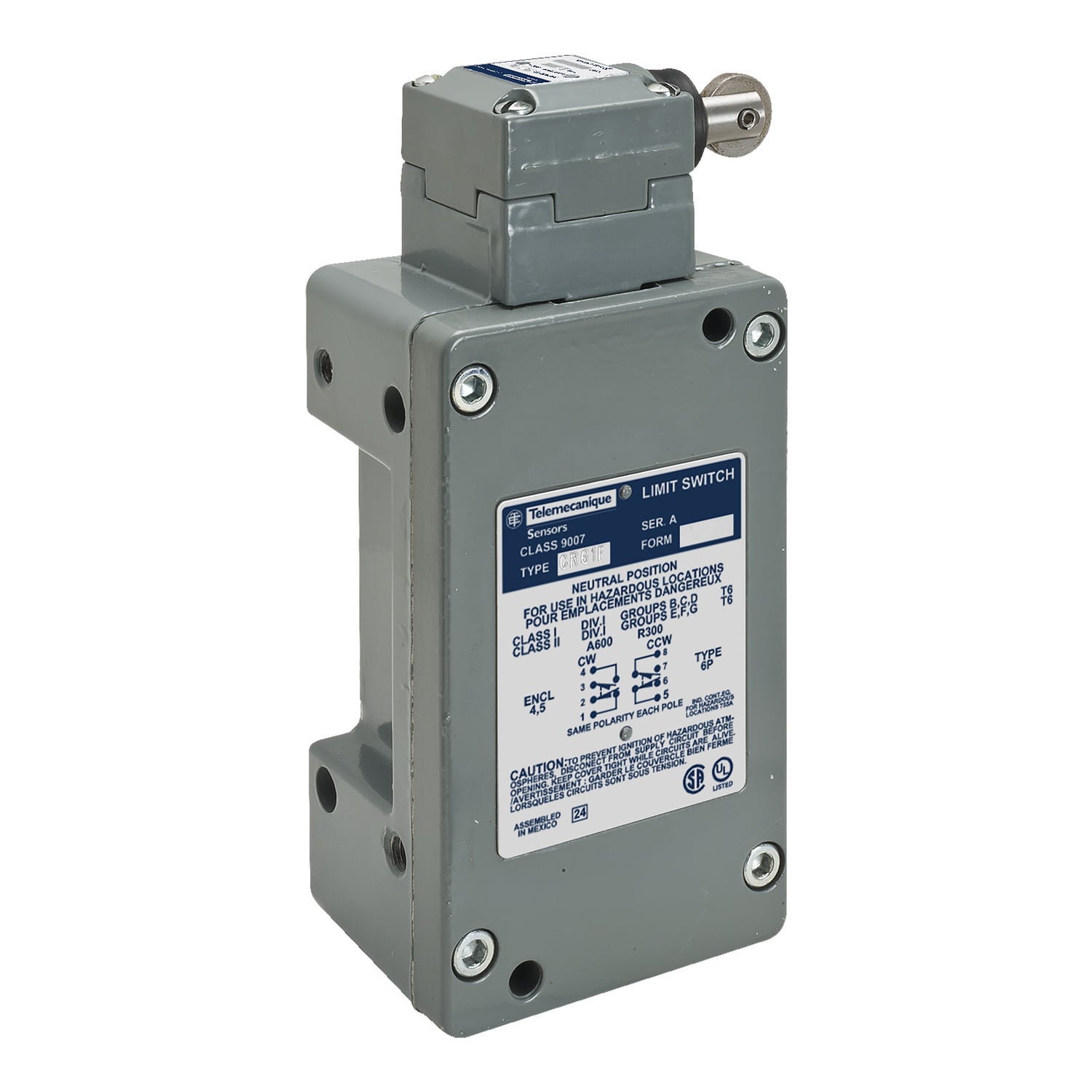

9007CR61F Heavy Duty Limit Switch, 600 V, 10 A, Side Roller Plunger Actuator, 2NO-2NC 2 Form Z DPDT-DB Contact, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- 9007CR61F
- UPC:
- 785901960829
- Item #:
- 775004
9007CR61F Heavy Duty Limit Switch, 600 V, 10 A, Side Roller Plunger Actuator, 2NO-2NC 2 Form Z DPDT-DB Contact, 2 Poles
- MFR #:
- 9007CR61F
- UPC:
- 785901960829
- Item #:
- 775004
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,562.98
each
LIMIT SWITCH 600V 10AMP C +OPTIONS
Manuals and Documentation
| Catalog Number | 9007CR61F |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | By 30 Degrees cam;Vertical approach, 2 directions;Snap action |
| Actuator | Steel spring return side roller plunger with vertical roller vertical convertible to horizontal) |
| Amperage Rating | 10 |
| Application | Hazardous location box |
| Connection | Screw-clamp terminals AWG 22...AWG 12), 1-2 |
| Contact Configuration | 2(NC-NO);Form ZZ |
| Contact Rating | NEMA A600/R300 |
| Enclosure | NEMA 1 NEMA TYPE 250-NEMA 2 NEMA TYPE 250-NEMA 4 NEMA TYPE 250-NEMA 6 NEMA TYPE 250-NEMA 6P NEMA TYPE 250-NEMA 12 NEMA TYPE 250-NEMA 13 NEMA TYPE 250 |
| Mounting | By The Body |
| Number of Poles | 2 |
| Operating Cycles | 1000000 CYCLES |
| Special Features | without |
| Standard | 25 GN 10-150 HZ)IEC 60068-2-6,60 GN 9 MS IEC 60068-2-27,IP67 IEC 60529,CLASS 0 IEC 61140 |
| UPC | 785901960829 |
| GTIN | 00785901960829 |
| Item Type | Limit switch |
| Size | 2.95 |
| Environmental Conditions | STANDARD ENVIRONMENT |
| Operating Temperature | -20-185 A Degrees F HAZARDOUS LOCATION |
| Voltage Rating | 1.2 A 600 V AC, A600 NEMA-1.5 A 480 V AC, A600 NEMA-3 A 240 V AC, A600 NEMA-6 A 120 V AC, A600 NEMA-0.11 A 250 V DC, R300 NEMA-0.55 A 125 V DC, R300 NEMA |
