Appleton

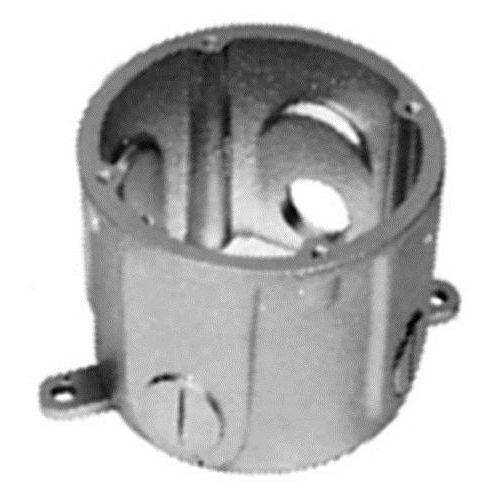

JBLX75L-A Unilets JB Series Conduit Outlet Box With Removable Mounting Lugs, 3/4 in Hub, Copper Free Aluminum, Epoxy Powder Coated

MFR:
Appleton Electric
MFR #:
JBLX75L-A
UPC:
781381302722
Item #:
717632

Availability

Location Available Qty
Available Available to Order
$250.46 each

UNILETS Outlet Box, Number Of Outlet: 4, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Size: 3/4 IN, Cable Entry: (4) 3/4 IN Tapped Openings, Knockouts: Yes, Height: 4-1/2 IN, Width: 5.69 IN, Depth: 3-1/8 IN, Finish: Epoxy Powder Coat, Standard: UL 514A , UL File Number E2527, NEMA FB-1, For Use With Threaded Metal Conduit

Manuals and Documentation

Features

  • Discontinued
Catalog Number JBLX75L-A
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Metal Conduit
Cable Entry (4) 3/4 IN Tapped Openings
Knockouts Yes
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Special Features Raintight when enclosed and gasketed with hub or blank covers; Furnished with internal ground screw and mounting lugs; Blind cover screw holes prevent conductor damage during installation, provide water-tightness; Furnished with four tapped holes and two close-up plugs; Serve as pulling fittings; Provide openings for splicing; Make straight connections and 90 DEG bends in conduit runs; Permit access to conductors for maintenance; Mounting hole: (2) 0.28 IN diameter
Standard UL 514A , UL File Number E2527, NEMA FB-1
RoHS Indicator Contact Manufacturer
UPC 781381302722
GTIN 00781381302722
Item Type Outlet Box
Length 5.0000
Length UOM Inch
Width 4.8000
Width UOM Inch
Height 4.1000
Height UOM Inch
Weight 1.506
Weight UOM Pounds
Size 3/4
