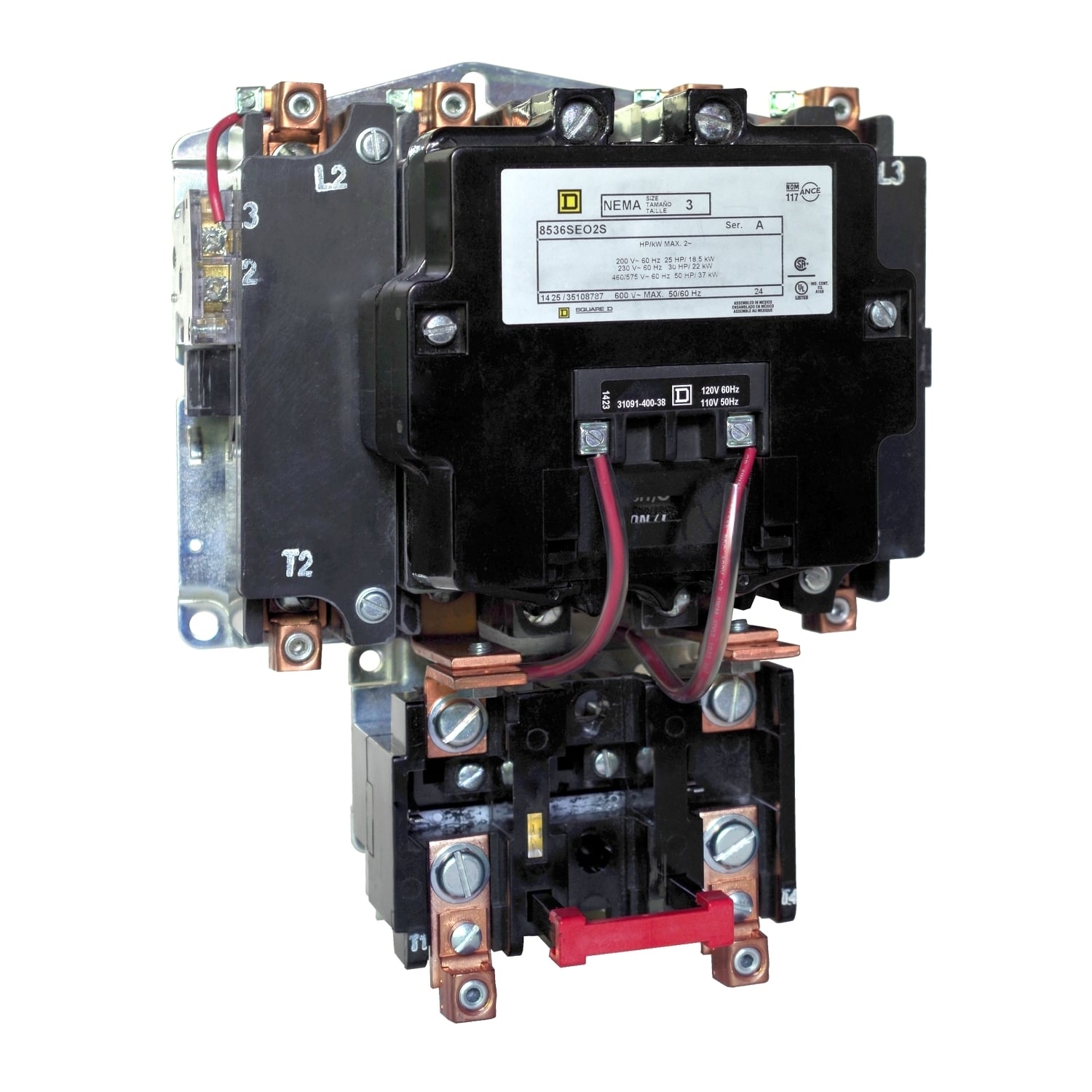

8536SEO1V03 Type S Non-Reversing NEMA Magnetic Starter, 220/240 VAC V Coil, 3 Poles, Open Enclosure
- MFR:
- Schneider Electric
- MFR #:
- 8536SEO1V03
- UPC:
- 785901788430
- Item #:
- 34421
8536SEO1V03 Type S Non-Reversing NEMA Magnetic Starter, 220/240 VAC V Coil, 3 Poles, Open Enclosure
- MFR #:
- 8536SEO1V03
- UPC:
- 785901788430
- Item #:
- 34421
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 3 non-reversing starter has a 90 ampere rating. This NEMA Size 3 motor starter has 3 phase ratings of 25 HP at 200 VAC, 30 HP at 230 VAC and 50 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type CC thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 220/240 VAC 50/60 Hz operating coil wired for common control. This NEMA starter is an open device without an enclosure. This starter is 11.09 inches tall, 5.47 inches wide and 6.50 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
Manuals and Documentation
| Catalog Number | 8536SEO1V03 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| UPC | 785901788430 |
| GTIN | 00785901788430 |
