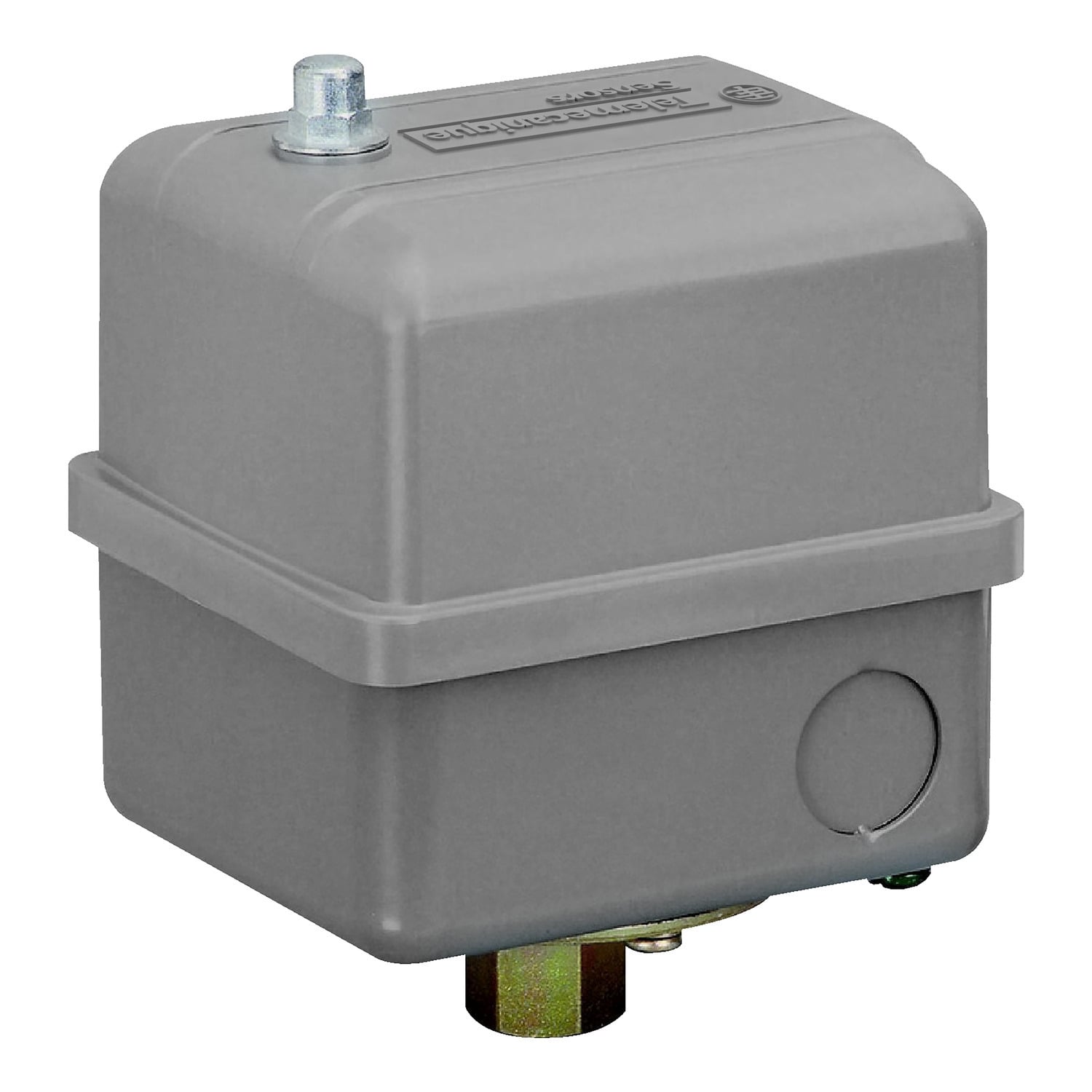

9013GHG3J62 Type G Adjustable Electro-Mechanical Pressure Switch, 40 to 170 psig Pressure, 2NC DPST-DB Contact, 3/8 in NPSF/Screw Clamp Connection
- MFR:
- Telemecanique Sensors
- MFR #:
- 9013GHG3J62
- UPC:
- 785901560340
- Item #:
- 231915
9013GHG3J62 Type G Adjustable Electro-Mechanical Pressure Switch, 40 to 170 psig Pressure, 2NC DPST-DB Contact, 3/8 in NPSF/Screw Clamp Connection
- MFR #:
- 9013GHG3J62
- UPC:
- 785901560340
- Item #:
- 231915
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$232.03
each
pump or compressor switch 9013GH - adjustable diff. - 140-175 psi
Manuals and Documentation
| Catalog Number | 9013GHG3J62 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Control electrically driven water pumps and air compressors;Power circuit;Regulation between 2 thresholds |
| Contact Configuration | 2 NC, snap action, DPST-DB, Form YY |
| Enclosure | NEMA 1 UL 50 |
| Operating Cycles | 10 CYC/MN |
| Process Connection | 0.375 INCH NPSF INTERNAL UL 508 |
| Special Features | - |
| Standard | CE-NSF ANSI 372-UL 508,CSA FILE LR25490-UL LISTED FILE E12158,IP20 IEC 60529 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=392297&lang=en-us |
| UPC | 785901560340 |
| GTIN | 00785901560340 |
| Item Type | Electromechanical pressure switch;Adjustable differential |
| Environmental Conditions | GENERAL PURPOSE (INDOOR) |
| Operating Temperature | -33-257 A Degrees F |
| System Pressure | 200 PSI 40-170 PSI) |
