Mersen

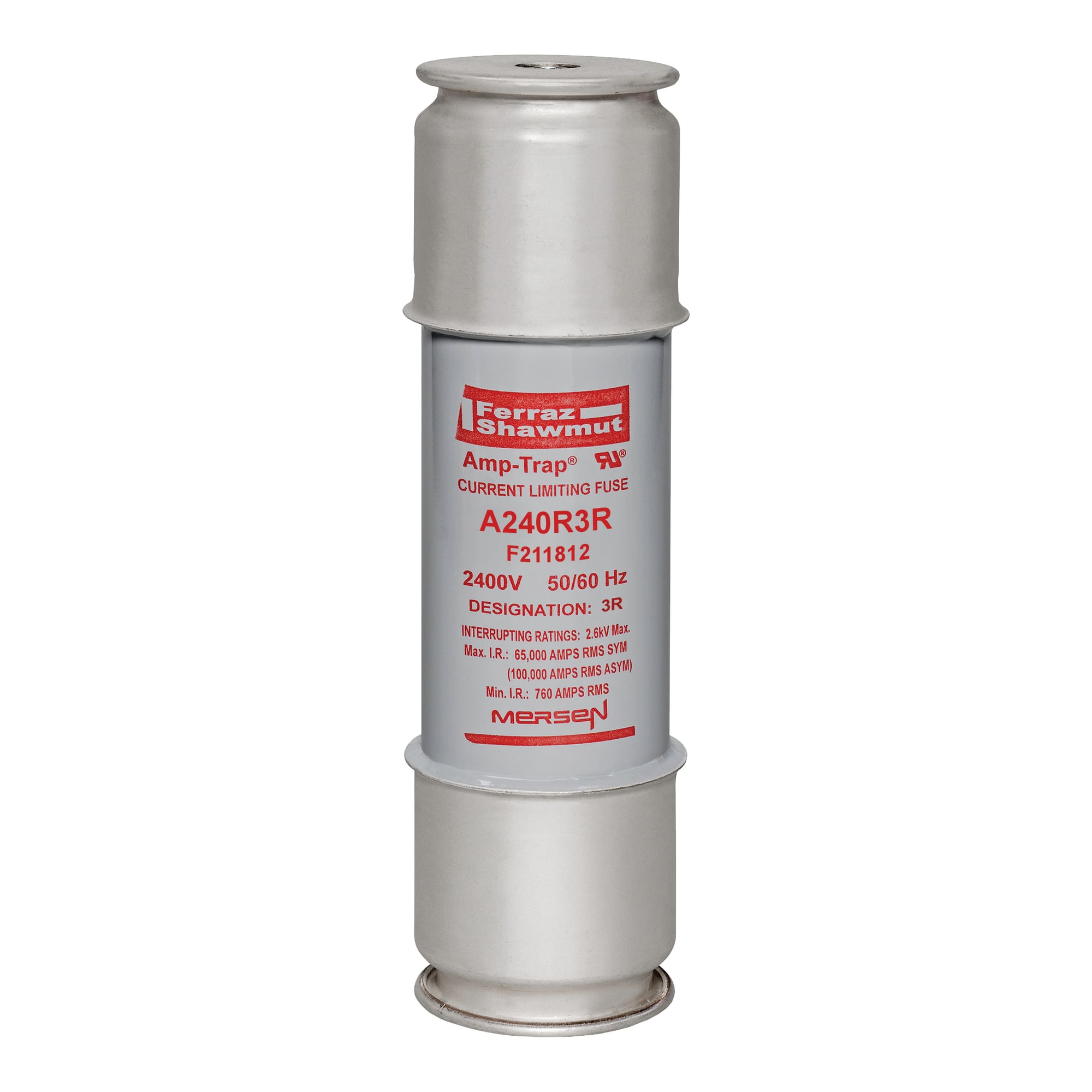

A240R3R Amp-Trap 1-Barrel Back Up Current-Limiting Medium Voltage Motor Protection Fuse, 100 A, 2.4 kV AC, 65 kA Interrupt, Class: R

MFR:
Mersen
MFR #:
A240R3R
UPC:
782001800031
Item #:
1502652

Availability

Location Available Qty
Available Available to Order

Back-Up R-Rated Medium Voltage Fuse 2400VAC 3R Mounting: Ferrule Visual Indicator Amp-Trap

Manuals and Documentation
Catalog Number A240R3R
Manufacturer Mersen
Brand Mersen
Country of Origin Mexico
Made in USA No
Application Short circuit protection of medium voltage motors and motor controllers
Connection Ferrule
Interrupt Rating 65 KA
Mounting Clip
Special Features The Amp-Trap and 9F60 R-Rated fuses are UL Recognized Ferrule mounting for standard clips and interchangeability with other brands of fuses Current-limiting for superior equipment protection Metal embossed catalog number and manufacturing date for lasting identification Hookeye for non load-break isolation by hookstick: On the 4.8kV an optional hookeye mounted in the factory is available On all other 3" barrels if a hookeye is required, use the operating eye 9F61AAW612 Blown-fuse indicator to give positive identification of open fuse Amp trap: 3" Barrel 2 lb tripped force - 0.50 Inch 9F60: 0.125 lb tripped force – 0.20 Inch
Standard Amp-Trap: UL File E93367 9F60: UL File E191980
UPC 782001800031
GTIN 00782001800031
Item Type Back-Up R-Rated Ferrule Mount Fuses for Motor Protection
Size 10.88 x 3
Type of Indicators Visual Indicator
Voltage Rating 2400
