Appleton

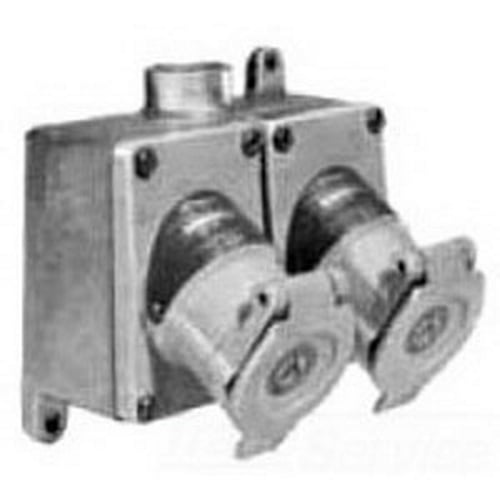

EFS250-2023 U-Line 2-Gang Dust-Ignitionproof Dead End Explosionproof Receptacle Assembly With Mounting Box, 125 V AC, 20 A, 3 Poles, 2 Wires

MFR:
Appleton Electric
MFR #:
EFS250-2023
UPC:
781381281409
Item #:
1361896

Availability

Location Available Qty
Available Available to Order
$1,352.92 each

U-Line 2-Gang Receptacle With Mounting Box, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 125 VAC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle, Malleable Iron Mounting Box, Nema

Manuals and Documentation
Catalog Number EFS250-2023
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application For ECP And NCP Mating Plugs
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle, Malleable Iron Mounting Box
Mounting Surface
NEMA Rating 3, 3R
Number of Poles 3
Number of Wires 2
Special Features Explosionproof, dust-ignitionproof; Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps; Suitable for use in Class I, Division 1, Group B when used with external seals (seals must be placed within 2 IN from each conduit opening, seals are not required in Class I, Division 2 locations); Spring cover; Glass-filled reinforced polyester insulating blocks
Standard Class I, Division 1 And 2 Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 And 2 Groups F, G; Class III; UL Listed: E10784, E81751; UL Standard: 1203, 1010, 894; CSA Standard: C22.2 No. 25, C22.2 No. 30, C22.2 No. 42, C22 No.159; CSA Certified: 038644
UPC 781381281409
GTIN 00781381281409
Item Type 2-Gang Receptacle With Mounting Box
Voltage Rating 125
