Flexible Braid

Showing 1 - 21 of 21 Items
Filters
expand_less Brand
expand_less Ways to Shop
expand_less Conductor Material
BLACKBURN GROUNDING
Tinned Copper Flexible Braid Connector for Grounding, 18 inch length x 1-1/4 inch wide x 1/4 inch thick, Number of Braids in Assembly 2 - 1 Across and 2 Layers Thick. Pad 1-1/4 inch wide x 2-1/2 inch long with (2) 7/16 inch Diameter holes on 1-1/4 inch Center to Center Spacing. 153600 Circular Mil Area, Bolt Holes 7/16. CSA and UL Certified.
MFR: ABB - Installation Products
MFR #: FB2D18
UPC: 783786466818
Item #: 1244462
Available to Order
$227.49 each
Availability
Location Available Qty
BLACKBURN GROUNDING
Flexible Braids for Grounding, 168000 Circular Mil Area, Bolt Hole 9/16 inch, 24 inch, Number of Braids in Ferrule 1, 1 Bolt Hole per Ferrule
MFR: ABB - Installation Products
MFR #: FBE24-1
UPC: 783786531479
Item #: 915851
Available to Order
$436.50 each
Availability
Location Available Qty
BLACKBURN GROUNDING
Tinned Copper Flexible Braids for Grounding, 76800 Circular Mil Area, Bolt Hole 7/16, 18 inch length, Number of Braids in Ferrule 1, 2 Holes per Ferrule with 1.25 Center to Center Spacing. Width 1 inch.
MFR: ABB - Installation Products
MFR #: FBD18
UPC: 786210468730
Item #: 313315
Available to Order
$218.18 each
Availability
Location Available Qty
BLACKBURN GROUNDING
Tinned Copper Flexible braid for grounding, 48000 circular mils, bolt hole 7/16 inch, 12 inches length, 1 braid in ferrule, 1 inch width, 1.3 inches ferrule length
MFR: ABB - Installation Products
MFR #: FBC12-1
UPC: 786210106434
Item #: 556951
Available to Order
$221.60 each
Availability
Location Available Qty
BLACKBURN GROUNDING
Tin Plated Copper, Flexible Braid Connector, 2 Hole Pad - 0.563 inch diameter with 1.75 Center to Center Spacing, 12.00 inches long x 1.875 inch wide x .85 inch thick. FB4G Series Standard. Pad 1.875 inch wide x 3.5 inch long. 4 Braids in Assembly. Circular Mil Area 1228800. 1/8 Flare Both Sides on Ferrule.
MFR: ABB - Installation Products
MFR #: FB4G12
UPC: 786210058412
Item #: 1198376
Available to Order
$491.39 each
Availability
Location Available Qty
BLACKBURN GROUNDING
Tinned Copper, Standard Flexible Braid Connector, SWD Series, 4 Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center. 36 inch (915 mm) long, 4 inch (101.6 mm) wide, 3/8 inch (9.5 mm) thick. Pad 4 inch x 4 inch. 30 AWG Individual Strand.
MFR: ABB - Installation Products
MFR #: SWD210A1915
UPC: 075114259538
Item #: 1198357
Available to Order
$843.71 each
Availability
Location Available Qty
BLACKBURN GROUNDING

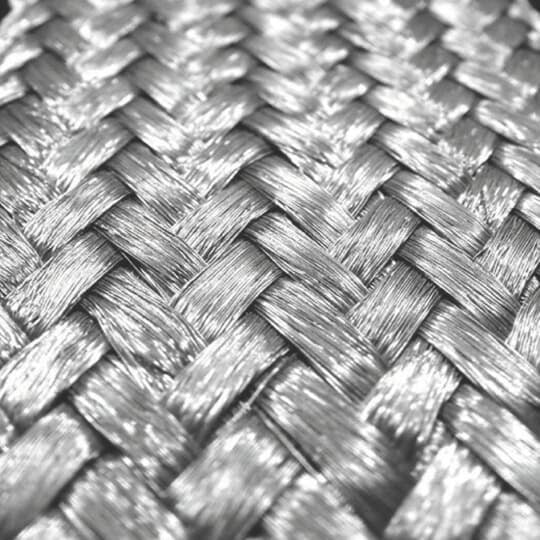

Tinned Copper Flexible Braid Connector. Bonding Jumper, One Braid. 16 Inch Long x 1 inch wide x .2 inch Thick, Pads 1 inch wide x 1.5 inch long, (1) 0.438 inch Diameter Hole each side. Circular Mil Area 76,800. CSA and UL Certified.
MFR: ABB - Installation Products
MFR #: FBD16-1
UPC: 786210731650
Item #: 430764
Available to Order
$108.42 each
Availability
Location Available Qty
BLACKBURN GROUNDING
Tin Plated Copper, Flexible Braid Connector, 2 Hole Pad - 0.563 inch diameter with 1.25 Center to Center Spacing, 24.00 inches long x 1.25 inch wide x .3 inch thick. FB2XD Series Standard. Pad 1.25 inch wide x 2.5 inch long. 2 Braids in Assembly. Circular Mil Area 211,200.
MFR: ABB - Installation Products
MFR #: FB2XD24
UPC: 783786337996
Item #: 979168
Available to Order
$206.66 each
Availability
Location Available Qty
BLACKBURN GROUNDING
Tinned Copper Flexible Braid Connector, 1-Hole NEMA Extra Flexible Jumper. 168000 Circular Mils, 1 Braid in Assembly. 16 Inches Total Length, 1.25 inch Wide, 0.25 inch Thick. Pad 1.25 wide x 1.5 inch long, Bolt Hole 9/16 inch, 1 in each Ferrule. CSA and UL Certified.
MFR: ABB - Installation Products
MFR #: FBE16-1
UPC: 786210855936
Item #: 865580
Available to Order
$304.15 each
Availability
Location Available Qty
BURNDY
Copper Braid, 12" Long, 1 Braid, 2 Holes 2 Ferrules, 7/16" Stud, 1-1/2" Stud Hole Spacing, 360 amps Indoor, 430 amps Outdoor.
MFR: Burndy, a Hubbell affiliate
MFR #: BF12
UPC: 781810807040
Item #: 329633
Available to Order
$514.28 each
Availability
Location Available Qty
BLACKBURN GROUNDING
Tinned Copper Flexible Braid Connector for Grounding, 12 inch length x 1.25 inch wide x .350 inch thick, Number of Braids in Assembly 2 - 1 Across and 2 Layers Thick. Pad 1.25 inch wide x 3.5 inch long. .563 inch Diameter holes with 1.75 inch Center to Center Spacing. 336000 Circular Mil Area
MFR: ABB - Installation Products
MFR #: FB2E12
UPC: 786210547794
Item #: 89859
Available to Order
$223.83 each
Availability
Location Available Qty
BLACKBURN GROUNDING
Tinned Copper Flexible Braid Connector for Grounding, 12 inch length x 1.25 inch wide x .25 inch thick, Number of Braids in Assembly 2 - 1 Across and 2 Layers Thick. Pad 1.25 inch wide x 2.5 inch long. One 0.438 inch Diameter hole on each Pad. 153600 Circular Mil Area.
MFR: ABB - Installation Products
MFR #: FB2D12-1
UPC: 783786419579
Item #: 200458
Available to Order
$198.44 each
Availability
Location Available Qty
BLACKBURN GROUNDING
Tin Plated Copper, Flexible Braid Connector, 1 Hole Pad - 0.563 inch diameter, 12.00 inches long x 1.25 inch wide x .3 inch thick. FB2XD-1 Series Standard. Pad 1.25 inch wide x 1.5 inch long. 2 Braids in Assembly 1 Across x 2 Layers Thick.
MFR: ABB - Installation Products
MFR #: FB2XD12-1
UPC: 786210854212
Item #: 201333
Available to Order
$173.52 each
Availability
Location Available Qty
BLACKBURN GROUNDING

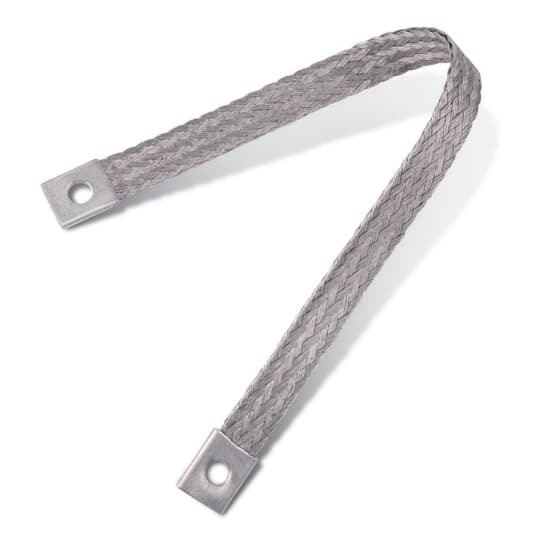

Flexible Braid 105.6 kcmil, Tinned, 12 Inch Long x 1 inch Wide x 1/4 inch Thick. Pad is 2-1/2 inch long with Two 9/16 inch In-Line Holes on 1-1/4 inch Centers.
MFR: ABB - Installation Products
MFR #: FBXD12
UPC: 786210106496
Item #: 1254597
Available to Order
$269.77 each
Availability
Location Available Qty
BLACKBURN GROUNDING
Tinned Copper, Standard Flexible Braid Connector, STB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 18 inch (457 mm) long, 1-1/2 inch (38.1 mm) wide, 3/8 inch (9.5 mm) thick. Pad 3-1/2 inch x 1-1/2 inch. 4 Braids in Assembly. 30 AWG Individual Strand. 1100 Amps.
MFR: ABB - Installation Products
MFR #: STB110A1457
UPC: 075114406215
Item #: 1066283
Available to Order
$116.07 each
Availability
Location Available Qty
BLACKBURN GROUNDING
Tinned Copper, Standard Flexible Braid Connector, STB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 20 inch (508 mm) long, 1-1/2 inch (38.1 mm) wide, 3/16 inch (4.7 mm) thick. Pad 3-1/2 inch x 1-1/2 inch. 1 Braids in Assembly. 30 AWG Individual Strand. 400 Amps
MFR: ABB - Installation Products
MFR #: STB040A1508
UPC: 075114403092
Item #: 1012339
Available to Order
$410.80 each
Availability
Location Available Qty
BLACKBURN GROUNDING
Tinned Copper, Standard Flexible Braid Connector, SWB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 20 inch (508 mm) long, 1-3/4 inch (44.4 mm) wide, 1/2 inch (12.7 mm) thick. Pad 1-3/4 inch x 3 inch. 30 AWG Individual Strand. 1050 Amps
MFR: ABB - Installation Products
MFR #: SWB105A1508
UPC: 075114403085
Item #: 1012347
Available to Order
$481.38 each
Availability
Location Available Qty
BLACKBURN GROUNDING
Tinned Copper, Standard Flexible Braid Connector, STB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 22 inch (559 mm) long, 1-1/2 inch (38.1 mm) wide, 3/16 inch (4.7 mm) thick. Pad 3-1/2 inch x 1-1/2 inch. 1 Braid in Assembly. 30 AWG Individual Strand. 400 Amps
MFR: ABB - Installation Products
MFR #: STB040A1559
UPC: 075114403108
Item #: 1012342
Available to Order
$412.69 each
Availability
Location Available Qty
BLACKBURN GROUNDING
Tinned Copper, Standard Flexible Braid Connector, STB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 18 inch (457 mm) long, 1-1/2 inch (38.1 mm) wide, 3/16 inch (4.7 mm) thick. Pad 3-1/2 inch x 1-1/2 inch. 1 Braid in Assembly. 30 AWG Individual Strand.
MFR: ABB - Installation Products
MFR #: STB040A1457
UPC: 075114406208
Item #: 1066274
Available to Order
$71.33 each
Availability
Location Available Qty
BLACKBURN GROUNDING
Tinned Copper, Standard Flexible Braid Connector, STB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 20 inch (508 mm) long, 1-1/2 inch (38.1 mm) wide, 3/8 inch (9.5 mm) thick. Pad 3-1/2 inch x 1-1/2 inch. 4 Braids in Assembly. 30 AWG Individual Strand. 1500 Amps.
MFR: ABB - Installation Products
MFR #: STB150A1508
UPC: 075114403122
Item #: 1012345
Available to Order
$543.08 each
Availability
Location Available Qty
BLACKBURN GROUNDING
Tinned Copper, Standard Flexible Braid Connector, STB Series, 2-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 20 inch (508 mm) long, 1-1/2 inch (38.1 mm) wide, 3/8 inch (9.5 mm) thick. Pad 3-1/2 inch x 1-1/2 inch. 4 Braids in Assembly. 30 AWG Individual Strand. 1100 Amps.
MFR: ABB - Installation Products
MFR #: STB110A1508
UPC: 075114403115
Item #: 1012344
Available to Order
$529.33 each
Availability
Location Available Qty
