Heat Shrinkable Tubes

Showing 49 - 96 of 737 Items
Ideal

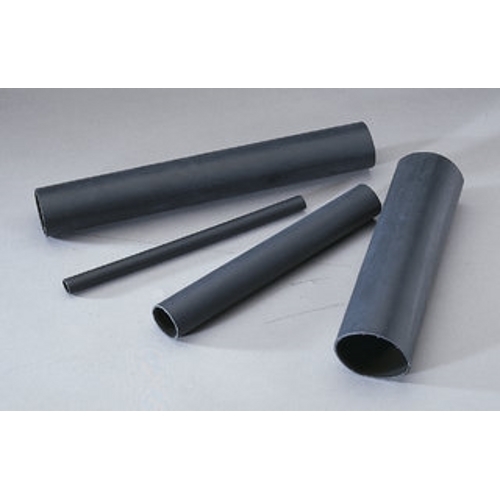

IDEAL, Heat Shrinkable Tube, Thermo-Shrink, Heavy-Wall Heat Shrink Tubing, Shrink Ratio: 3:1, Thickness: 0.120 IN, Length: 9 IN, Volume Resistivity: 1013 OHM -CM MIN, Dielectric Strength: 500 V/MIL (20 KV MINT), Continuous Operating Temperature: -55 To 110 DEG C, Minimum Shrink Temperature: 120 - 250 DEG C (200 DEG C Recommended), Low Temperature Flexibility: -55 DEG C, Heat Shock: No Cracks, Flowing Or Dripping (4 HR At 225 DEG C), Water Absorption: 0.5 PCT, Heat Aging: 500 PCT (168 HR At 175 DEG C Tensile Strength Elongation), Cable Range: 1 - 3/0 AWG, Nominal Recoveredi.d. (max.): 0.350 IN, Expanded I.d. (min.): 1.100, Copper Corrosion: Non-Corrosive, Ultimate Elongation: 600 PCT Min., Model: TS-46-1100

IDEAL, Heat Shrinkable Tube, Thermo-Shrink, Heavy-Wall Heat Shrink Tubing, Shrink Ratio: 3:1, Thickness: 0.120 IN, Length: 9 IN, Volume Resistivity: 1013 OHM -CM MIN, Dielectric Strength: 500 V/MIL (20 KV MINT), Continuous Operating Temperature: -55 To 110 DEG C, Minimum Shrink Temperature: 120 - 250 DEG C (200 DEG C Recommended), Low Temperature Flexibility: -55 DEG C, Heat Shock: No Cracks, Flowing Or Dripping (4 HR At 225 DEG C), Water Absorption: 0.5 PCT, Heat Aging: 500 PCT (168 HR At 175 DEG C Tensile Strength Elongation), Cable Range: 1 - 3/0 AWG, Nominal Recoveredi.d. (max.): 0.350 IN, Expanded I.d. (min.): 1.100, Copper Corrosion: Non-Corrosive, Ultimate Elongation: 600 PCT Min., Model: TS-46-1100

MFR: Ideal Industries
MFR #: 46-352
UPC: 783250463527
Item #: 180143
Ideal

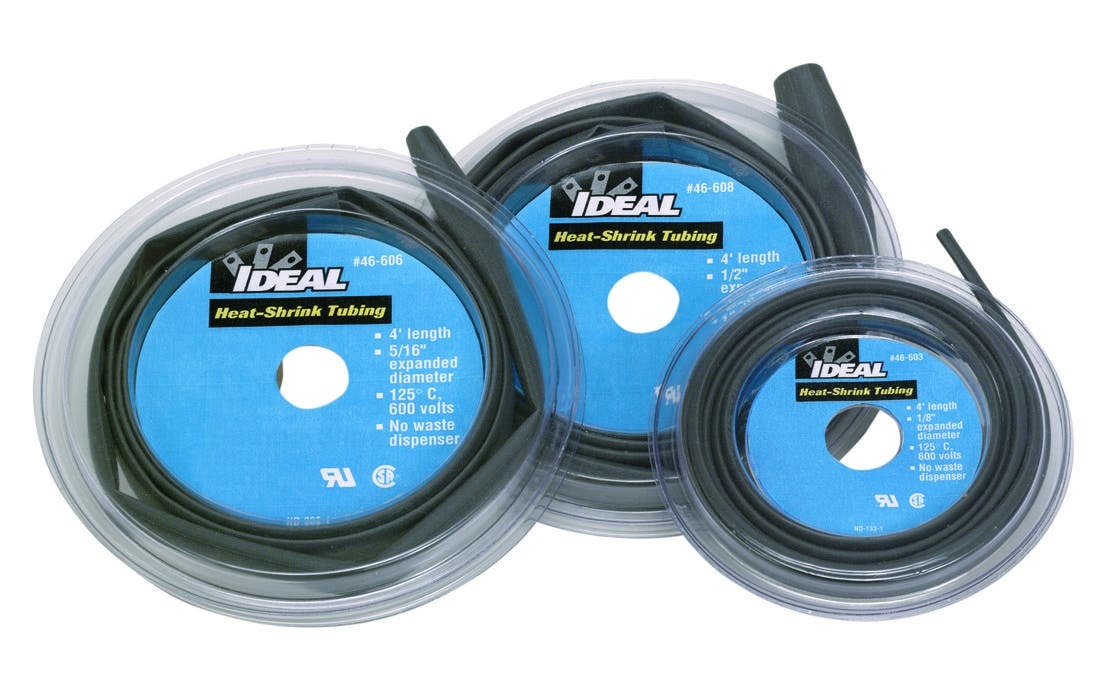

IDEAL, Heat Shrinkable Tube, Thermo-Shrink, Thin-Wall, Shrink Ratio: 2:1, Inside Diameter: 1/8 IN, Thickness: 017 IN, Length: 4 FT, Dielectric Strength: ASTM D 150, 20 KV/MM, Volume Resistivity: 1014 OHM CM For ASTM D 876 Test Method, Continuous Operating Temperature: -55 To 125 DEG C, Minimum Shrink Temperature: 70 DEG C, Heat Shock: UL 224, No Cracking (250 DEG C/4 HR), Cable Range: 24 - 20 AWG, Nominal Recoveredi.d. (max.): 063 IN, Expanded I.d. (min.): 0.146, Elongation At Break: 600 PCT ASTM D 638, Elongation Of Break After Aging: 350 PCT For UL 224 Test Method, Cold Bend Test (-55c/4 Hours): No Cracking For UL 224 Test Method, Copper Corrosion: Pass For UL 224 Test Method, Chemical Resistance: Pass For UL 224 Test Method, Longitudinal Shrinkage: 0 Plus Or Minus 5 PCT For UL 224 Test Method, Eccentricity: 30 PCT For UL 224 Test Method, Normal Size: 1/8 IN, Package: Disk

IDEAL, Heat Shrinkable Tube, Thermo-Shrink, Thin-Wall, Shrink Ratio: 2:1, Inside Diameter: 1/8 IN, Thickness: 017 IN, Length: 4 FT, Dielectric Strength: ASTM D 150, 20 KV/MM, Volume Resistivity: 1014 OHM CM For ASTM D 876 Test Method, Continuous Operating Temperature: -55 To 125 DEG C, Minimum Shrink Temperature: 70 DEG C, Heat Shock: UL 224, No Cracking (250 DEG C/4 HR), Cable Range: 24 - 20 AWG, Nominal Recoveredi.d. (max.): 063 IN, Expanded I.d. (min.): 0.146, Elongation At Break: 600 PCT ASTM D 638, Elongation Of Break After Aging: 350 PCT For UL 224 Test Method, Cold Bend Test (-55c/4 Hours): No Cracking For UL 224 Test Method, Copper Corrosion: Pass For UL 224 Test Method, Chemical Resistance: Pass For UL 224 Test Method, Longitudinal Shrinkage: 0 Plus Or Minus 5 PCT For UL 224 Test Method, Eccentricity: 30 PCT For UL 224 Test Method, Normal Size: 1/8 IN, Package: Disk

MFR: Ideal Industries
MFR #: 46-603
UPC: 783250466030
Item #: 162695
