Hubbell Wiring Device - Kellems

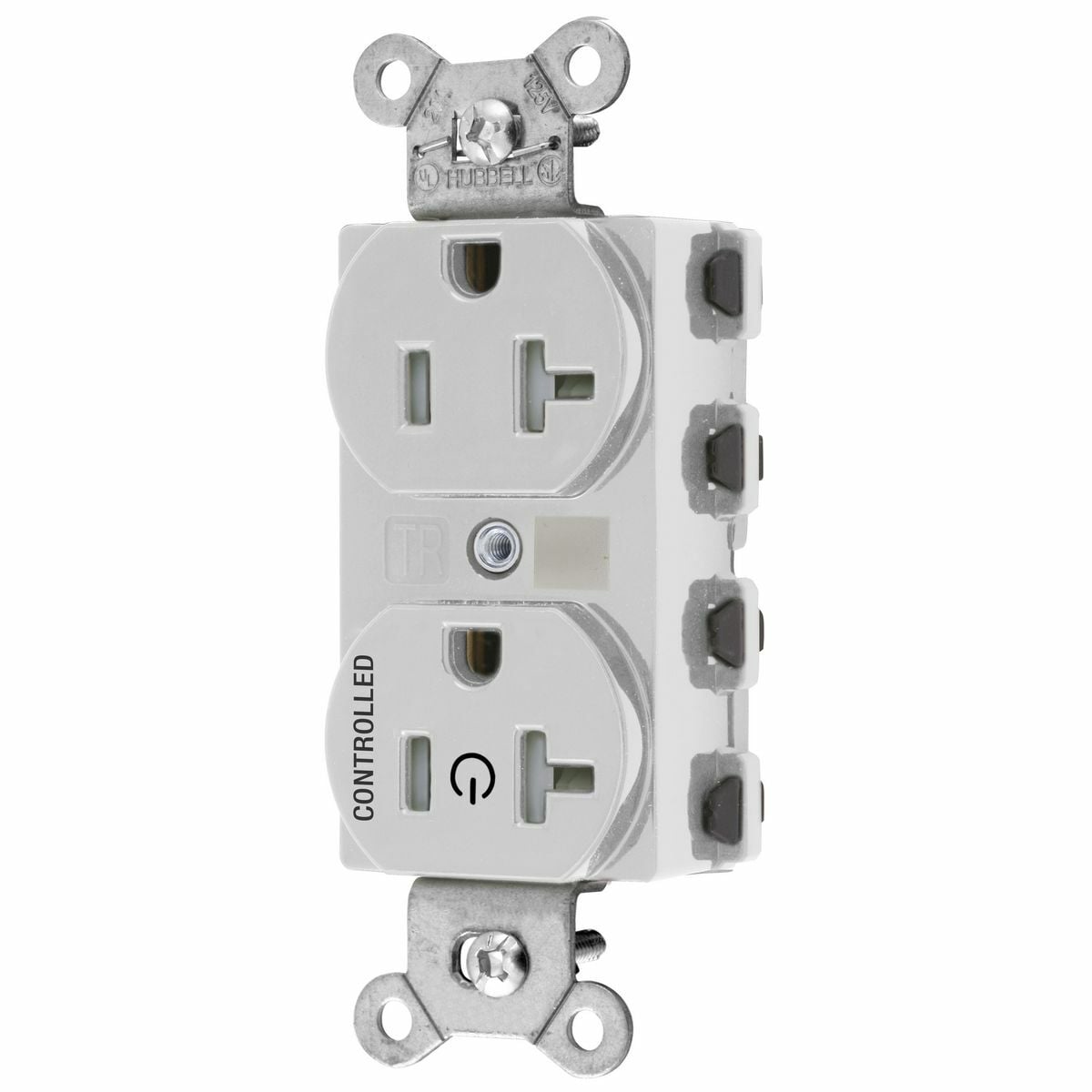

SNAP5362C1WTRA 1-Phase Controlled Face Duplex Extra Heavy Duty Grounding Standard Tamper-Resistant Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White

MFR:
Hubbell Wiring Device-Kellems
MFR #:
SNAP5362C1WTRA
UPC:
783585583464
Item #:
998692

Availability

Location Available Qty
Available Available to Order
$25.38 each

SNAPConnect Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnects modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnects modular design enables simple device change-out by maintenance personnel.

Manuals and Documentation
Catalog Number SNAP5362C1WTRA
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application SNAPConnect Permanently Marked
Color White
Connection Connectorized
Material Nylon
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire
Phase 1
Special Features One Controlled Face, Split Circuit Hot Tab
Standard Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186, ASHRAE Energy Efficiency Standard 90.1 2010;California Title 24 2013
UPC 783585583464
GTIN 00783585583464
Item Type Tamper-Resistant, One Controlled Face, Split Circuit
Size 3.28 in x 1.64 in x 1.1 in
Environmental Conditions Indoor Dry Unless Protected By Additional Means
Temperature Rating Maximum continuous 75 Degrees C, minimum -40 Degrees C (w/o impact)
Voltage Rating 125
Wattage 2,500 W
Wire Size #12 AWG
