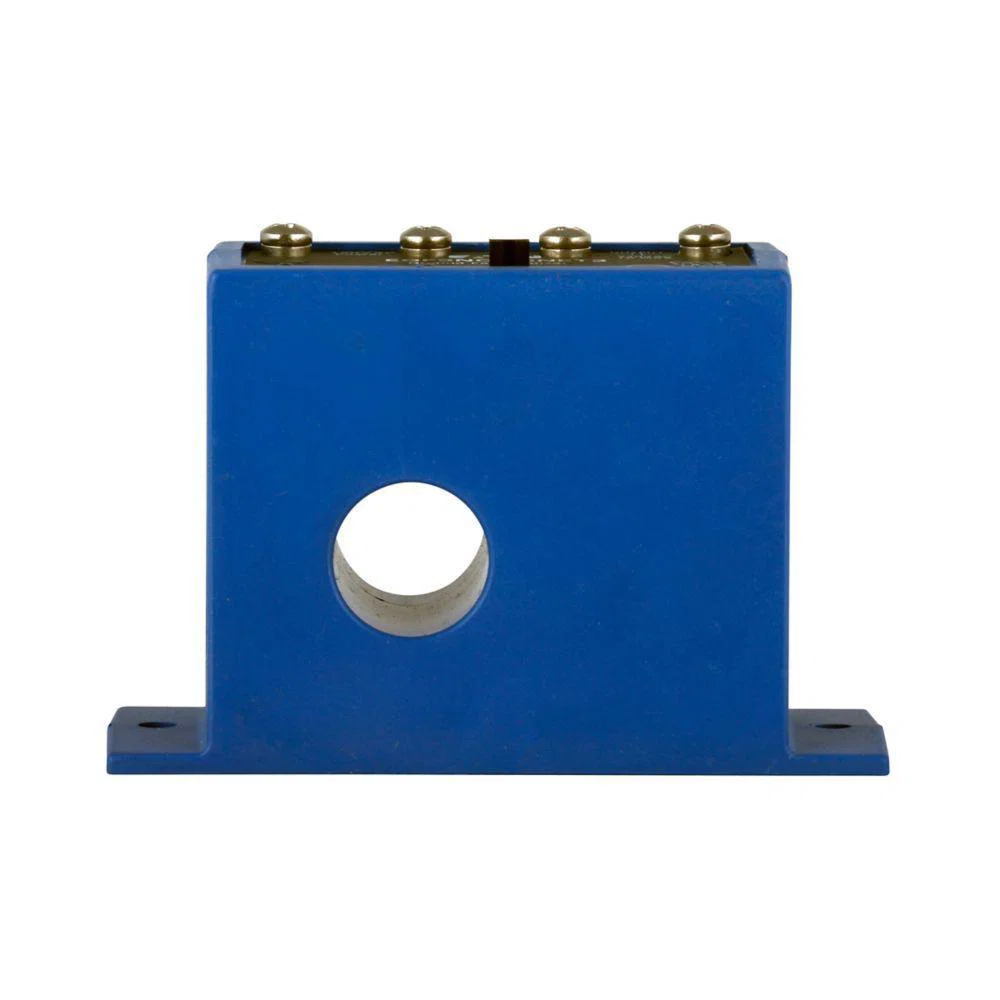

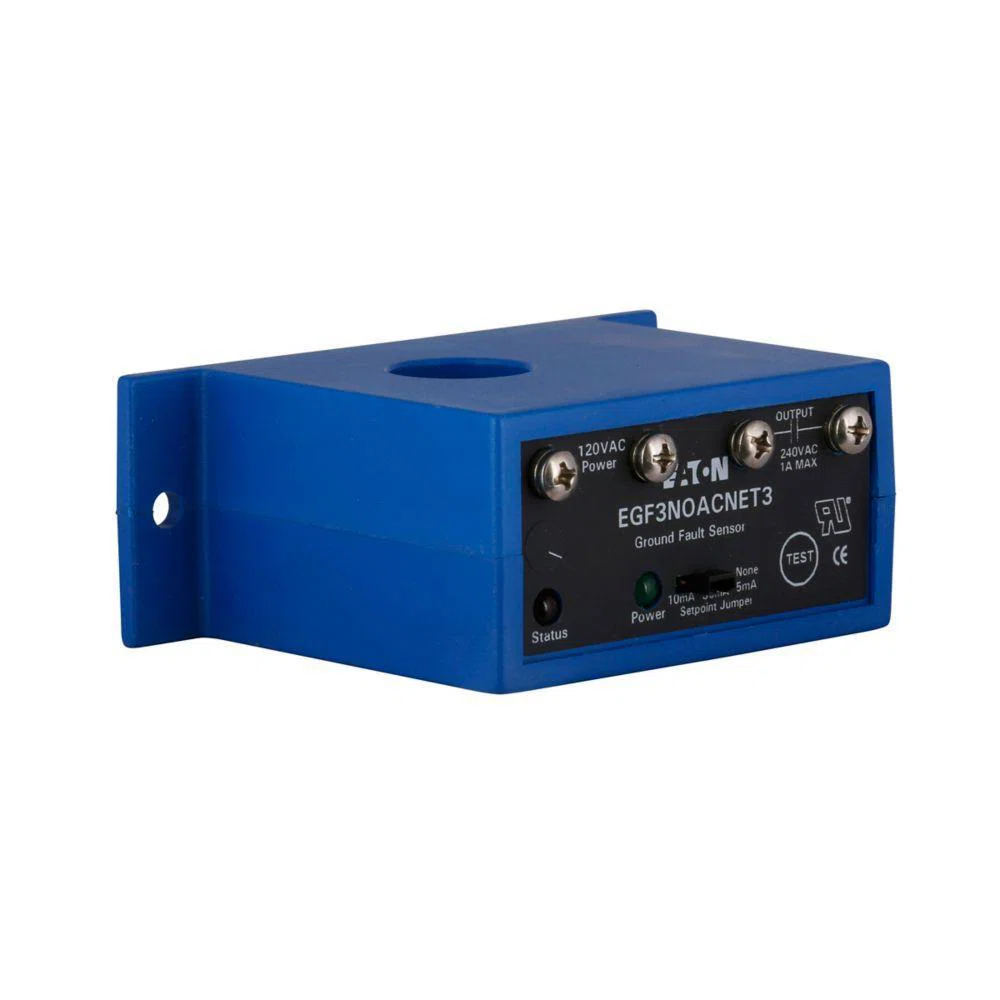

EGF3NOACNET3 CurrentWatch EGF Solid Core Housing Current Sensor, 15 to 200 ms Response, Solid State Relay Output, 120 V AC
- MFR:
- Eaton
- MFR #:
- EGF3NOACNET3
- UPC:
- 786685120829
- Item #:
- 998400
EGF3NOACNET3 CurrentWatch EGF Solid Core Housing Current Sensor, 15 to 200 ms Response, Solid State Relay Output, 120 V AC
- MFR #:
- EGF3NOACNET3
- UPC:
- 786685120829
- Item #:
- 998400
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
The CurrentWatch EGF Series from EATON electrical sector is a family of ground fault (earth leakage) sensors. Ground fault sensors help protect people, products and processes from damage by ground fault conditions by monitoring all current carrying conductors in grounded 1 and 3-phase delta or wye systems. The EGF Series with solid state outputs offers the benefit of reliable, long lasting solid state switches. Solid state design provides unlimited switch operating life, superior resistance to shock and vibration, zero off state leakage, high switch speeds and high input output isolation. The EGF Series with mechanical relay outputs is available in solid core housings with a choice of NO or NC SPST latching relays and a SPDT Form C relay with auto-reset.
Manuals and Documentation
Features
- Broad range of options to meet application needs no or NC, solid state or mechanical relays, normally energized or normally de-energized contacts
- Setpoint options maximize ease of use and application flexibility field selectable 5, 10 or 30 ma setpoints on the EGF "triset" models make user adjustments fast, sure and convenient
- Compatible with standard equipment application on single and three phase systems, ideal for use with shunt trip breakers, and magnetically isolated from monitored circuit and control power
| Manufacturer Part Number | EGF3NOACNET3 |
| Brand | EATON |
| Manufacturer | Eaton |
| UPC | 786685120829 |
| Country Of Origin | US |
| Amperage Rating | 1 A |
| Series | CurrentWatch EGF |
| Type | Solid Core Housing |
| Voltage Rating | 120 V AC |
| Size | 2.5 in H x 3.38 in W x 1.5 in D |
| Alternative Part Number | 9613066 |
| Manufacturer Item Status | Active |
| Country | USA |
| Warranty | 1 year |
| Standards Approvals | UL/CUL listed,RoHS Compliant |
| Application | Personnel Protection (Typically 5 mA), Equipment Protection (Typically 10 or 30 mA) and Regulatory |
| Connection Type | Screw Terminal |
| Environmental Conditions | 0 to 95% Non-Condensing Relative Humidity |
| Frequency Rating | 50 to 400 Hz |
| Operating Temperature | -4 to 122 deg F |
| Output Type | Solid State Relay |
| Response Time | 15 to 200 ms |
