O-Z/Gedney

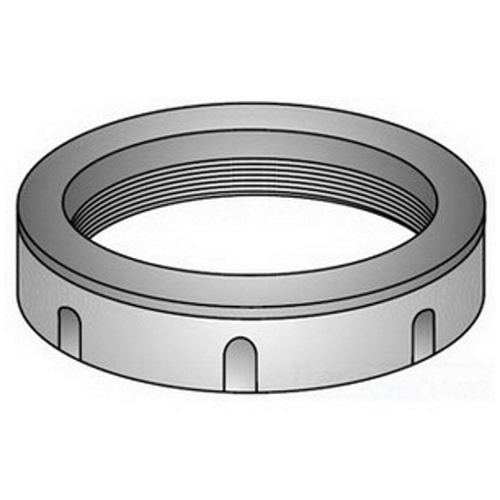

HB-200 Type HB Conduit Bushing, 2 in Trade, Malleable Iron, Hot Dipped/Mechanically Galvanized

MFR:
O-Z/Gedney
MFR #:
HB-200
UPC:
783126260106
Item #:
99790

Availability

Location Available Qty
Available Available to Order
$65.93 each
Manuals and Documentation
Catalog Number HB-200
Manufacturer O-Z/Gedney
Brand O-Z/Gedney
Country of Origin Mexico
Made in USA No
Application For Threaded Rigid Conduit And IMC
Connection Threaded
Finish Hot Dip Or Mechanically Galvanized
Material Malleable Iron
Special Features O-Z/Gedney specification grade insulated bushings help protect insulated conductors from abrasion during pulling or due to mechanical vibration; They also provide a voltage gradient between the live conductors and ground at the point where conductor insulation is subjected to electrical and mechanical stress; Molded-on high impact phenolic thermosetting insulation; Positive metallic conduit stop; Mechanically galvanized finish provides a plating thickness equivalent to hot-dip process, meeting ASTM A-153 performance criteria; Unlike the hot-dip process, mechanical galvanizing provides plating on all machined and/or threaded surfaces
Standard Third Party Certification: UL File Number E-11853, CSA 011584, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-408E, NEMA : FB-1
UPC 783126260106
GTIN 00783126260106
Item Type Type HB Insulated Bushing
Size 2
Temperature Rating 150 DEG C
