Panduit®

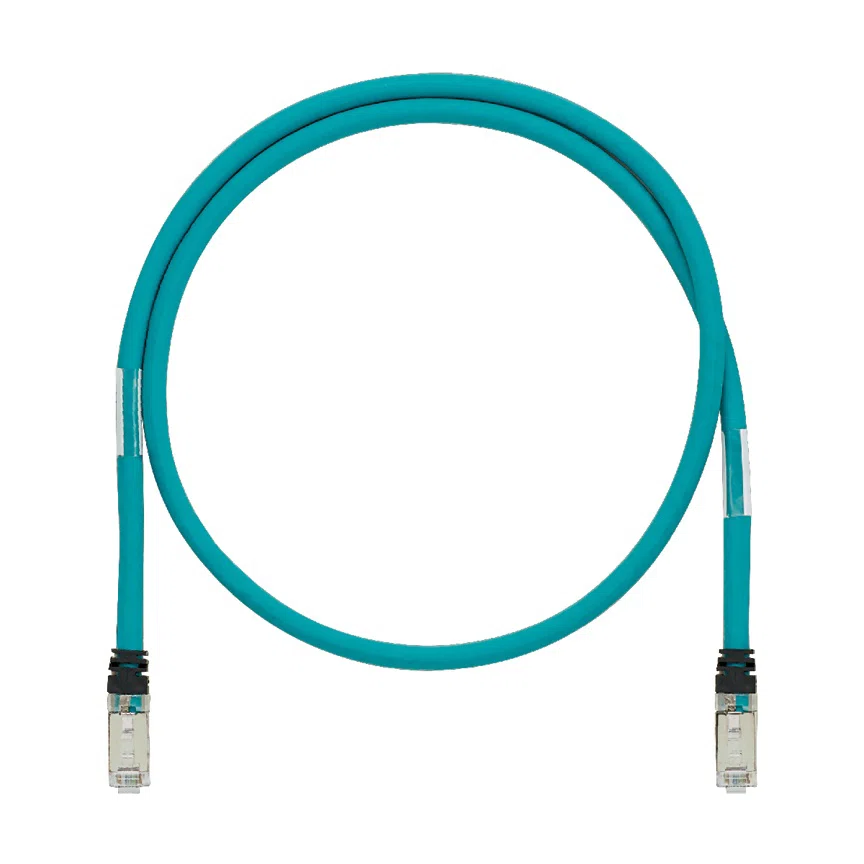

ISTPHCH10MTL IndustrialNet Class D Shielded Patch Cord, Cat 5e, 24 AWG SF/UTP Copper Conductor, Modular Plug Connector, 10 m L Cord

MFR:
Panduit
MFR #:
ISTPHCH10MTL
UPC:
074983848706
Item #:
995070

Availability

Location Available Qty
Available Available to Order
$79.35 each

Industrial patch cords shall be constructed of Cat 5E, industrial grade, 24 AWG stranded, twisted four-pair shielded SF/UTP cable with a flame retardant (CM) thermoplastic elastomer (TPE) jacket. Patch cord cable shall be offered in multiple colors and lengths for design flexibility. Each patch cord shall be pre-terminated to include Cat 5E RJ45 shielded modular plugs on each end, with a black strain relief boot and wired according to the T568A standard. Each patch cord is designed to support high-flex applications and is rated for 600 VAC panel or on machine applications when the space is shared with high voltage power cables.

Manuals and Documentation

Features

  • Color specific keys with positive and negative keying features
  • 100% performance tested
  • Centred de-embedded plug
  • Integral pair manager
  • Patented tangle-free latch
  • Slender strain relief boot
  • Robust construction
  • It is designed to support high flex applications and is rated for 600 V panel or on machine applications where space is shared with high voltage power cables
  • 100% performance tested
  • Robust construction
  • Provides identification of performance level, length and quality control number for future traceability
  • Patented tangle-free latch on modular plugs
  • Meets individual length requirements for greater system flexibility
  • Jack module black plug
Manufacturer Part Number ISTPHCH10MTL
Brand Panduit®
Manufacturer Panduit
UPC 074983848706
EAN 0074983848706
Country Of Origin CR
Cord Length 10 m
Jacket Color Teal
Voltage Rating 600 V AC
Alternative Part Number 12369459 | 12369474
Manufacturer Item Status Active
Country USA/Canada
Standards Approvals ANSI/TIA 568-C.2/968-A | ARRA Compliant | Buy American Act Compliant | CE Certified | CM Flammability Rating | IEC 60603-7 | IEEE 802.3af/802.3at | ODVA Approved | PoE Compliant | RoHS Compliant | UL File No. 1685/1863/2463 | AWM 2463/1685 | CE Marking | UL 1863 | CSA Approved
Application 10BASE-T (Ethernet), 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), Industrial Ethernet, Ethernet/IP, Control Panel Deployments Featuring Power Source Voltages, Uplinks Featuring Gigabit Data Transmission from The Control Panel to The Consolidation Point and High Flex Like Robotic
Conductor Size 24 AWG
Series ISTPHCH
Temperature Rating 158 deg F
Type Class D Shielded
Category Type Cat 5e
Color Teal
Conductor Type SF/UTP Copper
Connector Type Modular Plug
Jacket Material Thermoplastic Elastomer
