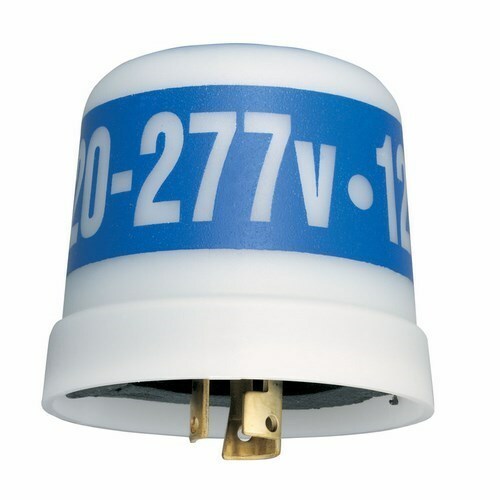

LC4536LAC LC4500 Locking Mounting Thermal Photocontrol, 120 to 277 V AC, 1800 to 4155 W Tungsten, 1000 to 2290 VA Ballast, Fixture Mount, Polypropylene
- MFR:
- Intermatic
- MFR #:
- LC4536LAC
- UPC:
- 078275029569
- Item #:
- 99440
LC4536LAC LC4500 Locking Mounting Thermal Photocontrol, 120 to 277 V AC, 1800 to 4155 W Tungsten, 1000 to 2290 VA Ballast, Fixture Mount, Polypropylene
- MFR #:
- LC4536LAC
- UPC:
- 078275029569
- Item #:
- 99440
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$25.40
each
These photocontrols install on light fixtures with ANSI C136.10 NEMA receptacles commonly found on street light fixtures. Locking type design facilitates fast installation and replacement of photocontrol.
Manuals and Documentation
| Catalog Number | LC4536LAC |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Dusk to Dawn Lighting Control |
| Connection | Lock Type |
| Frequency Rating | 50/60 HZ |
| Mounting | Twistlock Mount |
| Sensitivity | 0.5 FC (Minimum) ON, 15 FC (Minimum) OFF |
| Sensor | Thermal Type Photo Control (Cadmium Sulfide) |
| Special Features | Features: Cadmium Sulfide Photocell, Polypropylene Housing with UV Protection, 2400 Volt Open Type Spark Gap Arrester |
| Standard | UL Recognized, CSA, Title CA 20 Listed, California Title 24 Compliant |
| Supply Voltage | 120 - 277 VAC |
| UPC | 078275029569 |
| GTIN | 00078275029569 |
| Item Type | TwistLock Photocell |
| Size | 3 DIAMETER X 2-3/4 HEIGHT IN, 7.6 DIAMETER X 7 HEIGHT CM |
| Operating Temperature | -20 to +104 DEG F, -29 to +40 DEG C |
