Wiremold®

6ATC2PAVAA Evolution 6AT Pre-Wired Recessed Poke-Through Assembly With Surface Style Cover, 6 in Hole, 3 Gangs, Plastic/Steel

MFR:
Legrand
MFR #:
6ATC2PAVAA
UPC:
786564096313
Item #:
993012

Availability

Location Available Qty
Available Available to Order
$1,026.20 each

Designed for retrofit and new construction, Evolution™ series 6 in recessed poke-thru devices provide convenient access to power, communications and audio/video services recessed below floor level providing maximum device protection. With 3-gangs of capacity, you will be able to configure services for the needs of your space. The low profile metal covers are available in brushed aluminum, satin brass, satin nickel andmultiple powder-coated finishes designed to match any space. Evolution™ series 6 in poke-thru devices are the perfect fit for kiosks, meeting rooms, training rooms, classrooms, healthcare facilities or commercial buildings with open-space architecture. For carpet, tile, wood and laminate concrete floor coverings.

Manuals and Documentation

Features

  • Pre-wired assembly save on labor with a completely assembled, Pre-wired poke-thru with every power receptacle already installed
  • Recessed devices provide maximum protection - all power, communications and AV devices are recessed below floor level, providing maximum protection and device longevity
  • Step-on-it installation - quick and easy installation without the need for additional fasteners or a second installer
  • The cover opens a full 180 deg with two unique spring-loaded slide egress doors to keep wires, connections and people safe
  • Flush tile version cover assemblies - a flush style cover for tile applications allows the Evolution™ series poke-thru devices to be adjusted to the same level as the top surface of the floor covering
  • Open system for expanded compatibility - accepts industry standard power, communications and A/V devices from most manufacturers including Legrand AVIP, Extron® and more
  • Plug load control up to 30 ft - tested with Pass & Seymour® wireless RF receptacles to control plug loads up to a distance of 30 ft when the cover is closed
  • Evolution™ series poke-thru devices use an intumescent material that maintains the fire rating of any floor for up to 2 hr
Manufacturer Part Number 6ATC2PAVAA
Brand Wiremold®
Manufacturer Legrand
UPC 786564096313
Country Of Origin US
Color Brushed Aluminum
Depth 16-3/4 in
Finish Powder Coated
Length 7-1/4 in
Material Plastic/Steel
Series Evolution™ 6AT
Suitable For Use With Carpet, Tile, Wood, Terrazzo, Polished/Finished Concrete Floor
Type Pre-Wired Recessed
Width 7-1/4 in
Alternative Part Number 14310843
Manufacturer Item Status Active
Country USA/Canada
Standards Approvals ARRA Compliant | Buy American Act Compliant | cULus Listed File No. E2961 Guide QCIT | cULus Listed File No. R8209 Guide CEYY | Article No. 300.21, 300.22 314 NEC | ADA Standard 4.5 | RoHS Compliant
Application Commercial Office, Education, Healthcare, Hospitality, Entertainment, Retail, Kiosks, Meeting Rooms, Training Rooms, Classrooms, Commercial Buildings with Open Space Architecture, Commercial Kitchen, Wet/Damp Locations Applications

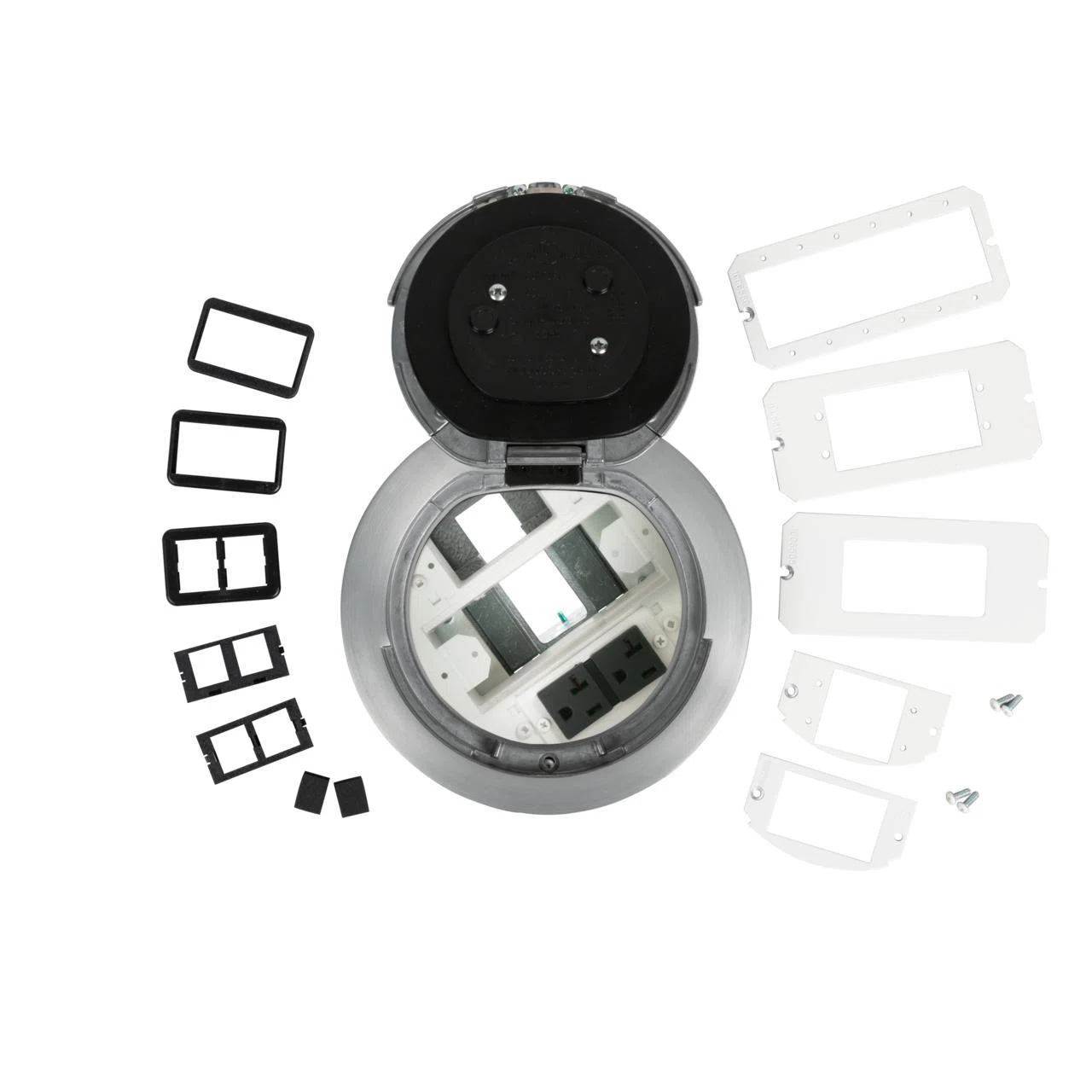

Includes (1) Pre-Wired, Pre-Installed Proprietary 20 A Duplex Receptacle, (1) 682A, (2) 68MAAP Device Plate, (1) 6DEC, (1) 6AAP Mounting Plate, (1) 5BLH 1/2-Gang Blank Housing, (1) 1PTHA 1-Gang Pass-Through Housing Assembly, (1) 575CHA 1/2-Gang 3/4 in Conduit Housing Assembly, Junction Box
Cover Material Die Cast Aluminum
Device Type Fire-Rated
Hole Size 6 in
Knockout Size 3/4 in
Number Of Gangs 3
