Discontinued
Hubbell Wiring Device - Kellems

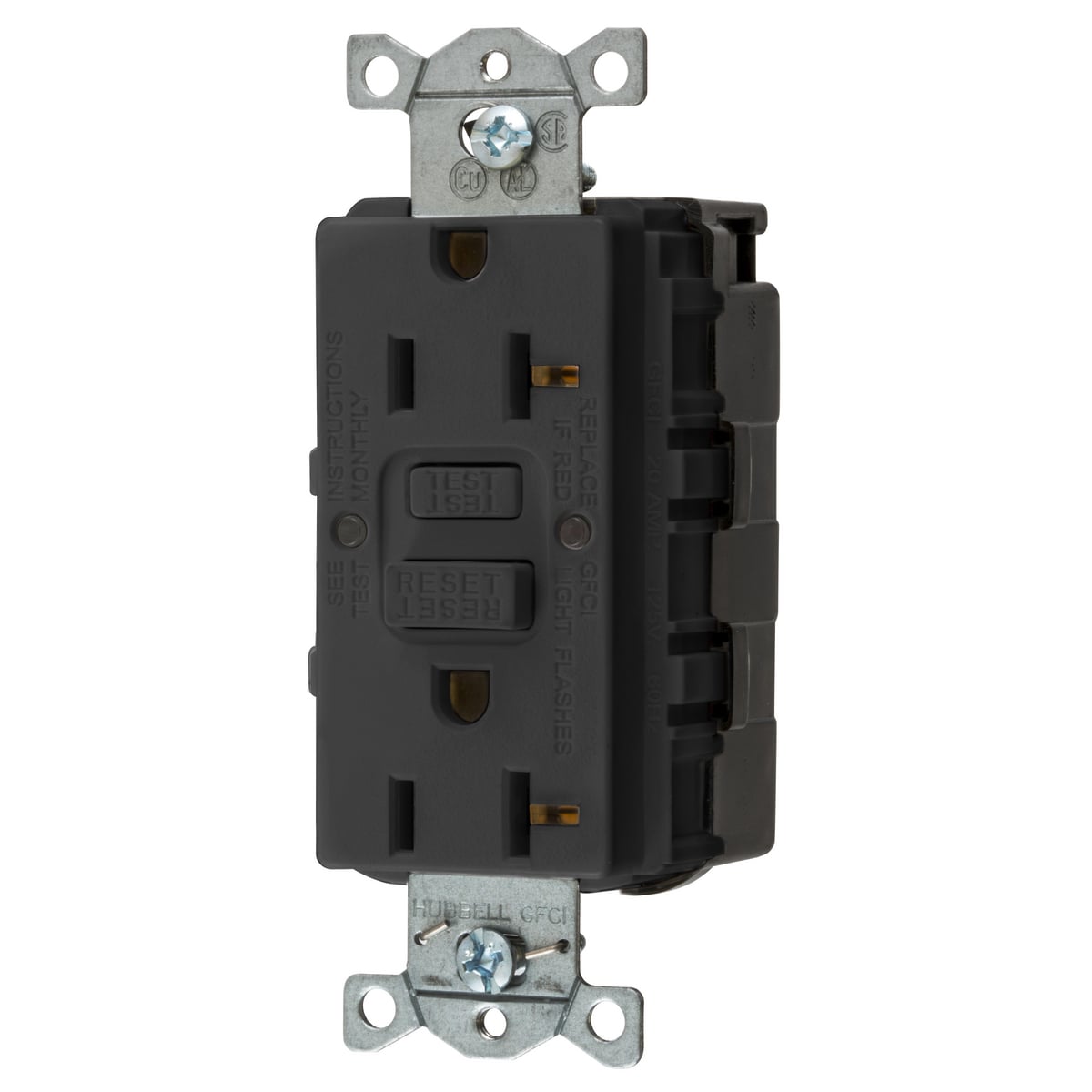

GFRST20SNAPBK 1-Phase Duplex Heavy Duty Insulated Self-Test Standard Screw Mount GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black

MFR:
Hubbell Wiring Device-Kellems
MFR #:
GFRST20SNAPBK
UPC:
883778124518
Item #:
989029

Availability

Location Available Qty
Available Available to Order

AUTOGUARD Self Test Technology 1st introduced by Hubbell over 10 years agoself test monitoring now required in 2015 UL 943 GFCI Safety Standard Hubbell AUTOGUARD GFCI receptacles continually test and monitor for people protection capability automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.

Manuals and Documentation
Catalog Number GFRST20SNAPBK
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 20
Application Commercial Grade
Color Black
Connection Pre-Wired Connector
Insulation Insulated per UL
Material Nylon
Mounting Screw
NEMA Rating 5
Number of Wires 3
Phase 1
Special Features SNAP Connect, Self Grounding, AUTOGUARD Self test Technology
Standard Meets All NEC® Requirements
UPC 883778124518
GTIN 00883778124518
Item Type Standard
Size 3.28 in x 1.77 in x 1.47 in
Environmental Conditions Dry Indoors unless Protected by Additional Means
Temperature Rating -40 Degrees C to 75 Degrees C
Voltage Rating 125
Wattage 1,875 W
Wire Size #12 AWG
