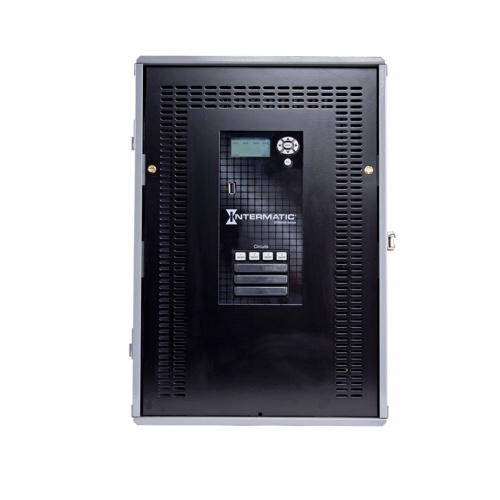

ET90415CR ET90000 Astronomic Electronic Timer Switch, 1 sec to 365 days Setting, 120/277 V AC, 1, 2 hp, 1CO 1 Form C SPDT Contact, 1 Poles
- MFR:
- Intermatic
- MFR #:
- ET90415CR
- UPC:
- 078275124912
- Item #:
- 98882
ET90415CR ET90000 Astronomic Electronic Timer Switch, 1 sec to 365 days Setting, 120/277 V AC, 1, 2 hp, 1CO 1 Form C SPDT Contact, 1 Poles
- MFR #:
- ET90415CR
- UPC:
- 078275124912
- Item #:
- 98882
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$1,350.31
each
The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience and included capability of a 2 hour override. The PC App and Mobile App provide real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates. These products can be used to help meet Title 24 requirements.
Manuals and Documentation
| Catalog Number | ET90415CR |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | 4 x SPDT |
| Amperage Rating | 20 |
| Application | General Purpose, Lighting, HVACR |
| Connection | Wire Lead |
| Contact Configuration | 1 NO/1 NC |
| Contact Rating | 30 AMP @ 12 - 240 VAC (General Purpose and Resistive NO Only), 20 AMP @ 12 - 240 VAC (General Purpose and Resistive NO), 10 AMP @ 12 - 240 VAC (General Purpose and Resistive NC), 20 AMP @ 28 VDC (General Purpose and Resistive NO), 10 AMP @ 28 VDC (General Purpose and Resistive NC), 20 AMP @ 120 - 277 VAC (Ballast NO), 3 AMP @ 120 - 277 VAC (Ballast NC), 5 AMP @ 12 - 240 VAC (Tungsten NO Only) |
| Enclosure | Type 3R Steel |
| Mounting | Wall |
| Number of Poles | 1 |
| Special Features | Features: Automatically Detects Input Voltages between 120 and 277 VAC, Up to 4000 Events Plus Holidays Scheduling, Ethernet Capable for Upgrading Firmware and Networking Time Switches and PC Tools, Easy-to-Follow on-Screen Menu, Password Protection, Firmware Upgradeable, Schedule Review Mode, Saved Activity Log, 3 Year Warranty |
| Standard | cULus Listed, cCSAus Certified, California TITLE 24 Compliant, HVACR, Title CA 20 Listed |
| UPC | 078275124912 |
| GTIN | 00078275124912 |
| Item Type | Astronomic Electronic |
| Size | 17.9 HEIGHT X 12.7 WIDTH X 5.4 DEPTH IN, 454 HEIGHT X 322 WIDTH X 138 DEPTH CM |
| Operating Temperature | -40 to +120 DEG F, -40 to +50 DEG C |
| Timing Range | 1 S - 365 DAYS |
| Voltage Rating | 120 - 277 |
| Cross Reference Products | DLC400BP, DTS400B |
