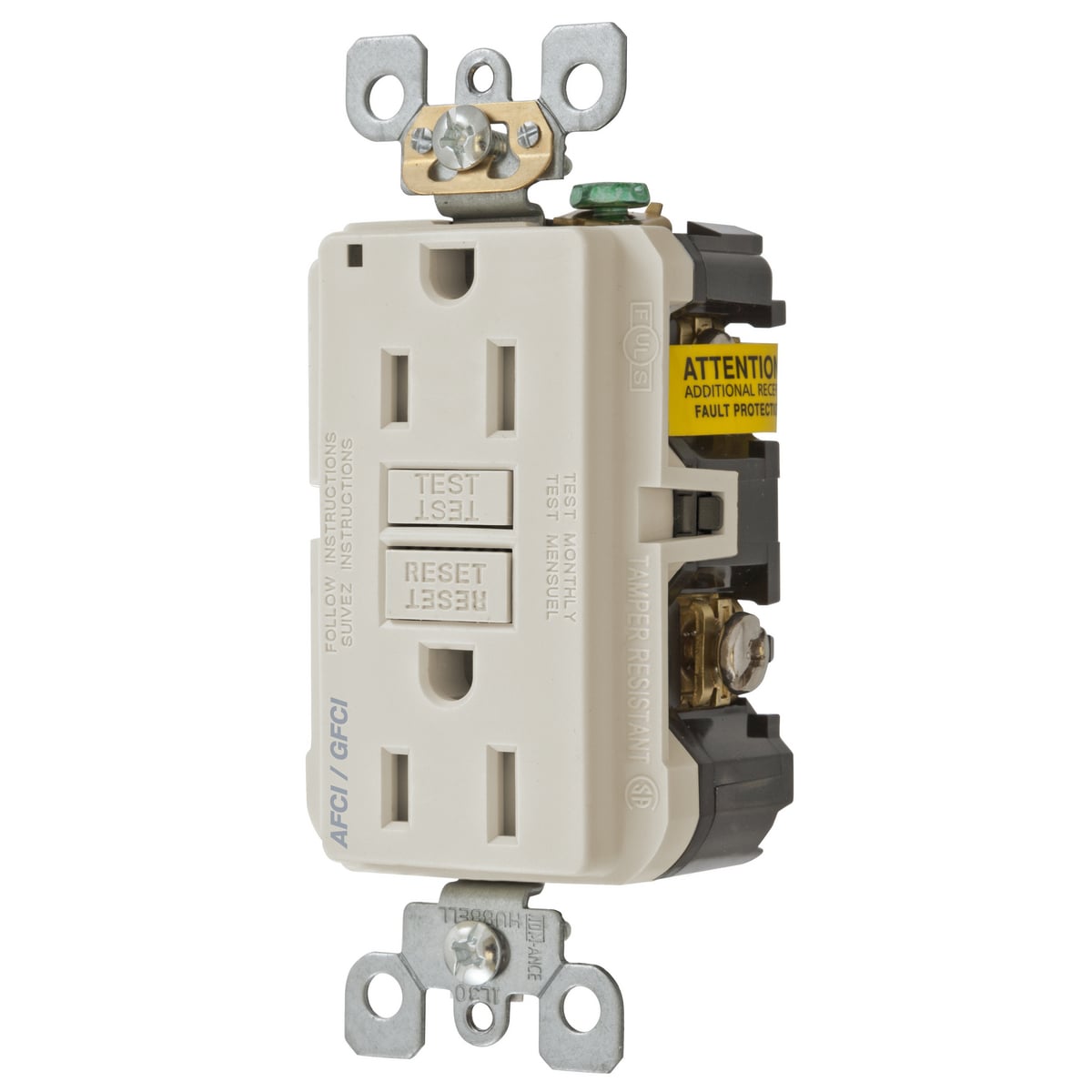

AFGF15TRLA Autoground Clip Tamper Resistant Standard AFCI/GFCI Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, Light Almond

MFR:
Hubbell Wiring Device-Kellems
MFR #:
AFGF15TRLA
UPC:
883778430022
Item #:
987790

Availability

Location Available Qty
Available Available to Order

Ground Fault and Arc Fault Protection in ONE Device - Provides people protection from harmful ground faults by limiting the level of leakage current available. Detects potentially hazardous electrical arcing in a circuit and interrupts power upon recognition. Compliant to National Electric Code (NEC) - NEC section 210.12 requires arc fault circuit interrupting protection in dwelling units, dormitory units and on dwelling unit branch circuits that are extended or modified. Dwelling units include all 120 volt, single phase, 15 and 20 ampere branch circuits supplying outlets in dwelling unit kitchens, family rooms, dining rooms, living rooms, libraries, dens, bedrooms, laundry rooms and similar living areas. Compliant to NEC 406.4 as a replacement for ungrounded receptacles for both AFCI and GFCI protection. Application Advantage versus Dual Function Breaker - Dual Function AF/GF Receptacle provides localized test/reset access and clear indication of power, trip or end of life condition. Cost effective and easy to install.

Manuals and Documentation
Catalog Number AFGF15TRLA
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin China
Made in USA No
Amperage Rating 15
Application Electrical Safety
Connection Terminal Screws
Material Composite
Mounting Screw
NEMA Rating 5
Number of Poles 2
Number of Wires 3-Wire Grounding
Special Features Standard Product
Standard UL/CSA
UPC 883778430022
GTIN 00883778430022
Item Type Duplex Receptacle
Size Standard Sized Product
Environmental Conditions Indoor Dry Unless Protected by Additional Means
Voltage Rating 125
Wattage 1875 W
Wire Size #14AWG to #10AWG
