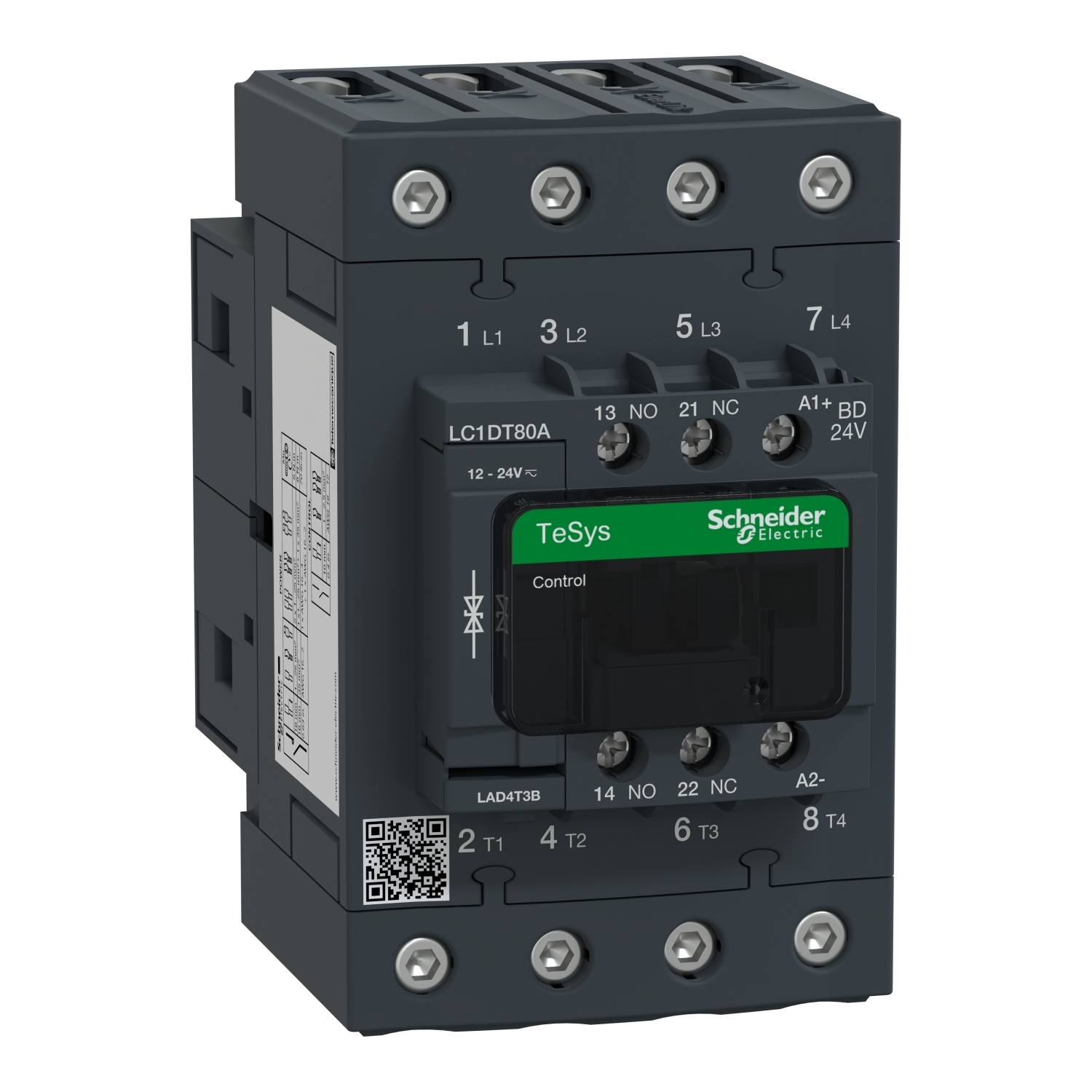

LC1DT80ABD TeSys D Contactor With Front Cover, 24 V DC V Coil, 80 A, 4NO Contact, 4 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1DT80ABD
- Item #:
- 9877
LC1DT80ABD TeSys D Contactor With Front Cover, 24 V DC V Coil, 80 A, 4NO Contact, 4 Poles
- MFR #:
- LC1DT80ABD
- Item #:
- 9877
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
TeSys Deca contactor, 4 poles (4NO), 80A/690V AC-1, for non-inductive load applications. They can be used to create motor starters for almost any type of application. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60C, it procures high reliability and durability. Compact (70mm width), DIN-rail mounting or screw fixing. Power contacts have a 80A resistive load rating. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 4.80 inches tall, 2.76 inches wide and 4.72 inches deep. It weighs 2.70 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards.
Manuals and Documentation
| Catalog Number | LC1DT80ABD |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=8695103&lang=en-us |
| GTIN | 03389119409360 |
