Discontinued
Square D

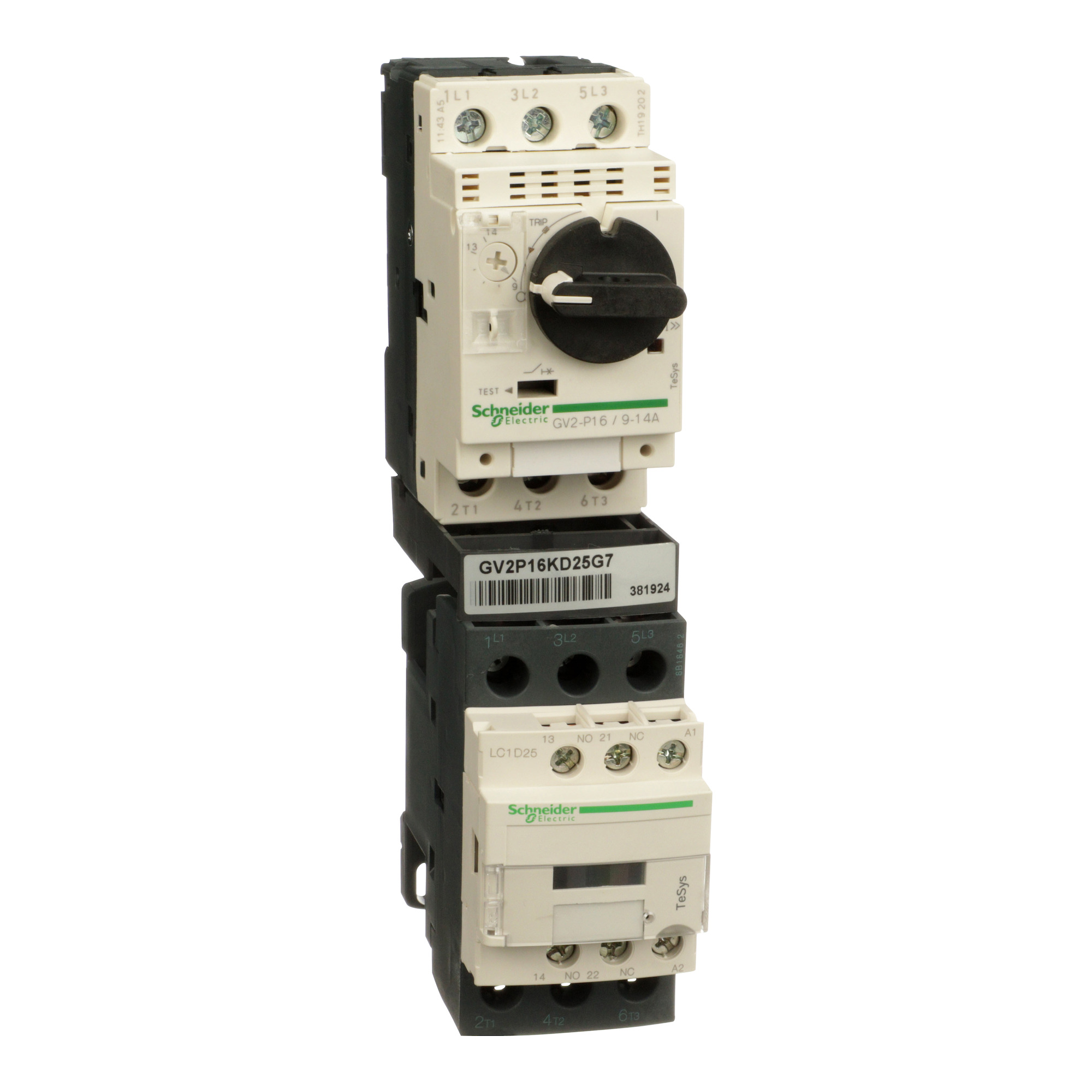

GV2P16KD25G7 TeSys Motor Starter With Safety Cover, 120 VAC V Coil, Direct On-Line Contactor Action, 3 Poles, IP20 Enclosure

MFR:
Schneider Electric
MFR #:
GV2P16KD25G7
Item #:
987396

Availability

Location Available Qty
Available Available to Order
$143.30 each

TeSys GV manual self protected combination starters meet the requirements of UL 508 Type F, see UL File E164871. Manual motor starter consists of a GV2P16 motor starter protector and a LC1D25G7 IEC contactor assembled together into one device. The GV2P16 high performance manual starter with a rotary handle offers a high withstand rating and visible trip indication. The GV2P16 provides trip on overload, short circuit, undervoltage, or shunt trip. It has a 9.0 to 14.0 A thermal setting. The LC1D09B7 IEC contactor is rated 9 amperes and has a 24 VAC 50/60 Hz coil.

Manuals and Documentation
Catalog Number GV2P16KD25G7
Manufacturer Schneider Electric
Brand Square D
Country of Origin Unknown
Made in USA No
Application Motor control;resistive load
Coil Voltage 120 V AC 50/60 Hz
Connection Control circuit screw clamp terminals 1 1-4 mm²flexible without cable end;control circuit screw clamp terminals 2 1-4 mm²flexible without cable end;control circuit screw clamp terminals 1 1-4 mm²flexible with cable end;control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end;control circuit screw clamp terminals 1 1-4 mm²solid without cable end;control circuit screw clamp terminals 2 1-4 mm²solid without cable end;power circuit screw clamp terminals 1 2.5-10 mm²flexible without cable end;power circuit screw clamp terminals 2 2.5-10 mm²flexible without cable end;power circuit screw clamp terminals 1 1-10 mm²flexible with cable end;power circuit screw clamp terminals 2 1.5-6 mm²flexible with cable end;power circuit screw clamp terminals 1 1.5-10 mm²solid without cable end;power circuit screw clamp terminals 2 2.5-10 mm²solid without cable end; screw clamp terminals 2 1-6 mm² solid; screw clamp terminals 2 1.5-6 mm² flexible without cable end; screw clamp terminals 2 1-4 mm² flexible with cable end
Contact Configuration 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1
Mounting Din Rail
Operating Cycles 25...400 Hz
Special Features Without built-in suppressor module
Standard UL;BV;RINA;GOST;DNV;LROS (Lloyds register of shipping);CCC;GL;CSA;CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=467172367&lang=en-us
GTIN 03606486287958
Item Type Motor starter;Direct on-line contactor
