SQUARE D

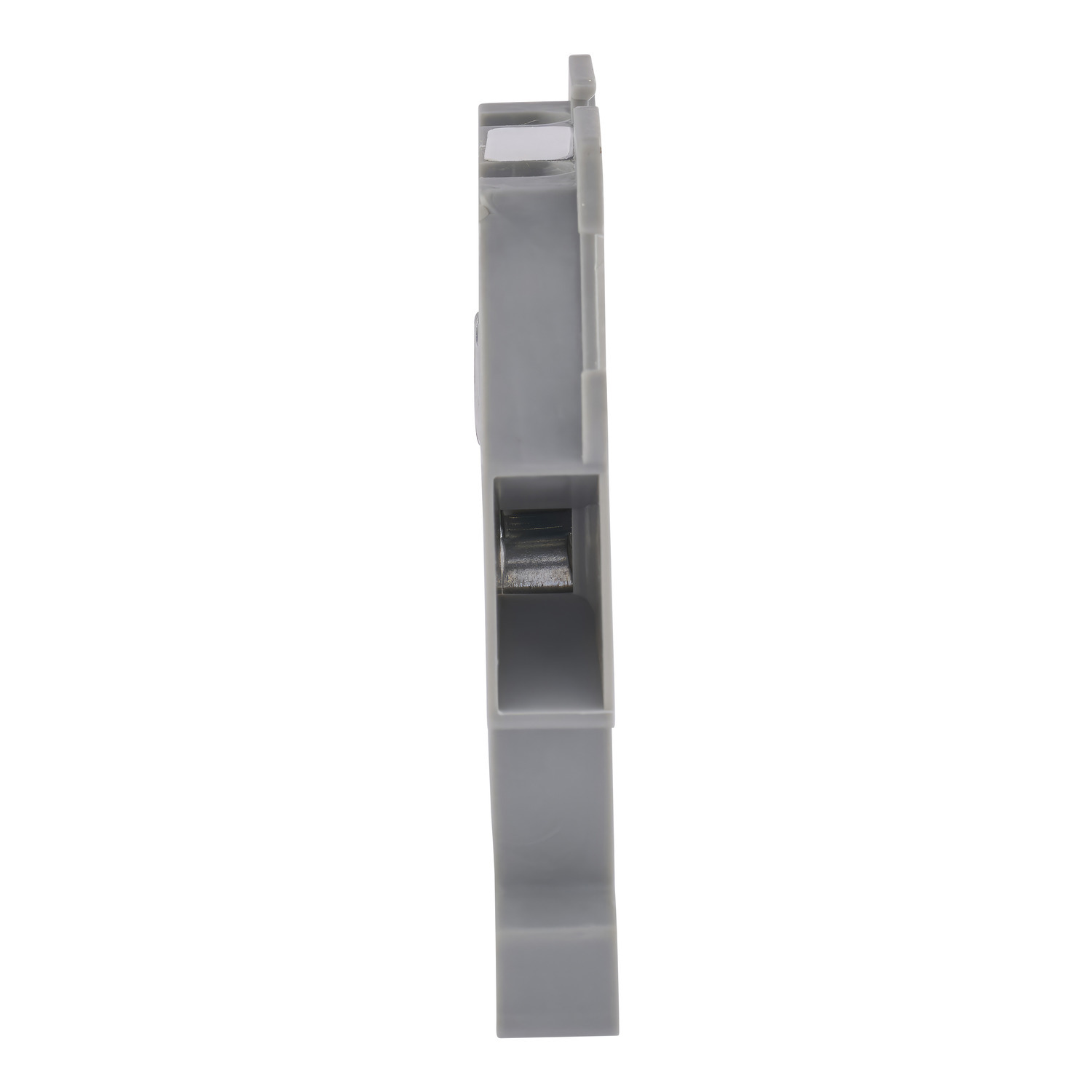

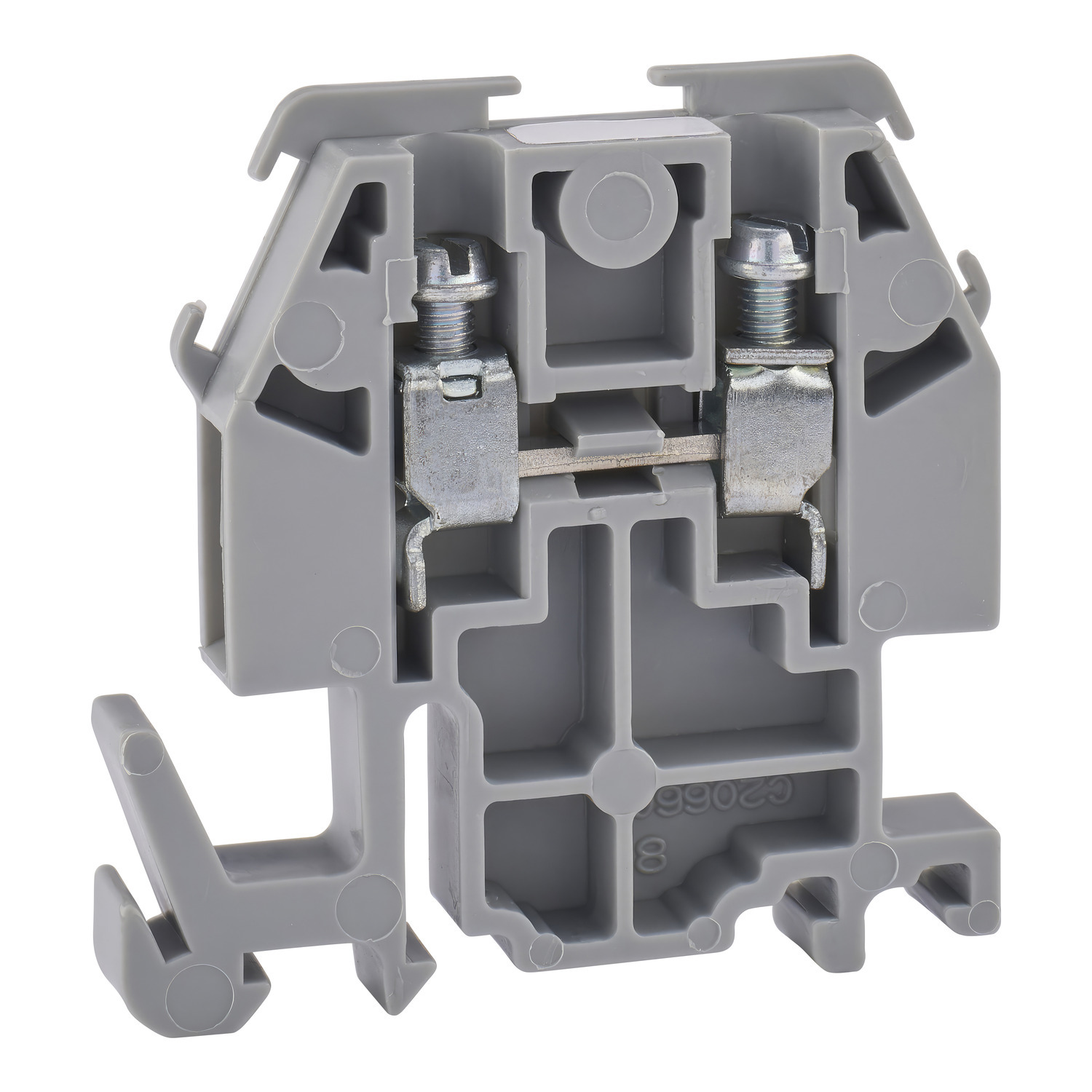

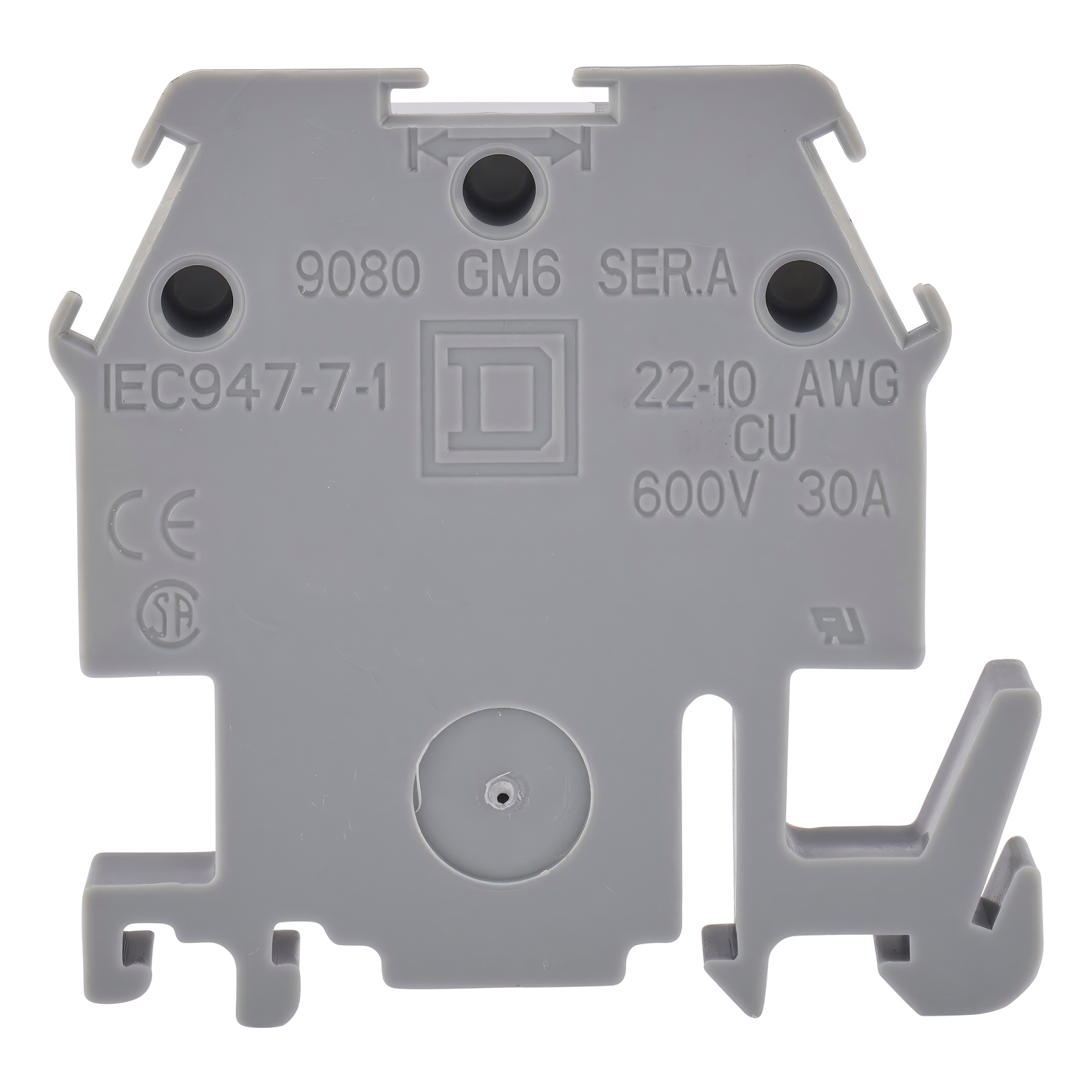

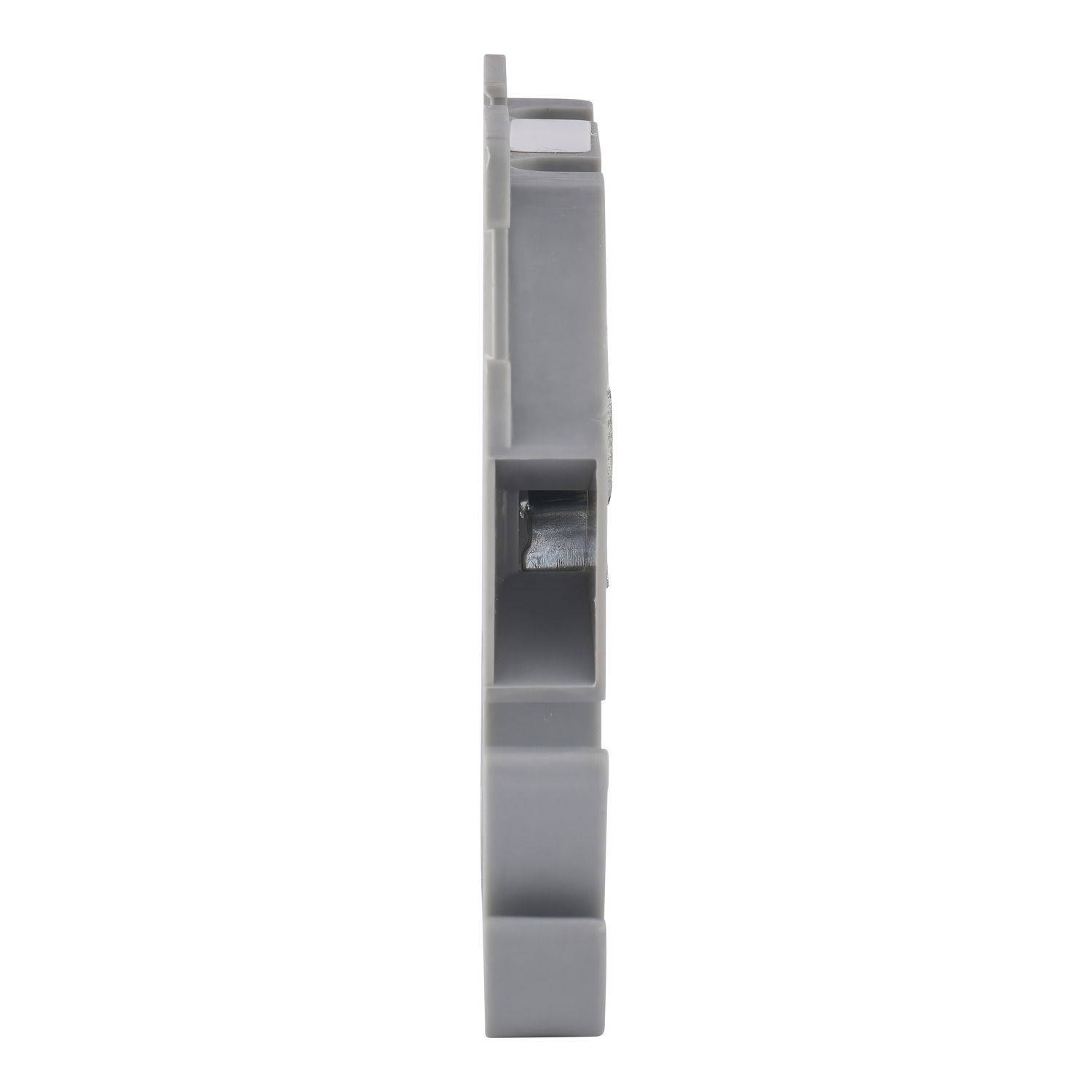

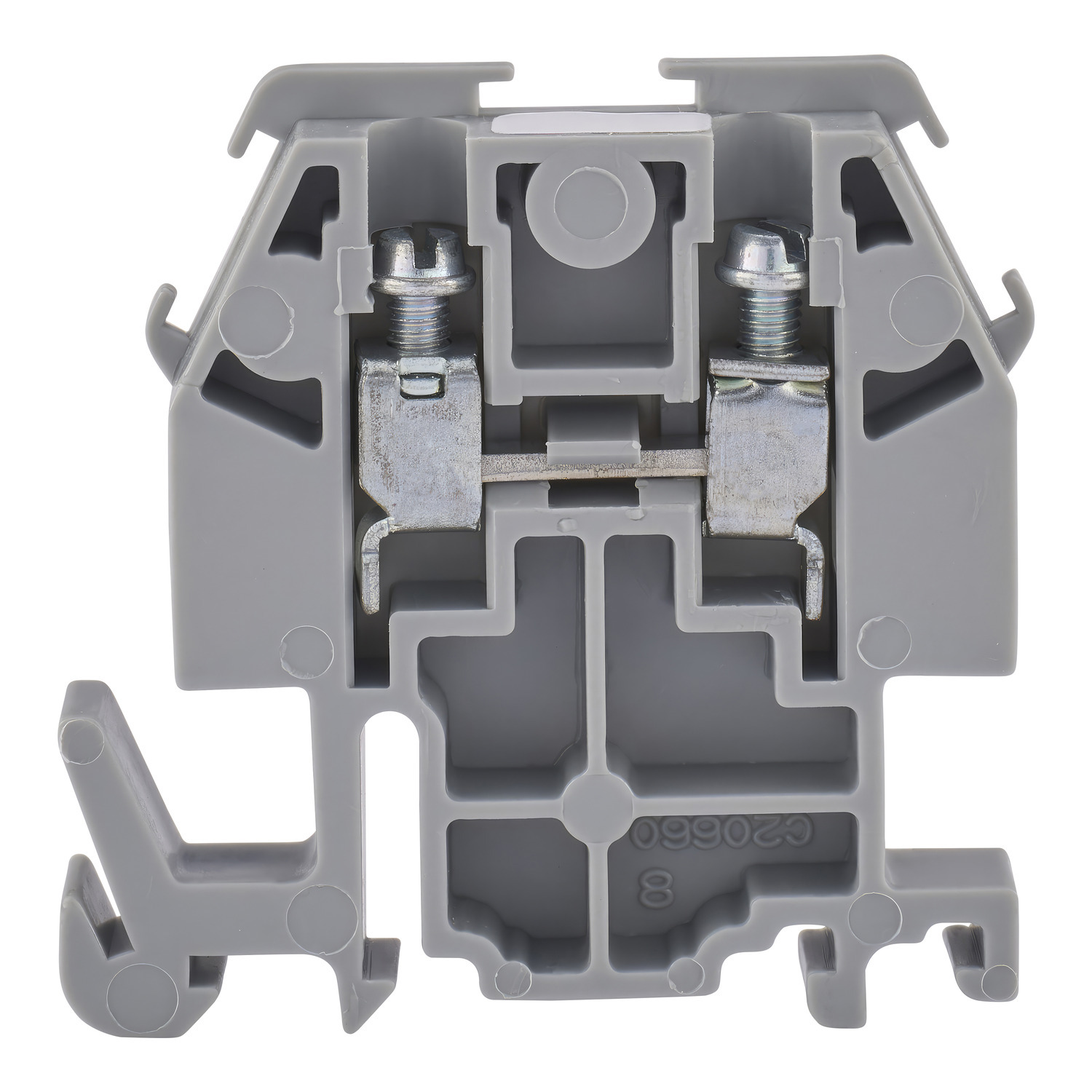

9080GME6 Type G Fingersafe Terminal Block, 600 V AC/DC, 30 A, 22 to 10 AWG Copper Wire, DIN Rail Mount

MFR:
Schneider Electric
MFR #:
9080GME6
UPC:
785901743286
Item #:
9851

Availability

Location Available Qty
Available 8 ea
$3.38 each

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 # 10 AWG, 1 #12 AWG, 1 #14 AWG, 1 or 2 #16 AWG, 1 or 2 #18 AWG, 1 to 5 #20 AWG or 1 to 8 #22 AWG wires. The nylon block is molded in grey. This block is UL component recognized and CSA certified for up to 30 ampere up to 600 VAC or VDC.

Manuals and Documentation
Catalog Number 9080GME6
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372441&lang=en-us
UPC 785901743286
GTIN 00785901743286
Width 1.72
Width UOM Inch
Height 1.82
Height UOM Inch
Depth 0.235 IN
