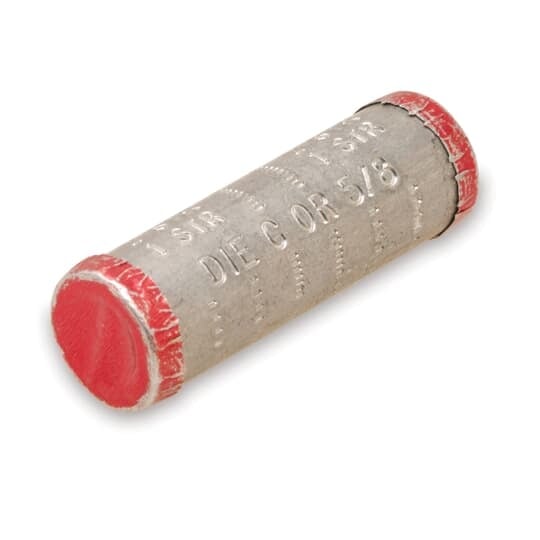

CS78 Blackburn CS Series Basic Non-Insulated Service Entrance Splice, 1/0 AWG ACSR/Stranded Conductor, Die Code: 5/8, 2 in L, Aluminum
- MFR:
- ABB - Installation Products
- MFR #:
- CS78
- UPC:
- 783786101085
- Item #:
- 98180
CS78 Blackburn CS Series Basic Non-Insulated Service Entrance Splice, 1/0 AWG ACSR/Stranded Conductor, Die Code: 5/8, 2 in L, Aluminum
- MFR #:
- CS78
- UPC:
- 783786101085
- Item #:
- 98180
Availability
| Location | Available Qty |
|---|---|
| Available | 139 ea |
$1.95
each
Manuals and Documentation
| Catalog Number | CS78 |
| Manufacturer | ABB - Installation Products |
| Brand | BLACKBURN MECHANICAL |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Basic, uninsulated Splices for Service Entrances. For Combinations of Aluminum-to-Aluminum or Aluminum-to-Copper Conductors |
| Conductor Range | End A: 1/0 ACSR , 1/0 STR End B: 1/0 ACSR , 1/0 STR |
| Connection | Compression |
| Material | Aluminum |
| Number of Conductors | 2 |
| Special Features | Constructed from Aluminum for High Conductivity. Solid Center Barriers and large Chamfers for easy cable insertion. Prefilled with Oxide Inhibitor to prevent oxidation and keep out moisture. All Splices are color coded and marked with strip lengths, installation die codes and compression locations, providing easy identification for easy installation |
| Standard | RUS Accepted. Complies with ANSI C119.4 when properly installed on Aluminum-to-Aluminum or Aluminum-to-Copper Conductors |
| UPC | 783786101085 |
| GTIN | 00783786101085 |
| Item Type | Compression Splice Service Entrance |
| Size | 2 Inch |
| Environmental Conditions | All Seasons / Conditions |
| Cross Reference Products | ABBInstall CS78|ABBInstall U1B1010|ALCOA 1367|Burndy YSU25R25R|ESP ACS1/01/0|Frankel ARG1/01/0|Kearney 30198|NAED 14398|Nicopress 3200|PennUnion PSK00 |
