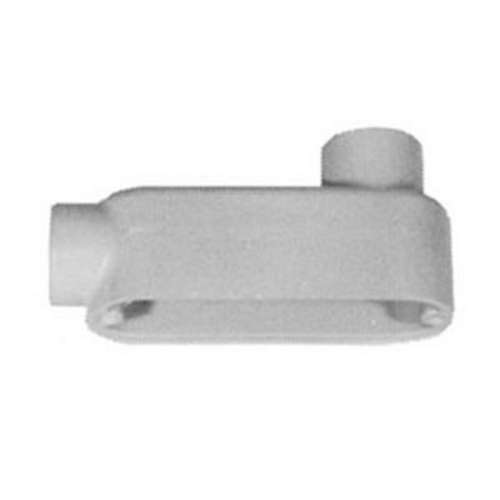

Type LB Conduit Body, 2-1/2 inch, Copper-Free Aluminum, Epoxy Powder Coated
MFR: Appleton Electric
MFR #: LB250-A
UPC: 781381477253
Item #: 98152
Type LB Conduit Body, 2-1/2 inch, Copper-Free Aluminum, Epoxy Powder Coated
MFR #: LB250-A
UPC: 781381477253
Item #: 98152
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$515.29
each
Form 85 UNILETS Type LB Conduit Outlet Body, Hub Size: 2-1/2 IN, Form: 85, Length: 13.69 IN, Height: 5-1/4 IN, Material: Sand Cast Aluminum, Finish: Epoxy Powder Coat, Connection: Tapered Female Threaded, Standard: UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1, For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT
Manuals and Documentation
- Catalog Number
- LB250-A
- Manufacturer
- Appleton Electric
- Brand
- Appleton
- Sub Brand
- UNILETS
- Country of Origin
- Mexico
- Made in USA
- No
- Application
- For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT
- Connection
- Tapered Female Threaded
- Finish
- Epoxy Powder Coat
- Form
- 85
- Hub Size
- 2-1/2 IN
- Material
- Sand Cast Aluminum
- Special Features
- Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copperfree aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Threaded style is raintight when used with casketed covers; Wiring capacity: 139 CU-IN as per NEC 314.16(A)
- Standard
- UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
- UPC
- 781381477253
- GTIN
- 00781381477253
- Item Type
- Type LB Conduit Outlet Body
- Length
- 13.69
- Length UOM
- Inch
- Height
- 5-1/4
- Height UOM
- Inch
