Hubbell Wiring Device - Kellems

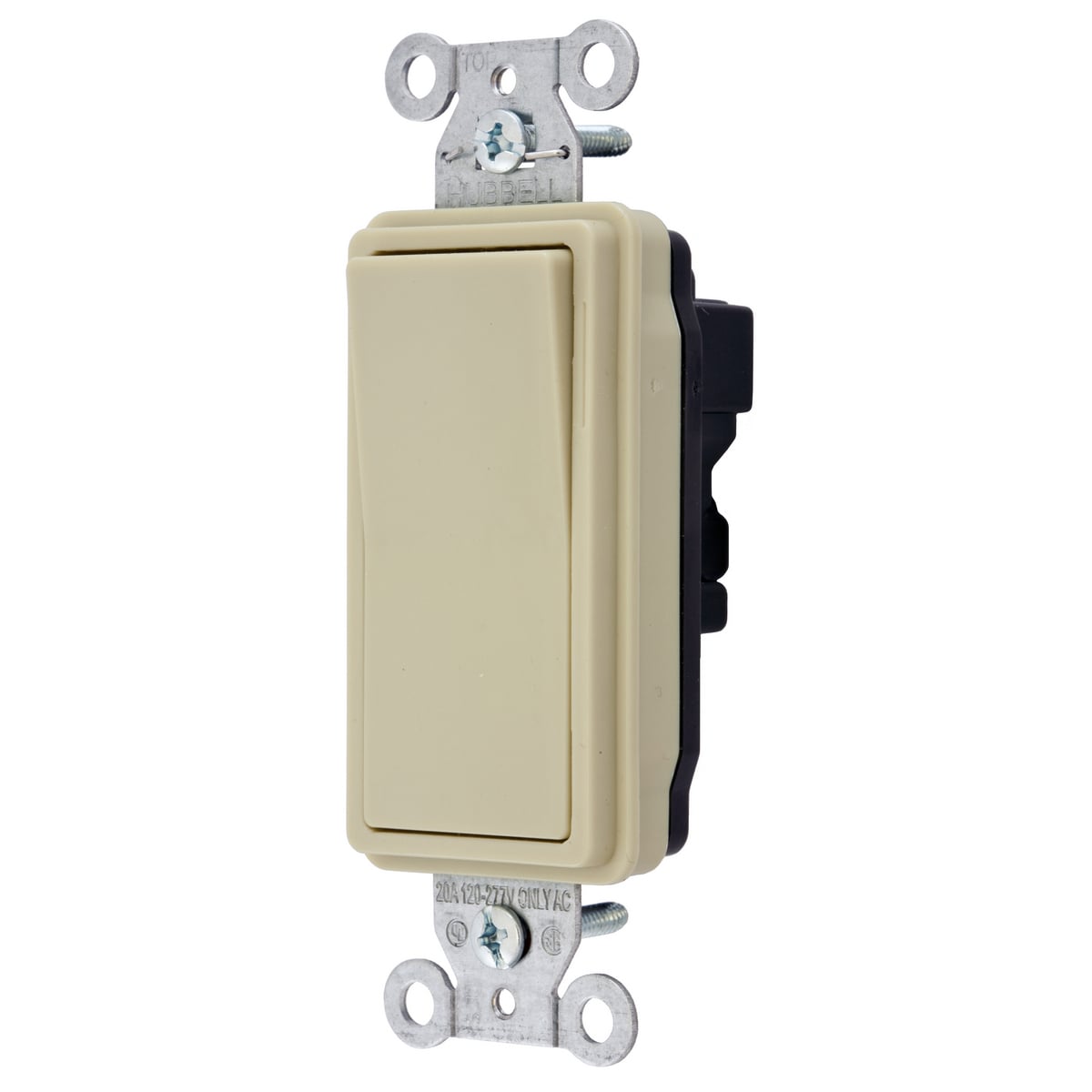

SNAP2103INA 3-Way General Purpose Heavy Duty Industrial Grade Standard Decorator Switch, 120 to 277 VAC, 15 A, 4155 W Power Rating, 2 Position Contact

MFR:
Hubbell Wiring Device-Kellems
MFR #:
SNAP2103INA
UPC:
783585189642
Item #:
981324

Availability

Location Available Qty
Available Available to Order

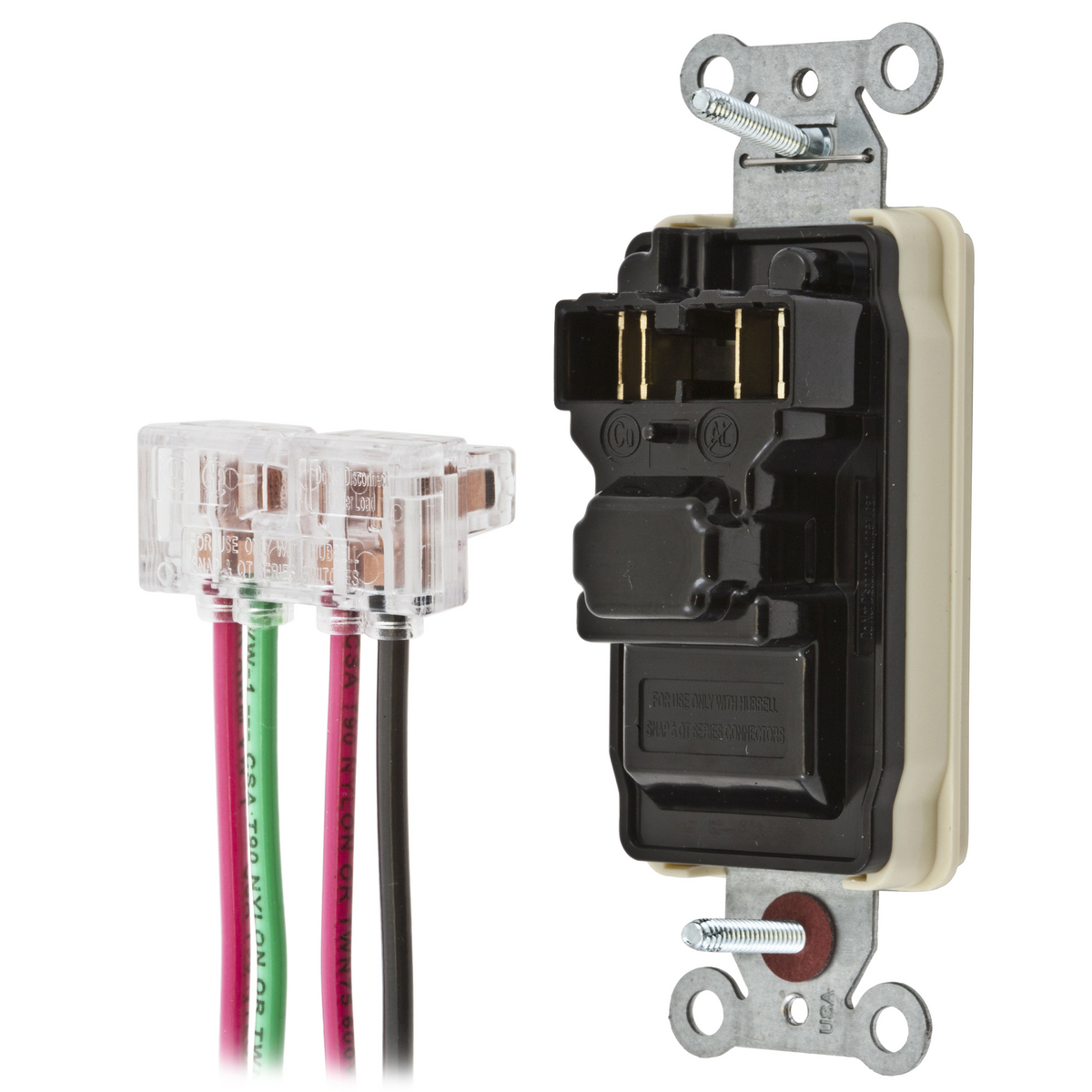

SNAPConnect Devices offer superior installation efficiency for new construction and renovations, while delivering safe, reliable connections. Instead of conventional wiring methods, SNAPConnects modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. Once installed, SNAPConnects modular design enables simple device change-out by maintenance personnel.

Manuals and Documentation
Catalog Number SNAP2103INA
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin Puerto Rico
Made in USA No
Action SPDT
Actuator Rocker
Amperage Rating 15
Application SNAPConnect Heavy Duty
Color Ivory
Connection Connectorized
Contact Configuration 2 Position
Contact Rating Per UL 20
Material Thermoplastic
Mounting Screw
Number of Poles 1
Operating Cycles 50,000 Cycles
Special Features SNAP Connect, Self-grounding
Standard UL Listed
UPC 783585189642
GTIN 00783585189642
Item Type Rocker/Decorator
Size 4.28 in x 1.44 in x 1.54 in
Environmental Conditions Indoor Dry unless protected by additional means
Operating Temperature Maximum continuous 75 Degrees C and minimum -40 Degrees C without Impact
Voltage Rating 120-277
Wattage 4155 W
