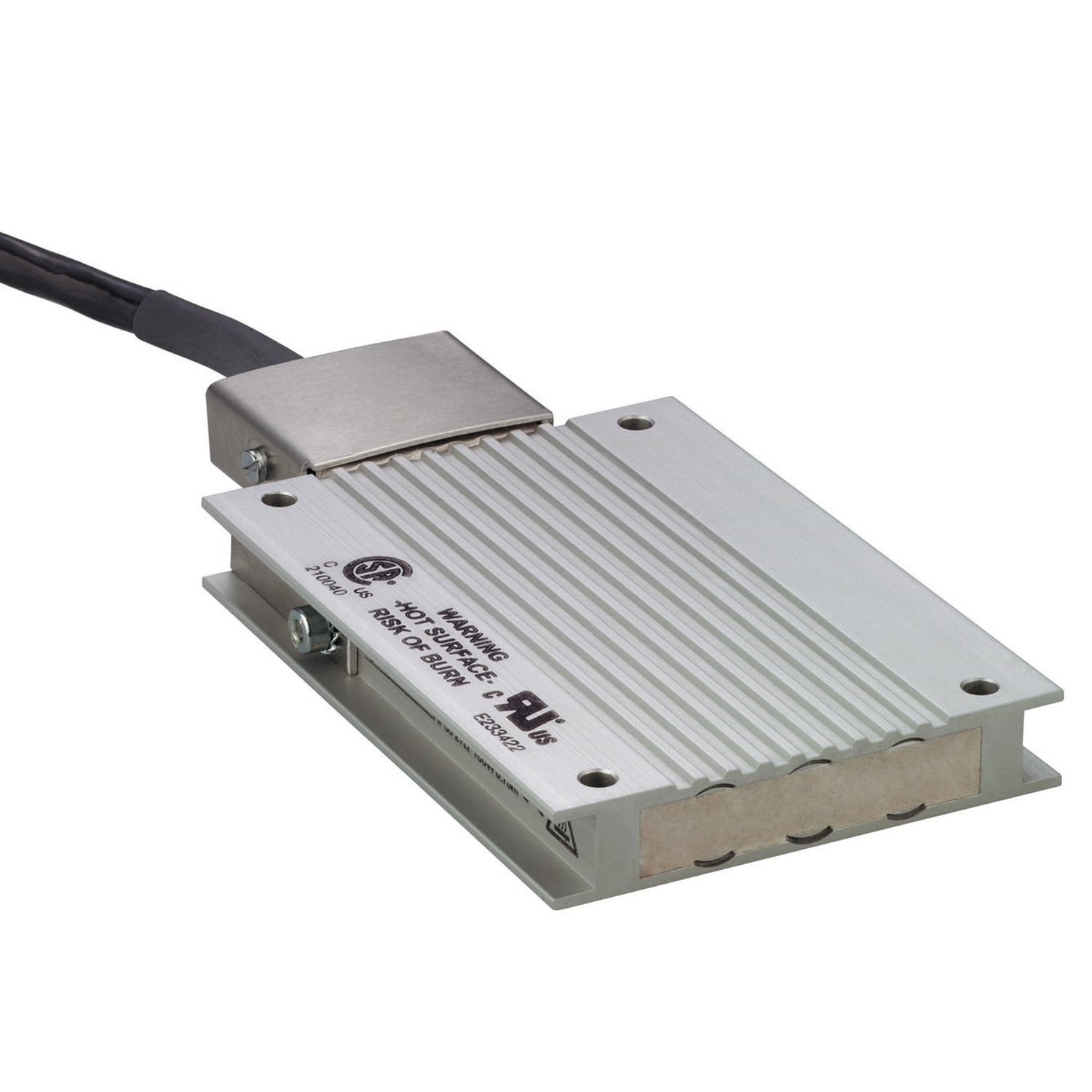

VW3A7604R20 Braking Resistor, For Use With Lexium 15, Lexium 52, Lexium 32i, Lexium 32, Lexium 05, Lexium 28, Lexium 16D Servo Drive and Motor
- MFR:
- Schneider Electric
- MFR #:
- VW3A7604R20
- Item #:
- 980
VW3A7604R20 Braking Resistor, For Use With Lexium 15, Lexium 52, Lexium 32i, Lexium 32, Lexium 05, Lexium 28, Lexium 16D Servo Drive and Motor
- MFR #:
- VW3A7604R20
- Item #:
- 980
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$610.06
each
This braking resistor is an option for servo drives of Lexium range and variable speed drives of Altivar range when used with synchronous motors. It has an Ohmic value of 27Ohms. This external braking resistor is required to dissipate the excess braking energy when the servo motor has to be braked frequently. In this case, the internal braking resistor must be deactivated Its protection index is IP65. It is equipped with a 2m connection cable. It weighs 1.47kg.
Manuals and Documentation
| Catalog Number | VW3A7604R20 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Germany |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=6941016&lang=en-us |
| GTIN | 03389119207188 |
