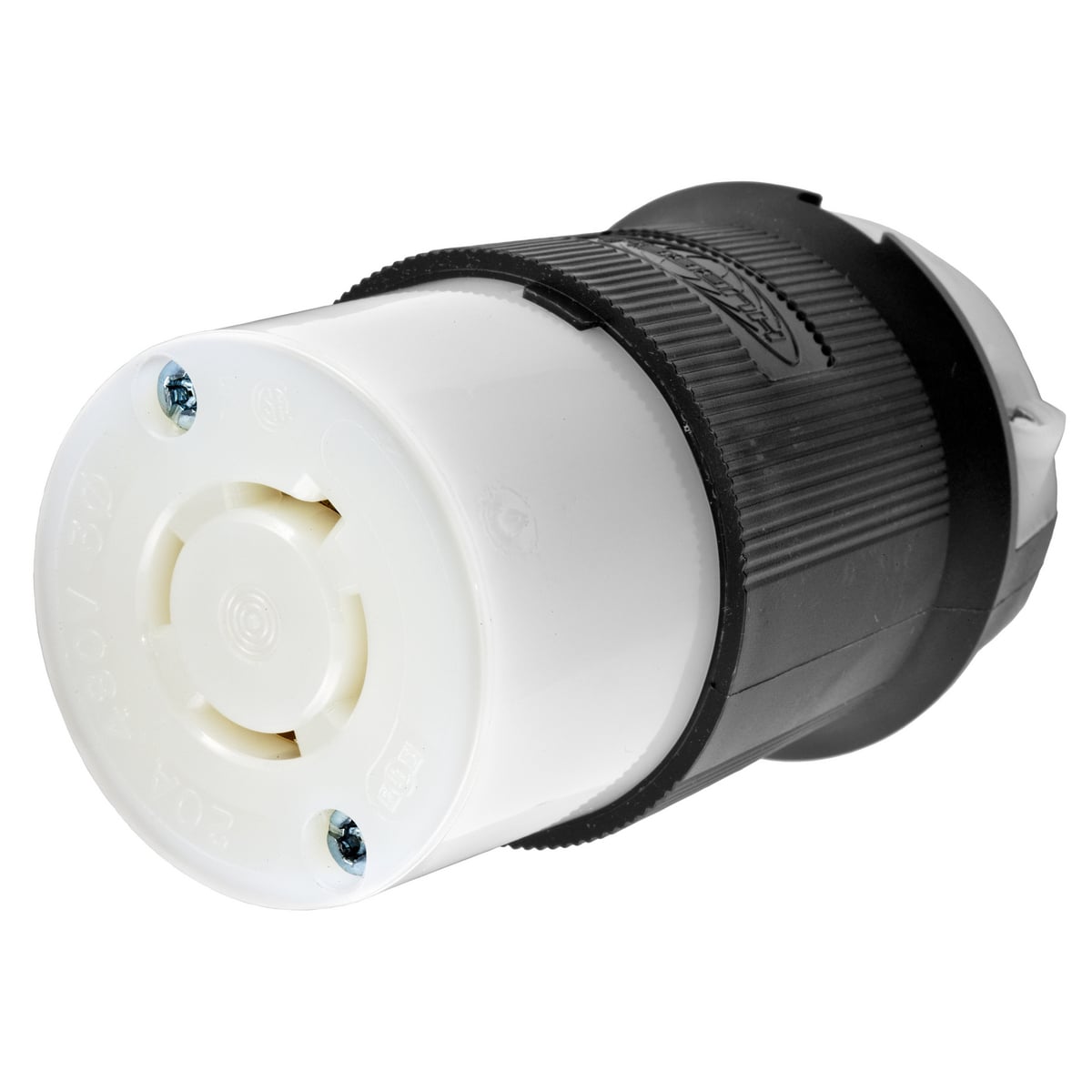

HBL2433 HBL Grounding Heavy Duty Cord Mount Locking Connector, 480 V AC, 20 A, 3 Poles, 4 Wires, Black/White
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBL2433
- UPC:
- 783585038292
- Item #:
- 97652
HBL2433 HBL Grounding Heavy Duty Cord Mount Locking Connector, 480 V AC, 20 A, 3 Poles, 4 Wires, Black/White
- MFR #:
- HBL2433
- UPC:
- 783585038292
- Item #:
- 97652
Availability
| Location | Available Qty |
|---|---|
| Available | 53 ea |
$83.37
each
Manuals and Documentation
| Catalog Number | HBL2433 |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 20 |
| Application | Heavy Duty Industrial |
| Color | Black; White |
| Conductor Range | #12AWG to #10AWG |
| Connection | Pressure Screw Terminal |
| Insulation | Insulated Body |
| Material | Nylon |
| Mounting | Cord |
| NEMA Rating | 6 |
| Number of Conductors | 4-Wire Grounding |
| Number of Poles | 3 |
| Special Features | Standard Product |
| Standard | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| UPC | 783585038292 |
| GTIN | 00783585038292 |
| Item Type | Connector Body |
| Size | 2.33 in x 2.33 in x 3.86 in |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Temperature Rating | Maximum Continuous: 75 Degrees C; Minimum Continuous: -40 Degrees C w/o impact, -25 Degrees with impact. |
| Voltage Rating | 3 Phase 480 |
| Cross Reference Products | L1620C, L1620C |
