Square D

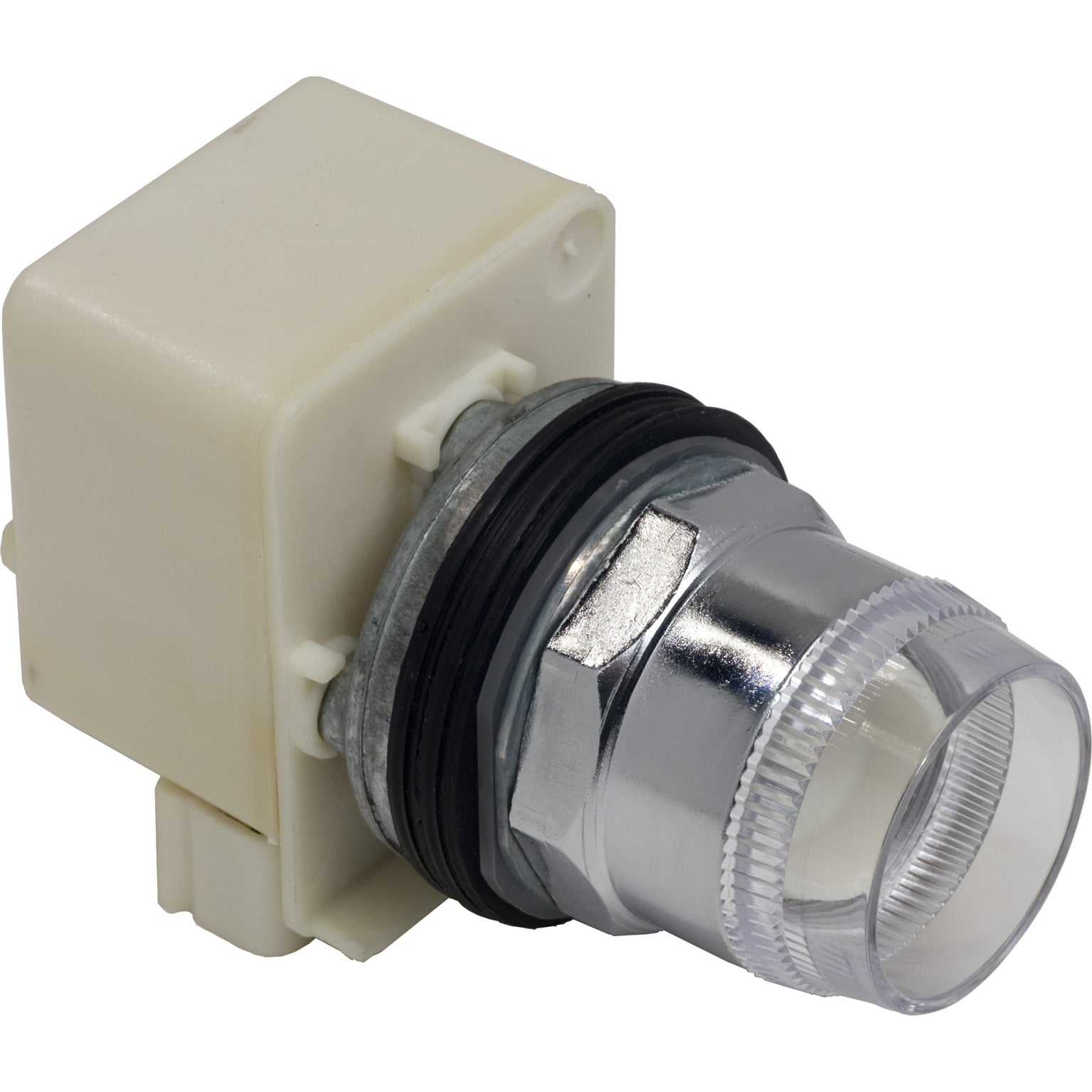

9001K1L35 Harmony Type K Dusttight/Oiltight/Watertight Full Voltage Heavy Duty Round Illuminated Pushbutton Operator With Metal Full Guard, 30 mm, SPDT Contact, Flush Operator, Momentary Contact

MFR:
Schneider Electric
MFR #:
9001K1L35
UPC:
785901027119
Item #:
97516

Availability

Location Available Qty
Available Available to Order
$171.62 each

The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type K operators have a die cast operator that mounts in a 1.18 inch round hole. This illuminated momentary push button has a die cast ring nut with a clear plastic end. This push button has a 24/28 VAC/VDC light module to provide the illumination. The light module has an incandescent lamp. A colored lens cap must be added to this operator. Contact blocks with the desired contact arrangements must be added to this operator. When properly installed with a lens cap this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. "It is installed into a 30mm panel cutout." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."

Manuals and Documentation
Catalog Number 9001K1L35
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=462905&lang=en-us
UPC 785901027119
GTIN 00785901027119
