SCHNEIDER ELECTRIC

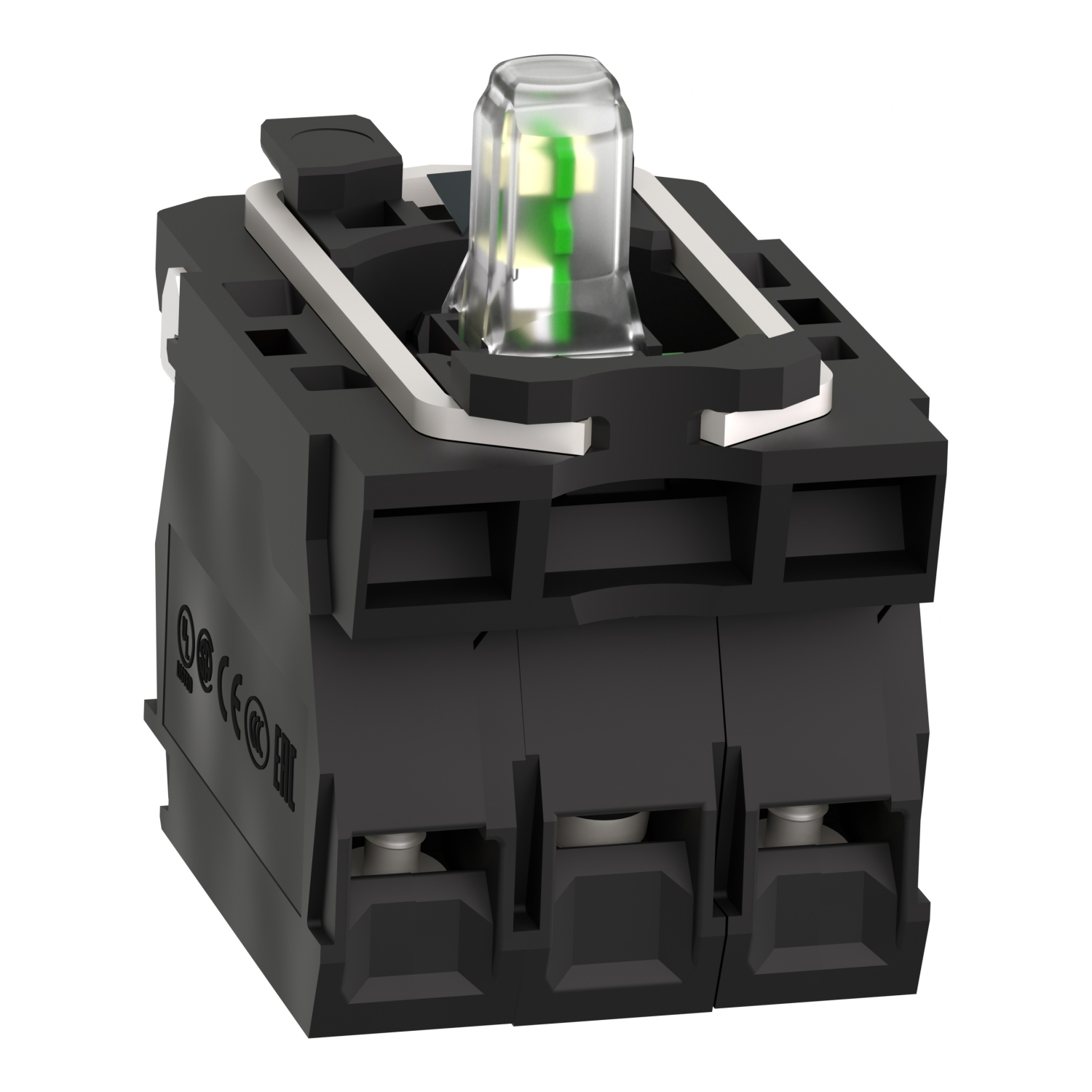

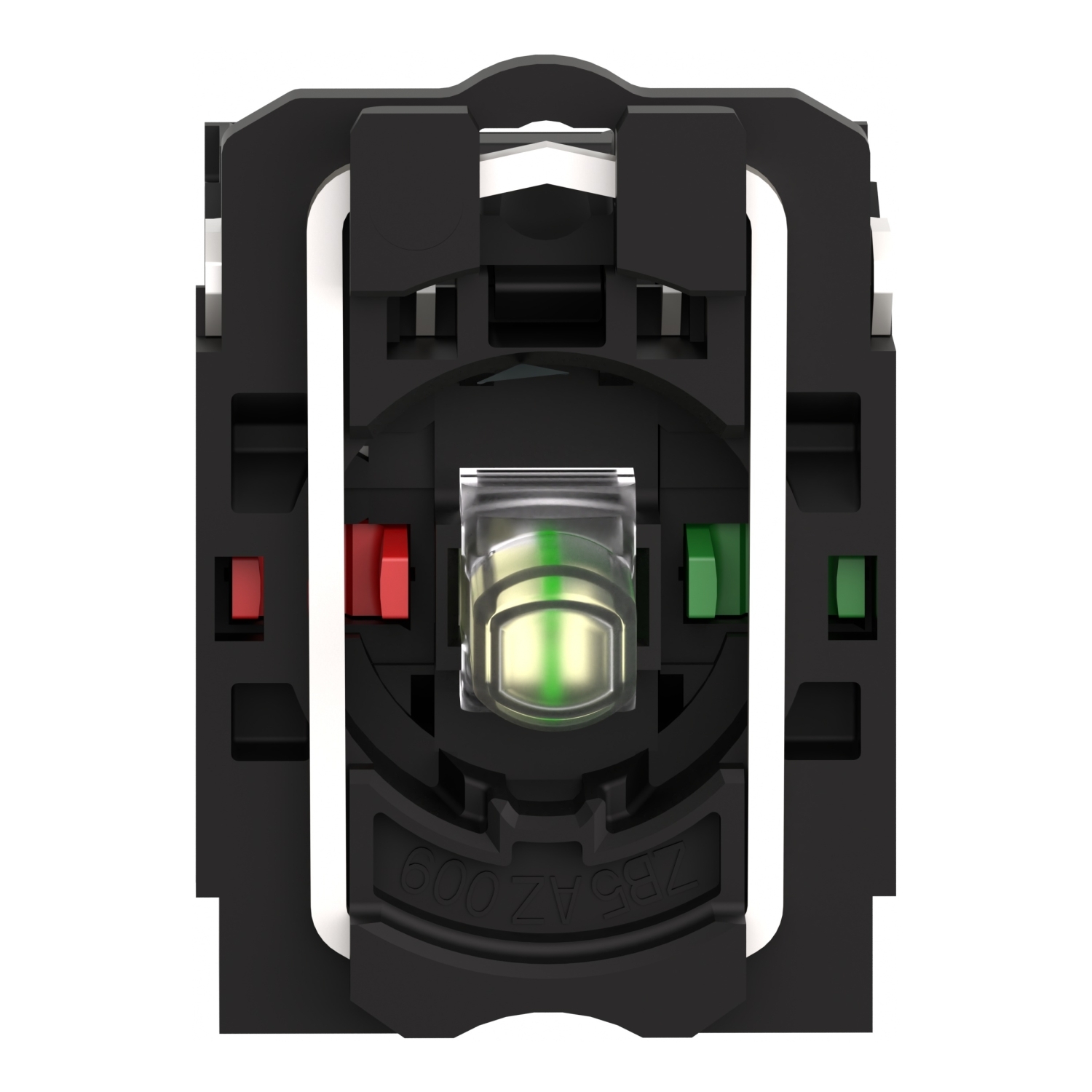

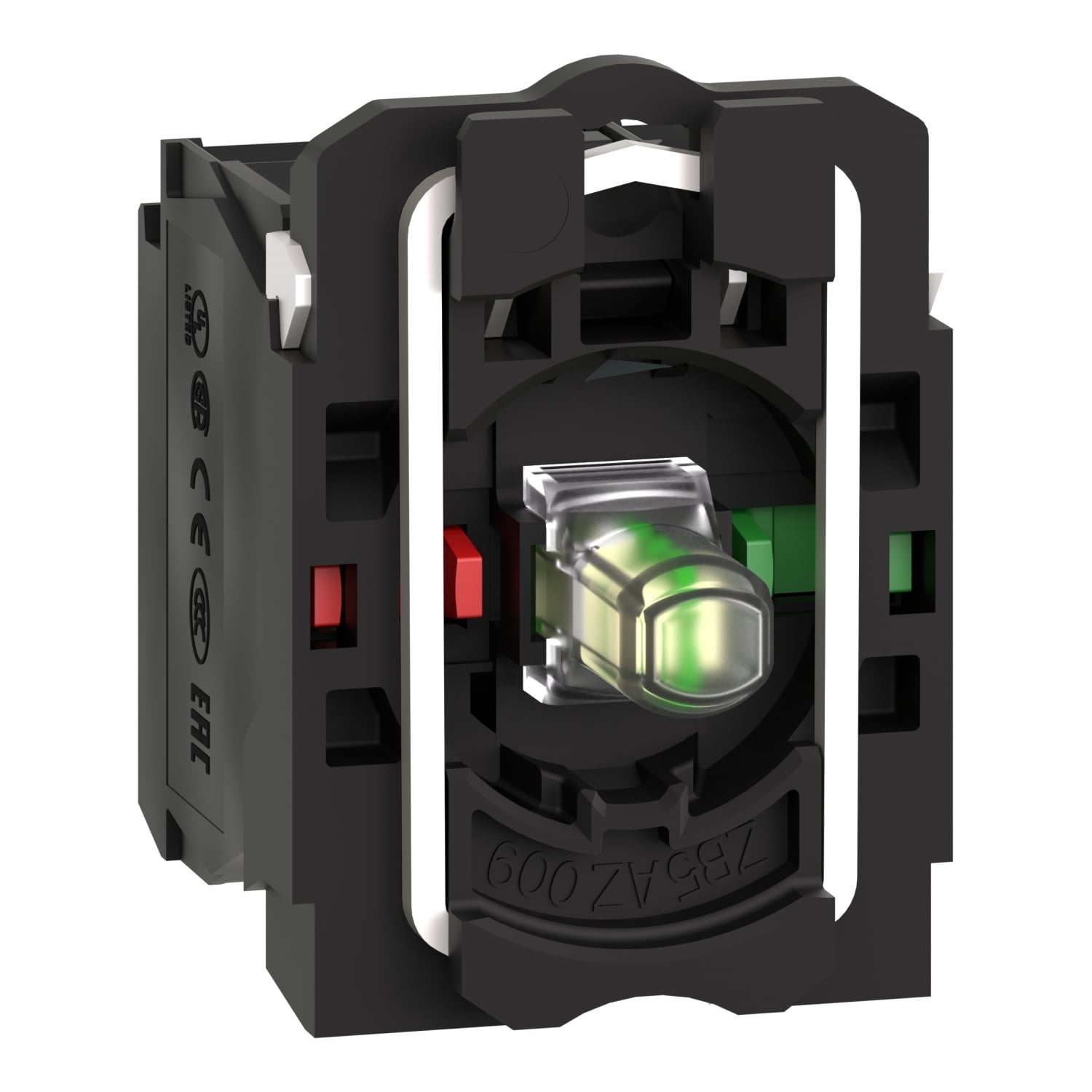

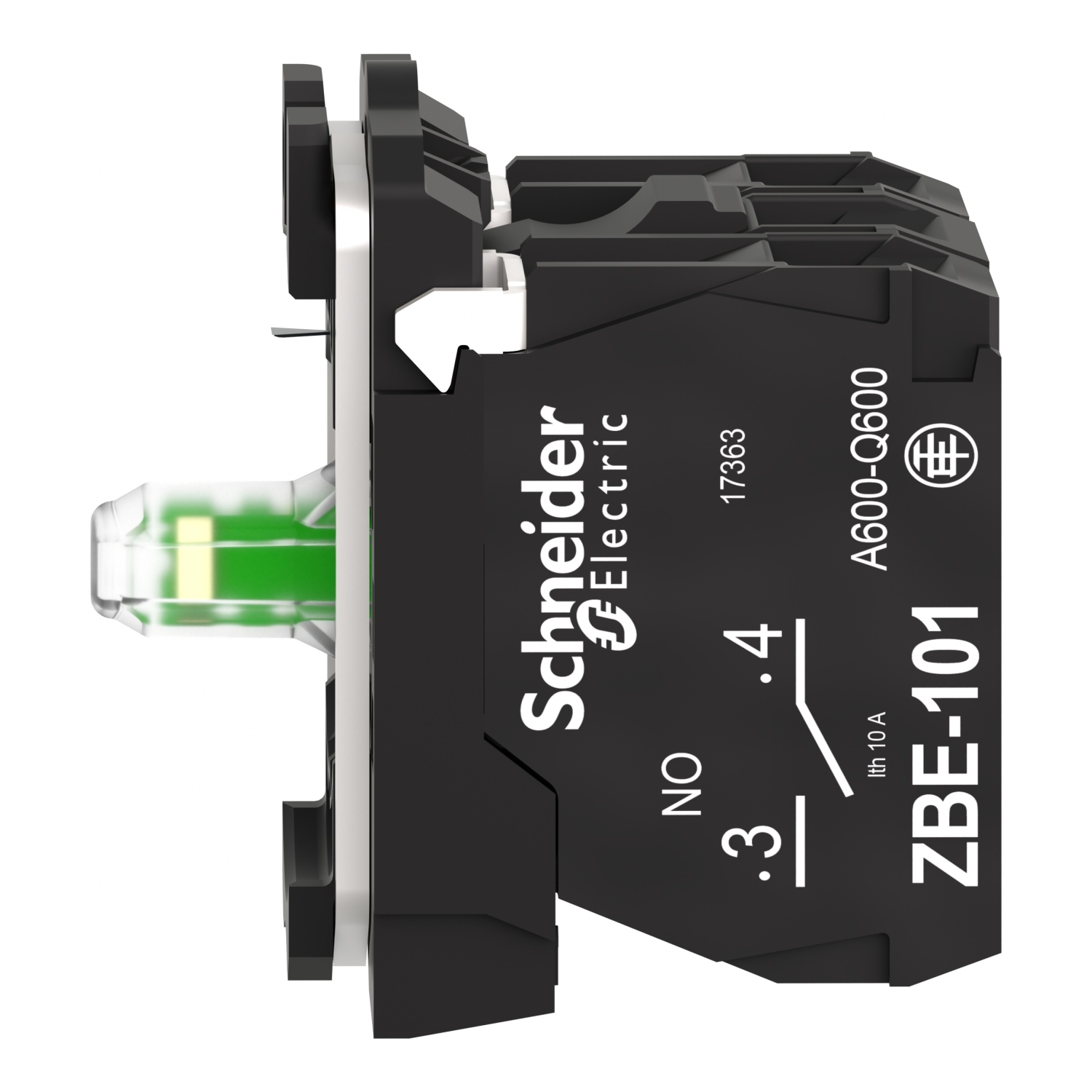

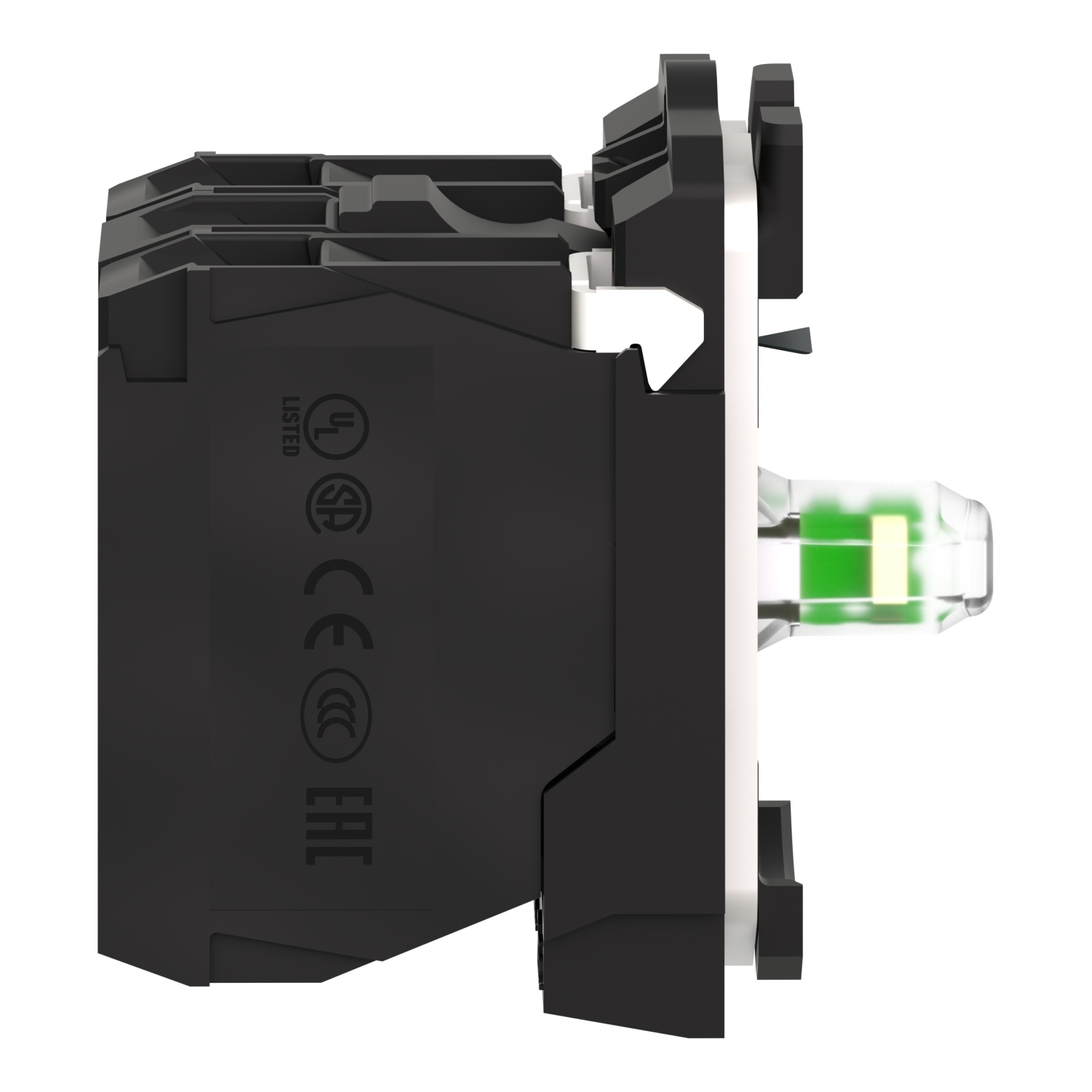

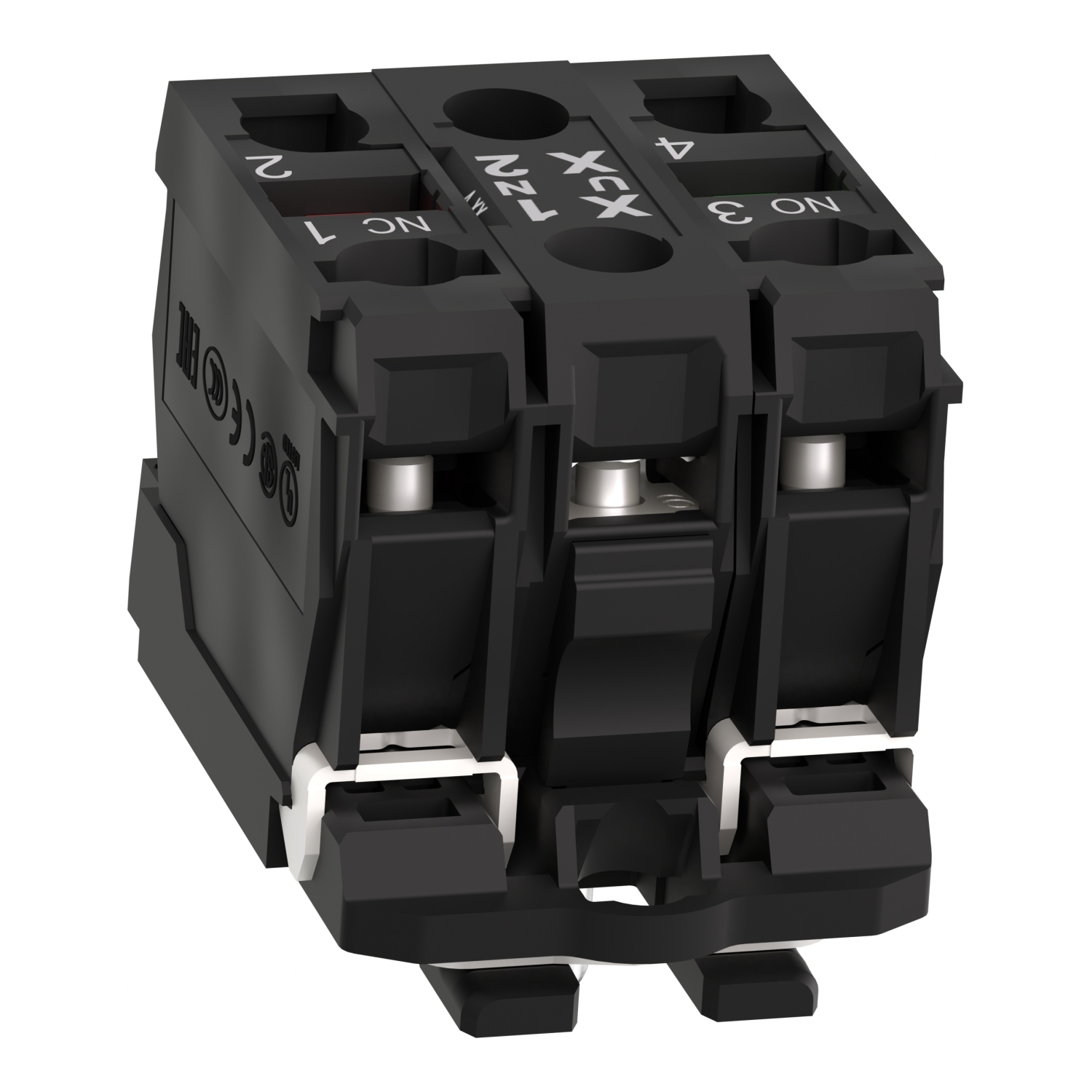

ZB5AW0G15 Harmony Standard Complete Body/Light Block/Contact Assembly, 22 mm, LED Lamp, 1NO-1NC Contact, 110 to 120 V AC, White

MFR:
Schneider Electric
MFR #:
ZB5AW0G15
Item #:
97495

Availability

Location Available Qty
Available Available to Order
$78.94 each

This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Manuals and Documentation
Catalog Number ZB5AW0G15
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Action Slow-break
Color White
Connection Screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1;screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

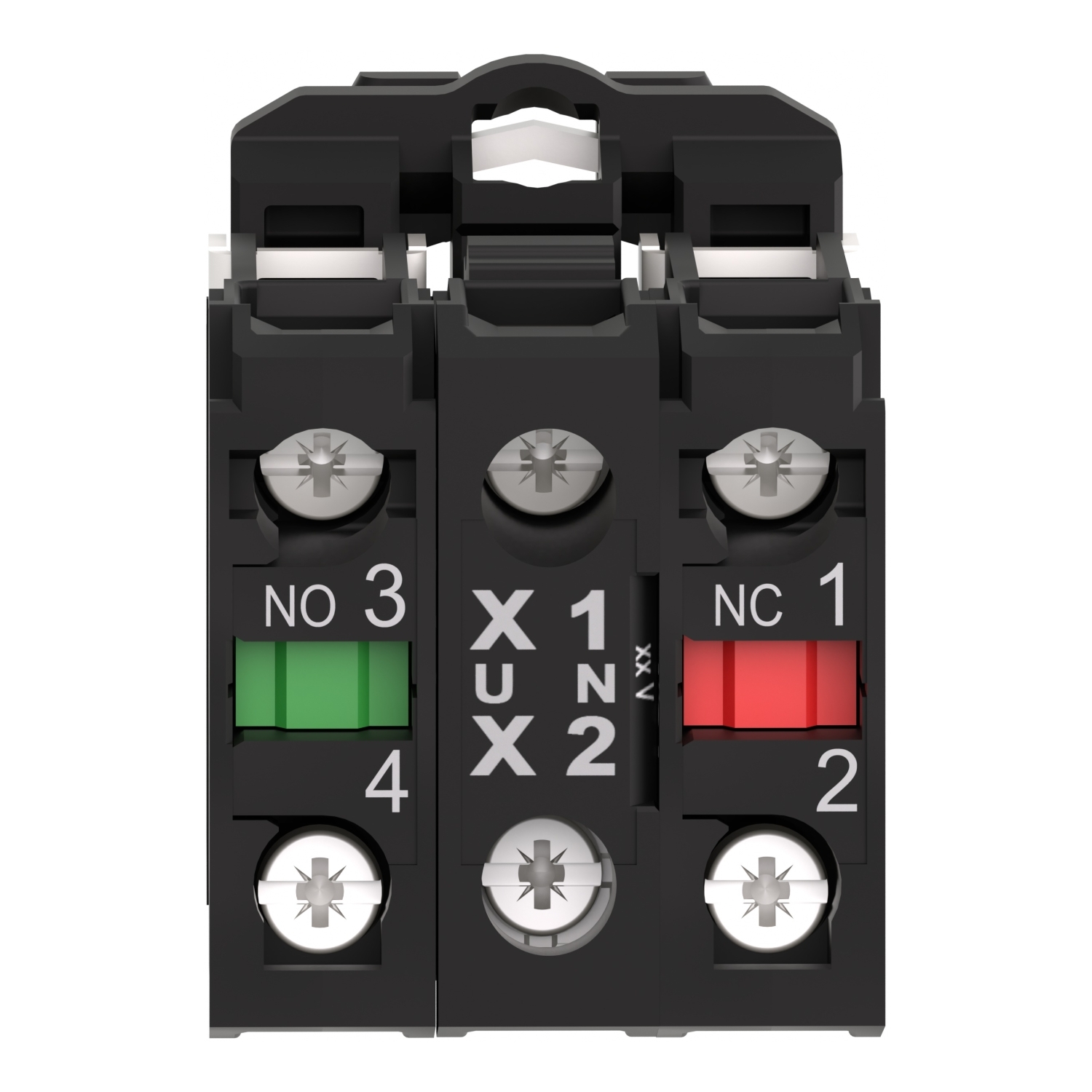

Contact Configuration 1 NO + 1 NC
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=654484&lang=en-us
GTIN 03389110908794
Item Type Complete body/contact assembly and light block
Voltage Rating 110...120 V AC 50/60 Hz
