BLACKBURN MECHANICAL

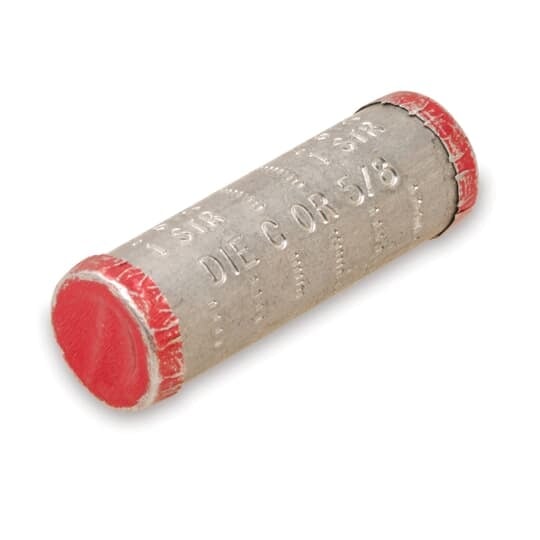

CS77 Blackburn CS Series Basic Non-Insulated Service Entrance Splice, 2 to 1/0 AWG ASCR/Stranded Conductor, Die Code: 5/8, 2 in L, Aluminum

MFR:
ABB - Installation Products
MFR #:
CS77
UPC:
783786101078
Item #:
97487

Availability

Location Available Qty
Available Available to Order
$2.10 each
Manuals and Documentation
Catalog Number CS77
Manufacturer ABB - Installation Products
Brand BLACKBURN MECHANICAL
Country of Origin Mexico
Made in USA No
Application Basic, uninsulated Splices for Service Entrances. For Combinations of Aluminum-to-Aluminum or Aluminum-to-Copper Conductors
Conductor Range End A: 1/0 ACSR , 1/0 STR End B: #2 (6/1,7/1) ACSR , #1 to #2 STR
Connection Compression
Material Aluminum
Number of Conductors 2
Special Features Constructed from Aluminum for High Conductivity. Solid Center Barriers and large Chamfers for easy cable insertion. Prefilled with Oxide Inhibitor to prevent oxidation and keep out moisture. All Splices are color coded and marked with strip lengths, installation die codes and compression locations, providing easy identification for easy installation
Standard RUS Accepted. Complies with ANSI C119.4 when properly installed on Aluminum-to-Aluminum or Aluminum-to-Copper Conductors
UPC 783786101078
GTIN 00783786101078
Item Type Compression Splice Service Entrance
Size 2 Inch
Environmental Conditions All Seasons / Conditions
Cross Reference Products ABBInstall BMS350C|ABBInstall CS77|ABBInstall N/S|ABBInstall PRS30N|ABBInstall PS22|ABBInstall PTB400|ABBInstall U1B102|ABBInstall X5U336|ALCOA 1366|Burndy YE32R60
