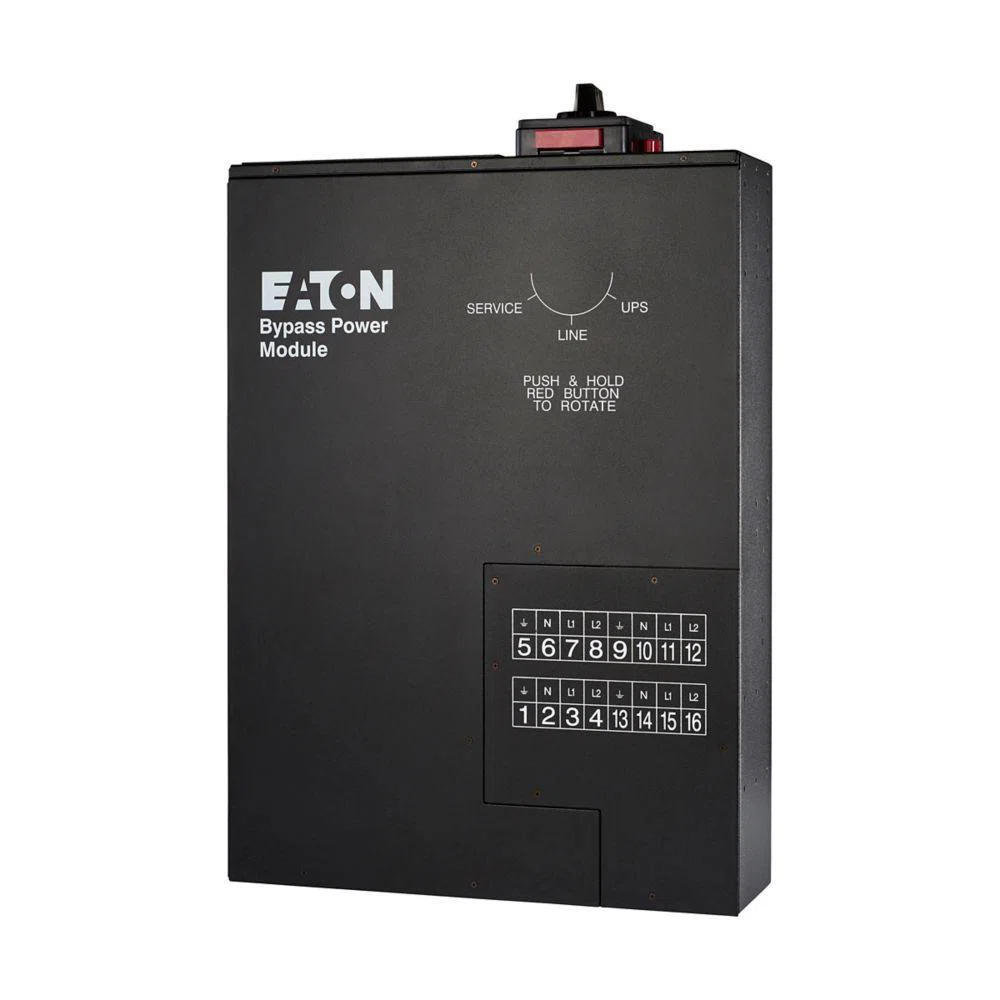

Compatible with Eaton 9PXM, 9170+, 9155 and 8-10 kVA 9PX UPS models, the Eaton Bypass Power Module (BPM) acts as both a maintenance bypass and a panelboard. Providing you with increased flexibility, the BPM lowers upfront and electrical costs while protecting against downtime during maintenance. While a centralized UPS can provide value over distributed designs, power distribution and reliability become more critical. Because they are hardwired, UPSs over 6 kVA almost always require a maintenance bypass to directly connect utility power to the IT equipment. In the event of scheduled UPS maintenance, a service event or failure, the Eaton BPM maintenance bypass functionality helps keep critical loads running. In addition, it enables you to distribute power from the UPS to connected equipment.
Manuals and Documentation
Features
- Power distribution for flexible infrastructure - EATON bypass power module (BPM) is a combined maintenance bypass (MBP) and power distribution unit (PDU) for centralized UPS designs
- The need for maintenance bypass - while a centralized UPS can provide enormous value over distributed design, power distribution and reliability become more critical to the infrastructure plan
- Simplifying power distribution - in addition to a bypass, centralized systems also need a means to distribute over 6 kW of power from the UPS to connected equipment
- Improving flexibility and management - unlike traditional MBP systems, a bypass power module comes equipped with local outlets to enable an IT manager to add, remove or reconfigure PDUs throughout the lifecycle of the installation
| Manufacturer Part Number | BPM125HW |
| Brand | EATON |
| Manufacturer | Eaton |
| UPC | 743172087072 |
| Country Of Origin | US |
| Color | Black |
| Dimensions | 26.5 in L x 17.3 in W x 5.1 in H |
| Mounting Type | Rack |
| Type | 3U Split-Phase |
| Alternative Part Number | 15891921 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | Conforme à la loi TAA ,TAA Compliant |
| Application | For EATON 9170+, 9155, 9PXSP 8 to 10 kVA UPS |
| Connection Type | Hardwire |
| Maximum Amperage Rating | 125 A |
