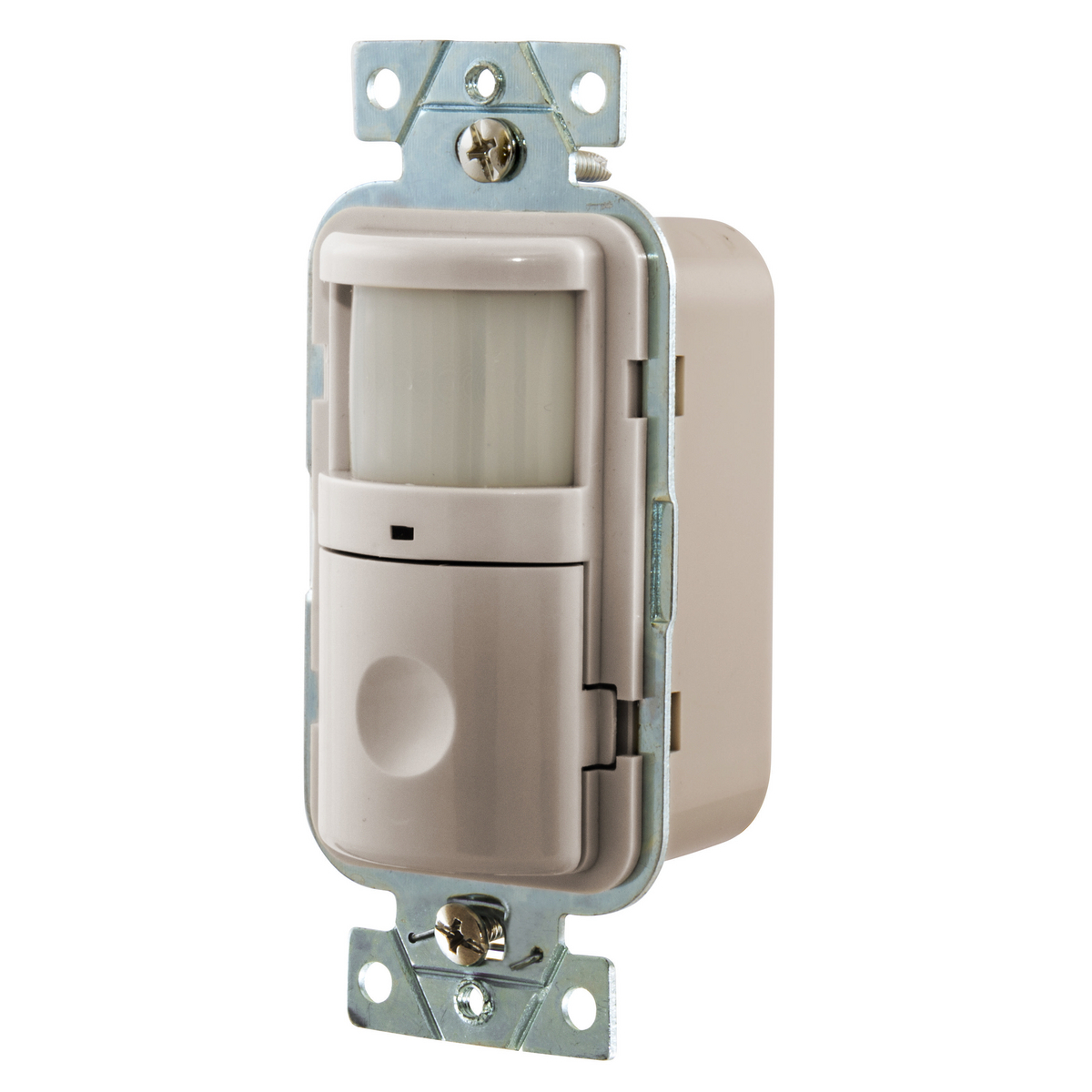

WS2000LA WS Series Adjustable Occupancy Sensor Switch, 120/277 V AC, Passive Infrared Sensor, 1000 sq-ft Coverage
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- WS2000LA
- UPC:
- 783585256856
- Item #:
- 97101
WS2000LA WS Series Adjustable Occupancy Sensor Switch, 120/277 V AC, Passive Infrared Sensor, 1000 sq-ft Coverage
- MFR #:
- WS2000LA
- UPC:
- 783585256856
- Item #:
- 97101
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$142.72
each
Standard Passive Infrared Technology requires a clear, unobstructed line of sight for detection, because it senses occupancy as movement of heat emitted from the body against the background space. A segmented Fresnel lens divides a coverage area into zones. Movement across zones is interpreted as occupancy. Excellent for small room control.
Manuals and Documentation
| Catalog Number | WS2000LA |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Taiwan, Province Of China |
| Made in USA | No |
| Application | Compatible with most LED and CFL |
| Color | Light Almond |
| Connector | Terminal Screws |
| Mounting | Screw |
| Sensing Range | 1000 Square Feet |
| Sensitivity | Adjustable |
| Sensor | Passive Infrared |
| Special Features | Standard Product |
| Standard | cULus Listed To UL773A |
| Supply Voltage | 120/277 AC |
| UPC | 783585256856 |
| GTIN | 00783585256856 |
| Item Type | Manual/Auto |
| Environmental Conditions | Indoor Dry Unless Protected by Additional Means |
| Operating Temperature | 32 Degrees F to 122 Degrees F (0 Degrees C to 50 Degrees C) with rate of change not exceeding 20 Degrees F(11 Degrees C) per hour |
