Discontinued

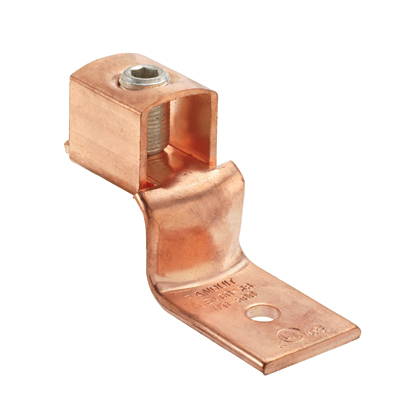

CB70-14-CY CB Series 1- Barrel Mechanical Lug, 8 to 2 AWG Stranded Copper Conductor, 1/4 in Stud, 1 Bolt Hole, Copper
- MFR:
- Panduit
- MFR #:
- CB70-14-CY
- UPC:
- 074983582266
- Item #:
- 96838
Discontinued
CB70-14-CY CB Series 1- Barrel Mechanical Lug, 8 to 2 AWG Stranded Copper Conductor, 1/4 in Stud, 1 Bolt Hole, Copper
- MFR #:
- CB70-14-CY
- UPC:
- 074983582266
- Item #:
- 96838
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$3.9718
each
The CB70-14-CY Mechancial Cable Lug one-hole copper, single barrel, is made from high strength electrolytic copper to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel set screw provides a durable electrical contract between conductor and Lug. The internal pressure bar and V-bottom collar provide uniform clamping force to assure positive contact.
Manuals and Documentation
| Catalog Number | CB70-14-CY |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | India |
| Made in USA | No |
| Amperage Rating | 90 |
| Application | Copper Mechanical Lug |
| Material | Copper |
| Number of Holes | 1 |
| Standard | cULus Listed for use up to 600V & Temperature Rated to 90 Degrees C |
| UPC | 074983582266 |
| GTIN | 00074983582266 |
| Item Type | Mechanical Lug |
| Stud Size | 1/4 IN |
| Voltage Rating | 600 |
