Appleton

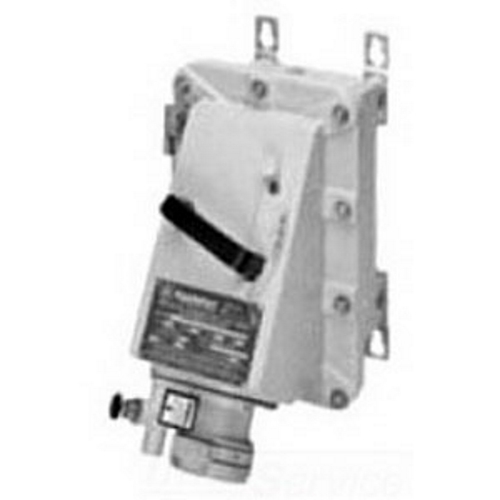

DBR6034DS 3-Phase Dust-Ignitionproof Grounding Style 2 Interlocked Explosionproof Receptacle With Disconnect Switch and Mounting Box, 600 V AC, 60 A, 4 Poles, 3 Wires

MFR:
Appleton Electric
MFR #:
DBR6034DS
UPC:
781381512916
Item #:
968063

Availability

Location Available Qty
Available Available to Order
$7,340.61 each

DBR Series Receptacle With Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Amperage Rating: 60 AMP, Voltage Rating: 600 VAC, Phase: 3 PH, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Nema Rating: NEMA 3, 3R, 4, 4X, 9FG, Mounting: Surface Mount, Motor Horsepower: 60 HP At 600 VAC, Finish: Epoxy Powder Coat, Dimensions: 9.08 IN Width X 16.57 IN Height X 14.14 IN Depth, Standard: Class II, Division 1 And 2, Groups F, G, Class III, UL 1010 (UL 1203), UL 894, UL 1682, UL 1686, For ACP And CPH Plugs

Manuals and Documentation
Catalog Number DBR6034DS
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 60
Application For ACP And CPH Plugs
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting Surface
NEMA Rating 3, 3R, 4, 4X
Number of Poles 4
Number of Wires 3
Phase 3
Special Features Includes disconnect switch; Grounding style: Shell and extra pole; Weatherproof Spring Cover; Dust-Ignitionproof; Energized receptacle contacts deeply recessed to reduce danger of accidental touching; Spring door keeps dust out of receptacle when plug is not in use, screw cap also supplied; Brass contacts exert constant pressure along entire contact surface and provide superior electrical contact; Contacts have beryllium copper wire springs; Plug mechanical cable clamps prevent strain on cables-they meet or exceed UL strain relief pull-out requirements; Neoprene bushing compressed by cable collar prevents entrance of water; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; 1-1/2 NPT tapped conduit openings one top to bottom; Interlocked disconnect switch provides safe connect and disconnect operation
Standard Class II, Division 1 And 2, Groups F, G; Class III; UL 1010 (UL 1203), UL 894, UL 1682, UL 1686
UPC 781381512916
GTIN 00781381512916
Item Type DBR Series Receptacle With Mounting Box
Voltage Rating 600
