BLACKBURN MECHANICAL

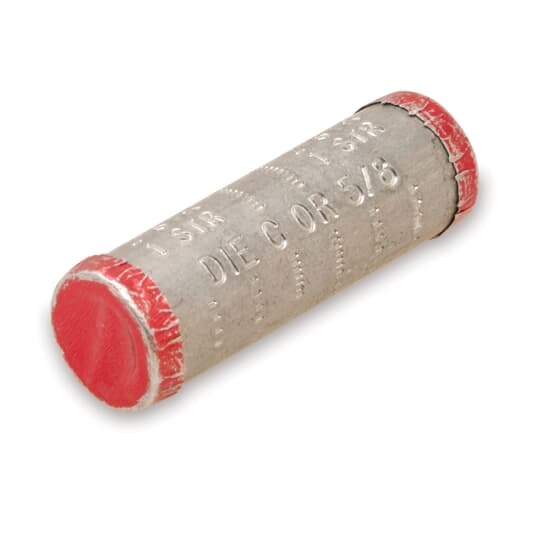

CS76 Blackburn CS Series Basic Non-Insulated Service Entrance Splice, 4 to 1/0 AWG ASCR/Solid/Stranded Conductor, Die Code: 5/8, 2 in L, Aluminum

MFR:
ABB - Installation Products
MFR #:
CS76
UPC:
783786100637
Item #:
96805

Availability

Location Available Qty
Available Available to Order
$2.38 each
Manuals and Documentation
Catalog Number CS76
Manufacturer ABB - Installation Products
Brand BLACKBURN MECHANICAL
Country of Origin Mexico
Made in USA No
Application Basic, uninsulated Splices for Service Entrances. For Combinations of Aluminum-to-Aluminum or Aluminum-to-Copper Conductors
Conductor Range End A: 1/0 ACSR , 1/0 STR End B: #4 (6/1,7/1) ACSR , 3-4 STR , #2 SOL
Connection Compression
Material Aluminum
Number of Conductors 2
Special Features Constructed from Aluminum for High Conductivity. Solid Center Barriers and large Chamfers for easy cable insertion. Prefilled with Oxide Inhibitor to prevent oxidation and keep out moisture. All Splices are color coded and marked with strip lengths, installation die codes and compression locations, providing easy identification for easy installation
Standard RUS Accepted. Complies with ANSI C119.4 when properly installed on Aluminum-to-Aluminum or Aluminum-to-Copper Conductors
UPC 783786100637
GTIN 00783786100637
Item Type Compression Splice Service Entrance
Size 2 Inch
Environmental Conditions All Seasons / Conditions
Cross Reference Products 3M 01T3|ABBInstall CS76|ABBInstall SG103|ABBInstall U1B104|ALCOA 1365|Burndy YSU25R2|Burndy YSU25R2W|ESP ACS1/04|Frankel ARG1/04|Kearney 26485
