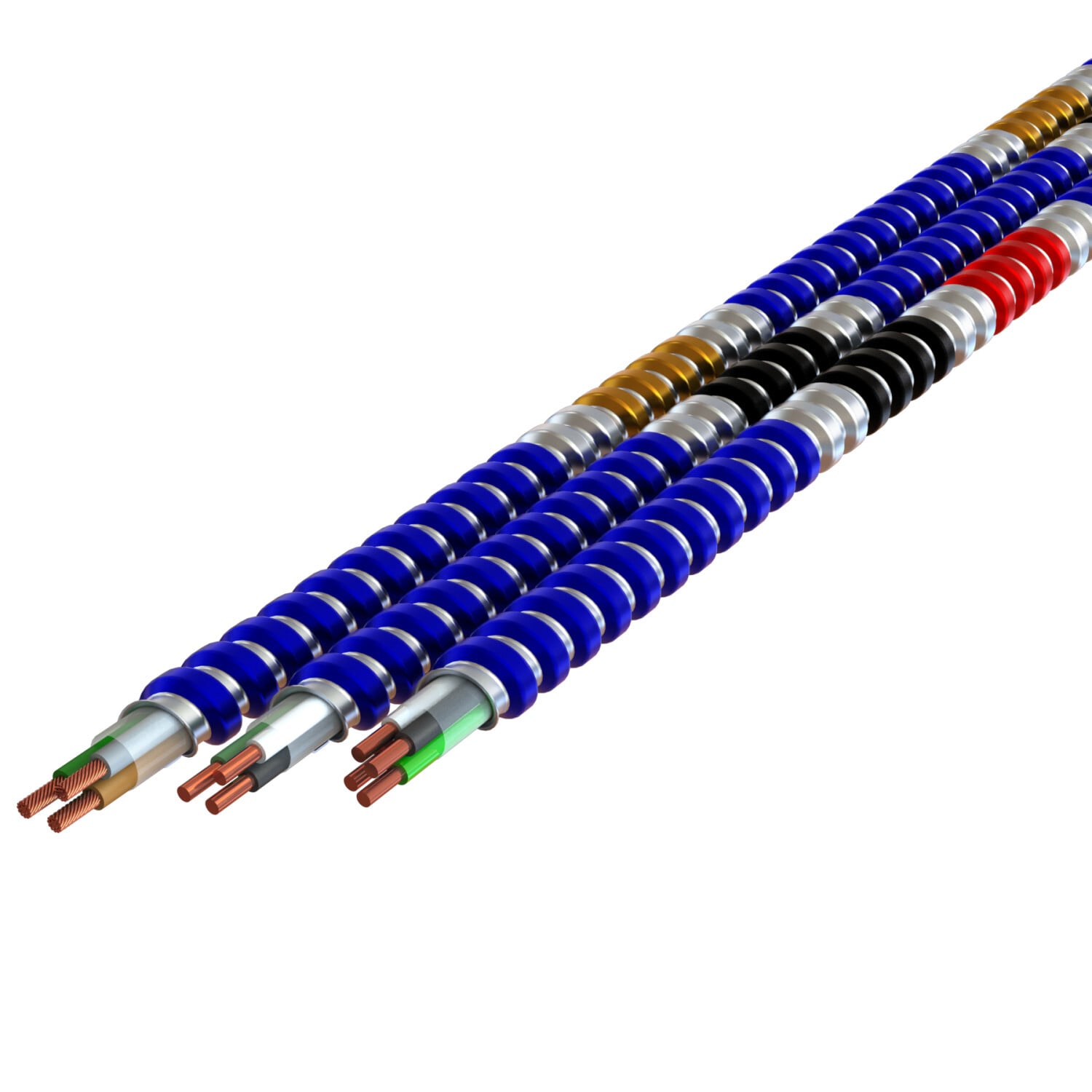

1760B60T01 MC Tuff Traditional Type MC Lightweight Armored Cable, Reel Packaging, 600 V, (4) 12 AWG Stranded Copper Conductor, 1000 ft L
- MFR:
- ATKORE - KAF-TECH
- MFR #:
- 1760B60T01
- UPC:
- 077680200723
- Item #:
- 966776
1760B60T01 MC Tuff Traditional Type MC Lightweight Armored Cable, Reel Packaging, 600 V, (4) 12 AWG Stranded Copper Conductor, 1000 ft L
- MFR #:
- 1760B60T01
- UPC:
- 077680200723
- Item #:
- 966776
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$4.8877
each
MC Tuff is a lightweight, high-strength Type MC Cable with blue galvanized steel interlocked armor that features ColorSpecID/ColorTrak ID for easy identification. MC Tuff cables meet UL Standard 1569 and NEC 330, have no conductor count limit, and offer various conductor bundle combinations. These bundles consist of THHN/THWN rated conductors that are twisted and wrapped with polypropylene assembly tape. They also come with an insulated green equipment grounding conductor. Additionally, Atkore offers a Glide version of this cable for smoother, faster installation.
Manuals and Documentation
| Catalog Number | 1760B60T01 |
| Manufacturer | ATKORE - KAF-TECH |
| Brand | Kaf-Tech |
| Country of Origin | United States |
| Made in USA | Yes |
| Armour | Interlocked Galvanized Steel Strip |
| Color | Blue |
| Conductor Material | Copper |
| Conductor Size | 12 AWG |
| Number of Conductors | 5 |
| Special Features | Galvanized interlocking steel strip, utilizes ColorSpec® ID system |
| UPC | 077680200723 |
| GTIN | 00077680200723 |
| Item Type | MC Tuff® Lightweight Steel Cable |
| Length | 1000 |
| Length UOM | Foot |
| Weight | 0.2455 LB/FT |
| Outside Diameter | 0.613 IN |
| Temperature Rating | 90 |
| Voltage Rating | 600V |
