Telemecanique

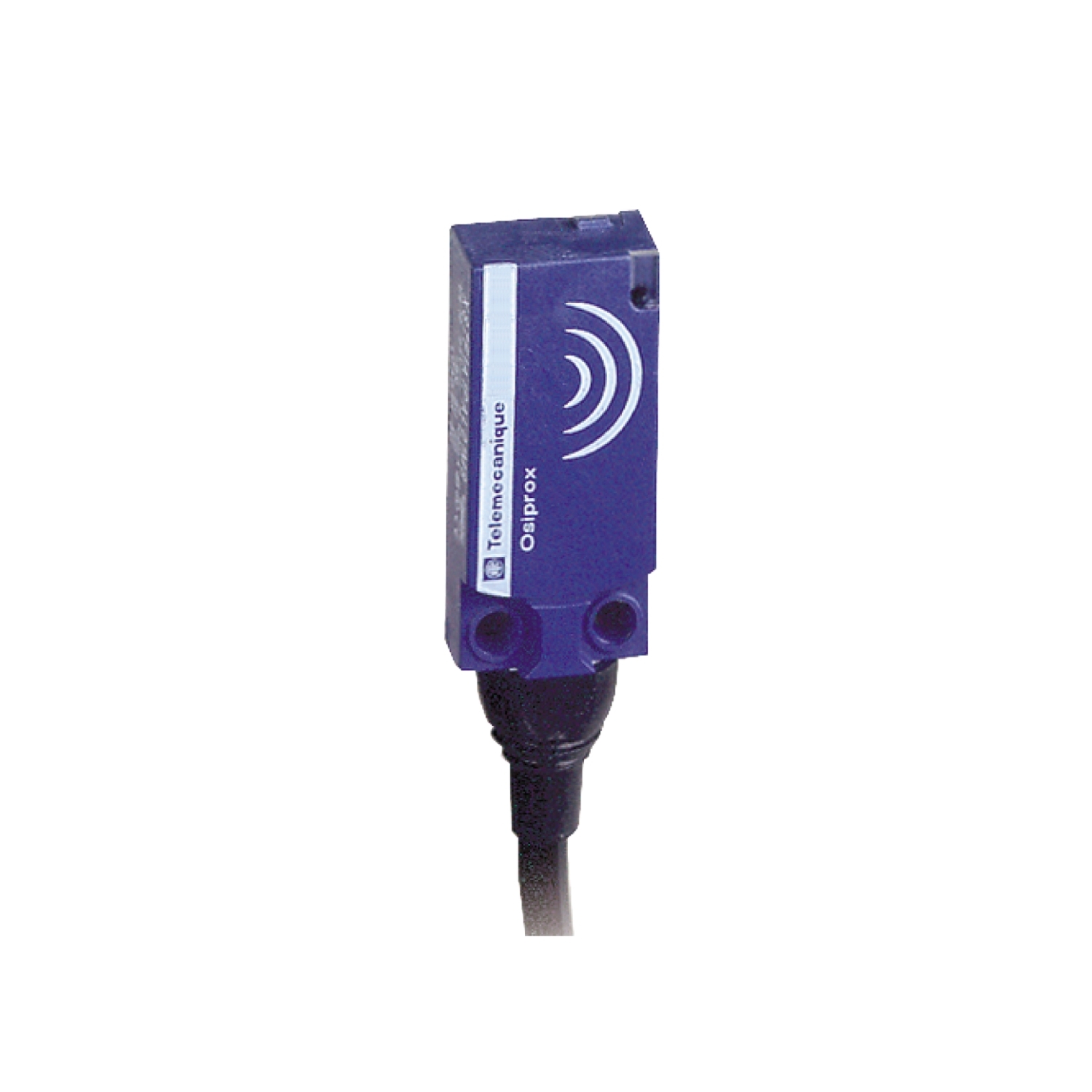

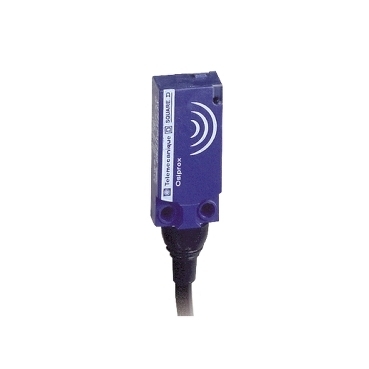

XS7F1A1NAL2 OsiSense XS7 Series Fixed Flat Form Proximity Sensor, Inductive, NPN/Discrete Output, 1NO Contact, 12 to 24 V DC

MFR:
Telemecanique Sensors
MFR #:
XS7F1A1NAL2
UPC:
785901562443
Item #:
96480

Availability

Location Available Qty
Available Available to Order
$126.29 each

This XS flat (15 x 32 x 8 mm) inductive proximity sensor has a PBT case. It has a supply voltage of 12V to 24V DC. This general purpose rectangular inductive proximity sensor is mountable directly on a surface, thanks to its 2 screw fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. IP68 protection makes this product ready for the harshest environments. It can operate in very cold (-25C) and hot environments (+70C). It features double insulation for better people and system protection from electrical shocks. It is C-Tick, CSA, UL certified.

Manuals and Documentation
Catalog Number XS7F1A1NAL2
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin France
Made in USA No
Application -
Connector Cable
Enclosure PBT
Indicator Output state 1 LED yellow)
Material Plastic
Mounting Flush
Sensing Range > 0.16...0.31 IN (> 4...8 MM)
Sensor 32 MM,INDUCTIVE PROXIMITY SENSOR
Special Features PLASTIC
Standard IP68 conforming to IEC 60529;CE
Supply Voltage 12...24 V DC reverse polarity protection
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=870382&lang=en-us
UPC 785901562443
GTIN 03389110139709
Item Type Inductive proximity sensor;Flat form 15 x 32 x 8
Operating Temperature -25-70 A Degrees C
