Telemecanique

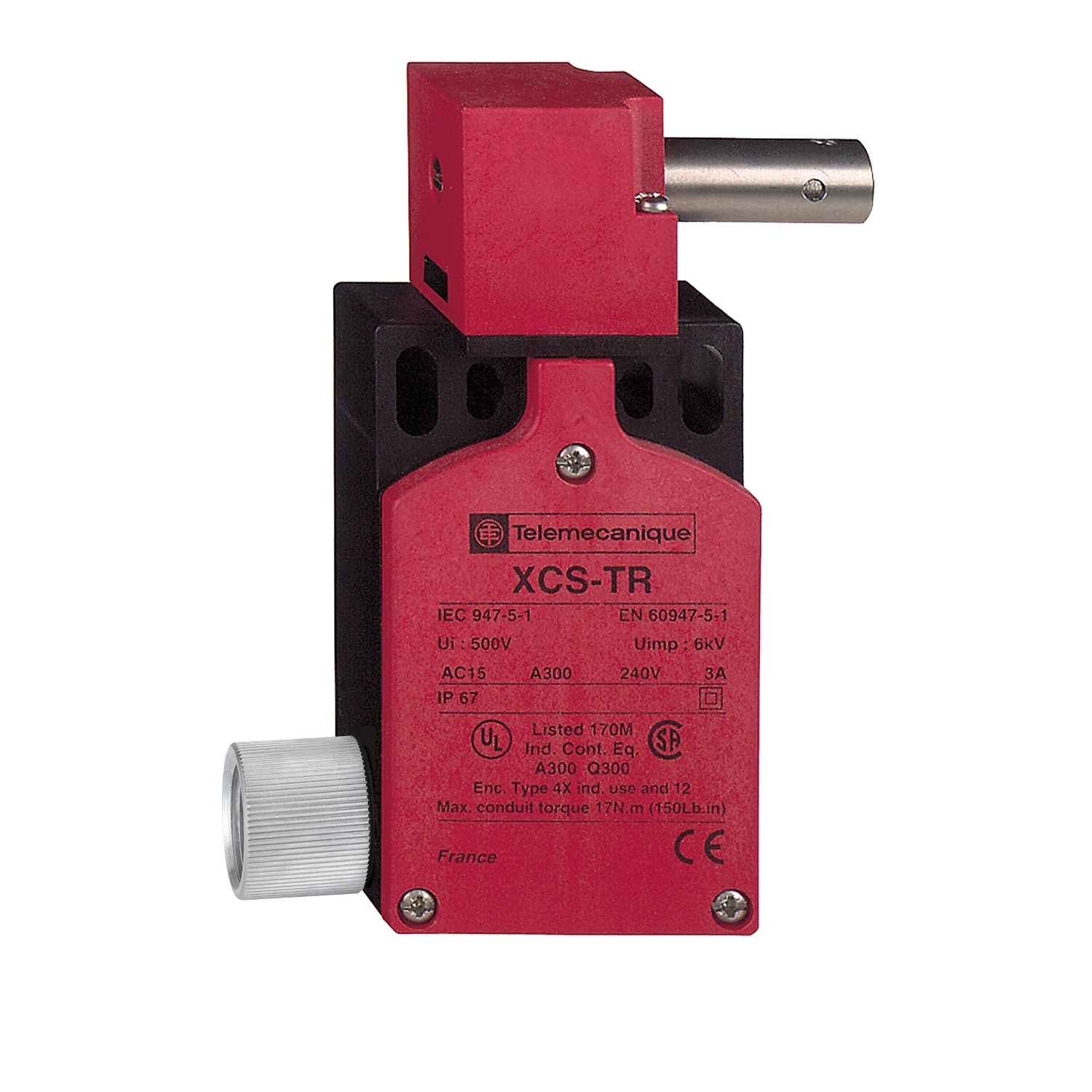

XCSTR753 Preventa 3-Pole Guard Safety Interlock Switch, 300 V AC, 6 A, 3 Poles

MFR:
Telemecanique Sensors
MFR #:
XCSTR753
UPC:
785901177265
Item #:
963887

Availability

Location Available Qty
Available Available to Order
$391.58 each

This XCSTR Safety Limit Switch has a 30 mm stainless steel spindle, a double insulated plastic enclosure and 2 x 1/2" NPT cable gland entries. It has 1 normally open and 2 normally closed break-before-make (slow break) contacts. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Manuals and Documentation
Catalog Number XCSTR753
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Action Slow-break, break before make
Actuator Spindle 30 mm;Stainless steel
Amperage Rating 6
Application TURRET HEAD ROTARY AXIS
Connection Terminal
Contact Configuration 1 NC + 1 NC + 1 NO
Enclosure Polyamide PA66 fibre glass impregnated
Insulation Double insulated
Number of Poles 3
Special Features PLASTIC
Standard 50 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,BG-CSA-UL,EN/IEC 60947-5-4-EN/IEC 60947-5-1-UL 508-EN 1088/ISO 14119-CSA C22.2 NO 14-EN/IEC 60204-1-EN/ISO 12100,IP67 IEC 60529,CLASS II EN/IEC 61140
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=860254&lang=en-us
UPC 785901177265
GTIN 03389110177268
Item Type Guard switch
Size 117-117 MM,52 MM,60 MM
Environmental Conditions WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
Operating Temperature -25-70 A Degrees C
Voltage Rating 300VAC
