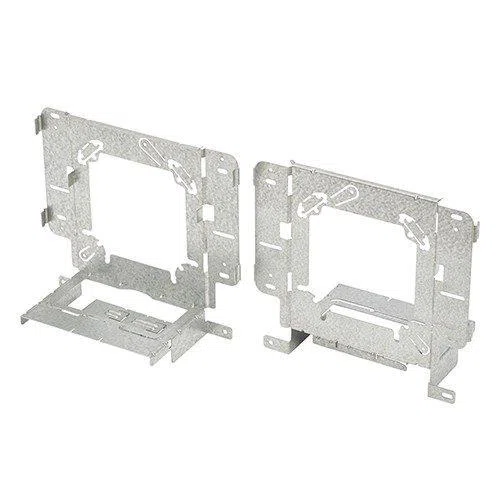

With a simple push, the new Hands Free Stud Mounting Bracket holds itself onto the stud until secured with a screw. Innovative features include Marty Mouse ears to retain the box when plaster ring is removed, and Rabbit Ears to attach a plaster ring for data devices without using a box.
Manuals and Documentation
Features
- A simple push and the bracket holds itself on the stud until secured with a screw
- Box won't fall off when plaster ring is removed
- Accepts 4 in, 4-11/16 in and 5 in boxes
- Built-in, snap off back support extension for studs from 2.5 to 6 in studs
- Designed to mount two boxes at same height on either side of the stud
- Rabbit ears and mud ring allow data communication devices, such as card readers, to be attached to the bracket without the use of a box
- Two screws shown for stud mounting, but only one required for cULus listing
- Bracket extender easily snaps off bracket to snap into place as a back support for up to 6 in stud depths
| Manufacturer Part Number | BB5-HF |
| Brand | B-Line |
| Manufacturer | Eaton |
| UPC | 799038805342 |
| Country Of Origin | US |
| Suitable For Use With | 2-1/2 to 6 in Metal Studs |
| Alternative Part Number | 14630068 |
| Manufacturer Item Status | Active |
| Country | USA |
| Standards Approvals | cULus Listed |
