Appleton

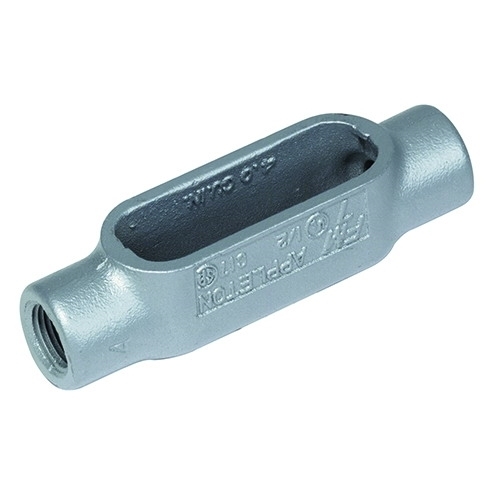

C77 Unilets Type-C Conduit Outlet Body, 2-1/2 in Hub, Form 7 Form, 102 cu-in Capacity, Grayloy Iron, Triple Coated

MFR:
Appleton Electric
MFR #:
C77
UPC:
781381514514
Item #:
96181

FM7 UNILETS Type C Conduit Outlet Body, Hub Size: 2-1/2 IN, Form: 7, Length: 12 IN, Width: 4-1/4 IN, Height: 3.63 IN, Material: Grayloy-Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Color: Gray, Connection: Ta

Manuals and Documentation
Catalog Number C77
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
Color Gray
Connection Tapered Female Threaded
Finish Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
Form 7
Hub Size 2-1/2 IN
Material Grayloy-Iron
Special Features Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers; Equivalent FM7 and Form 7 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body; Wiring capacity: 102 CU-IN as per NEC 314.16(A)
Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
UPC 781381514514
GTIN 00781381514514
Item Type Type C Conduit Outlet Body
Length 12
Length UOM Inch
Width 4-1/4
Width UOM Inch
Height 3.63
Height UOM Inch
