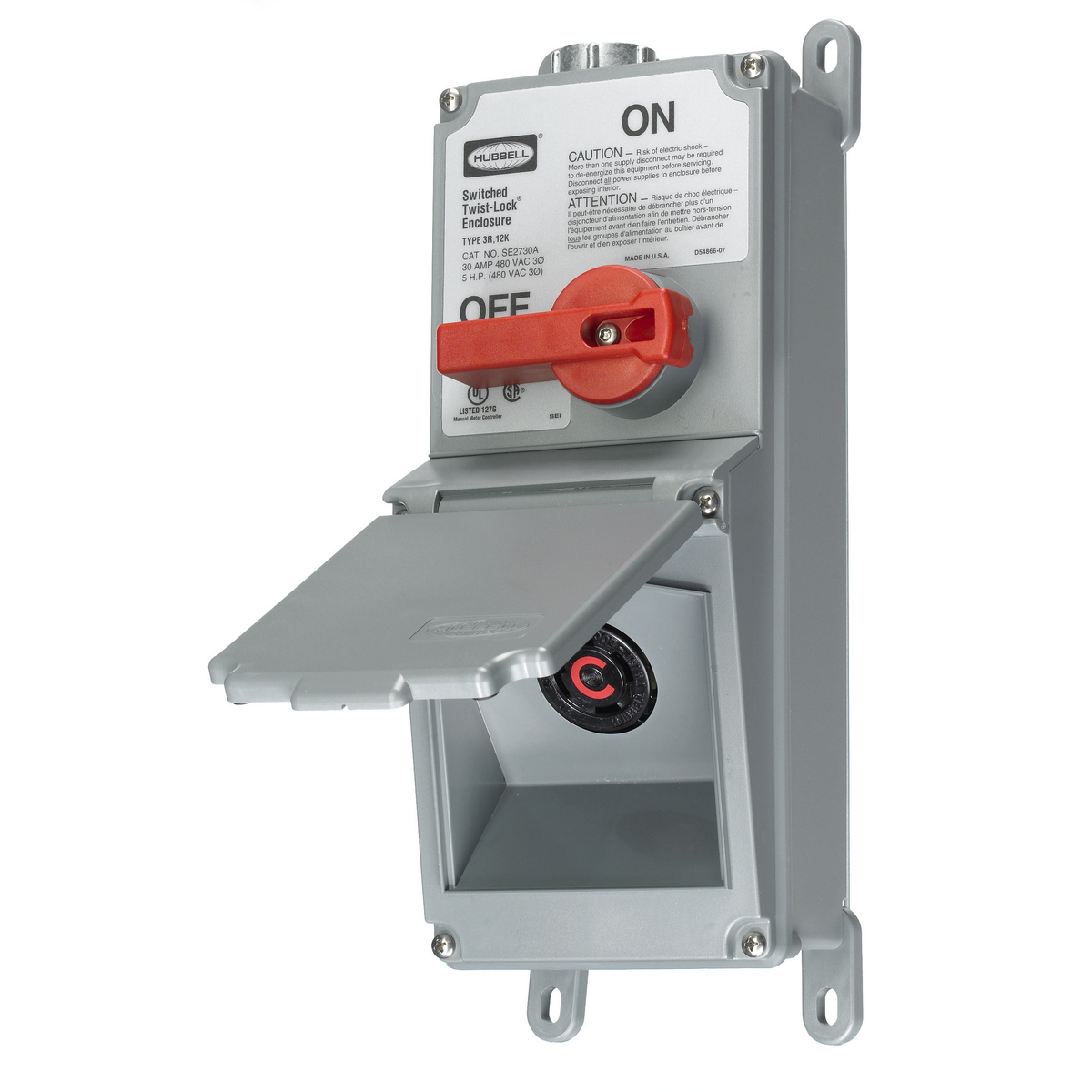

SE2730A 2-Position Extra Heavy Duty Lever Actuated Standard Sized Foot Mount Switched Enclosure, 480 V AC, 30 A, 3 Poles, Gray

MFR:
Hubbell Wiring Device-Kellems
MFR #:
SE2730A
UPC:
783585006352
Item #:
96142

Availability

Location Available Qty
Available Available to Order
$562.13 each

The Switched Twist-Lock and Hubbellock Enclosures integrate a receptacle and a switch to produce distinct advantages for the user. This enclosure replaces box, switch, cover and all in a compact design that meets Type 3R Rainproof or 12K Dust-tight requirements. The receptacle is angled downward for a low profile, and it maintains a low profile while accommodating either a 20 or 30 Amp Twist-Lock receptacle or 30 Amp, 4 wire Hubbellock receptacle. The enclosure can be used in top, bottom or back feed applications. The handle is designed to be locked in the OFF position for lockout protection. Hubbell has developed the Switched Safety Enclosure because users want to be able to disconnect higher voltage devices confidently. Hubbell responded with a line of Switched Safety Enclosures for Twist-Lock and Hubbellock receptacles. The provision of the integral switch and the receptacle in a compact, non-metallic enclosure encourages the safe operating practice of disconnecting at the switch rather than the plug and receptacle. For plants and factories in a wide variety of industries, as well as light industrial facilities, Hubbells Switched Enclosures offer an upgrade thats convenient, compact and easy to install.

Manuals and Documentation
Catalog Number SE2730A
Manufacturer Hubbell Wiring Device-Kellems
Brand Hubbell Wiring Device - Kellems
Country of Origin Puerto Rico
Made in USA No
Action Snap
Actuator Lever
Amperage Rating 30
Application Extra Heavy Duty Industrial
Contact Configuration Two Position
Contact Rating 30A
Enclosure Non-Metallic
Frequency Rating 60Hz
Material Composite
Mounting Mounting Feet
NEMA Rating 6
Number of Poles 3
Operating Cycles 6,000 Cycles
Special Features Standard Product with HBL2730
Standard CSA Certified Type 3R and 12K Enclosure Rating;Listed to UL Standard
UPC 783585006352
GTIN 00783585006352
Item Type Switched Enclosure
Size 11.38 in x 4.88 in x 4.38 in
Environmental Conditions NEMA 4X
Operating Temperature Maximum continuous 75 Degrees C and minimum -40 Degrees C without Impact
Voltage Rating 3 Phase 480
Wattage 14400 W
