POLARIS Vision Tap 250 3 Port SSE
- MFR:
- NSi Industries
- MFR #:
- IPL250-3C
- UPC:
- 662381996664
- Item #:
- 960799
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$105.65
each

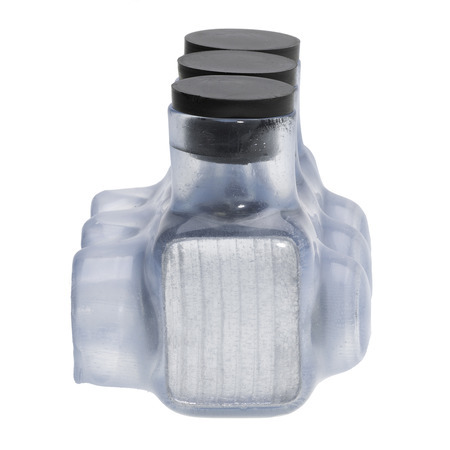

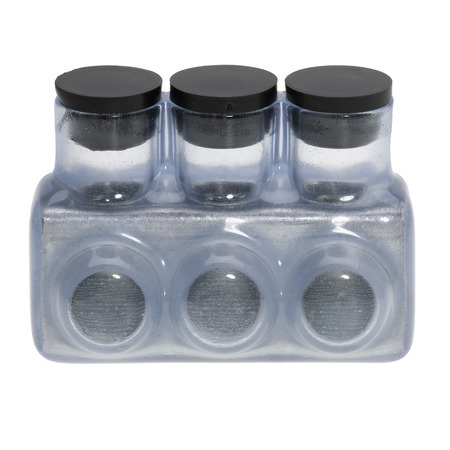

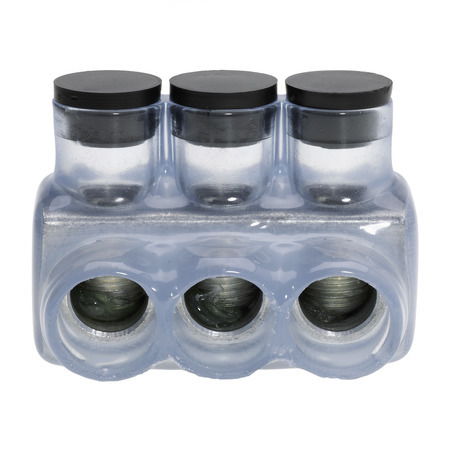

The Polaris IPL250-3C Multi-Tap Single Side Entry Vision Tap Connector features 3 ports sized for 250 MCM - 6 AWG wires. The clear body allows users to see their conductor placement and is wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
Manuals and Documentation
| Catalog Number | IPL250-3C |
| Manufacturer | NSi Industries |
| Brand | Polaris |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Color | Clear |
| Enclosure | Clear Plastisol |
| Finish | Plastisol Insulated |
| Material | Aluminum |
| Number of Conductors | 3 |
| Number of Poles | 1 |
| Special Features | (3) 250 MCM-6 AWG - Dual Rated |
| Standard | UL 486A/B |
| UPC | 662381996664 |
| GTIN | 00662381996664 |
| Item Type | Single Sided Entry |
| Size | L=2.930 - W=2.030 - H=2.180 |
| Environmental Conditions | Dry Location Only |
| Temperature Rating | 90 C |
| Voltage Rating | 600 |
| Wire Size | 250 MCM-6 AWG |
