Telemecanique

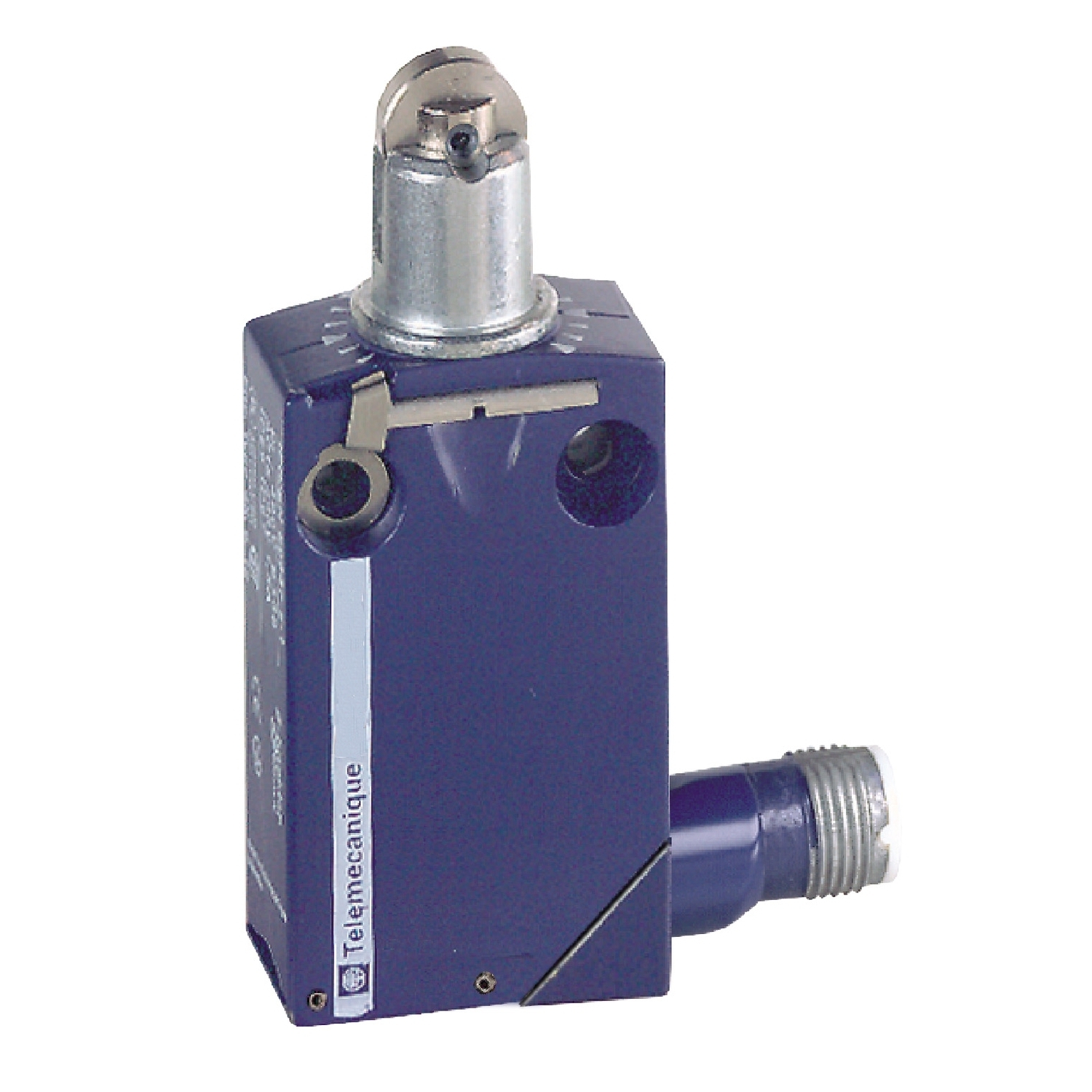

XCMD2102M12 OsiSense XC Heavy Duty Miniature Standard Format Plunger Actuated Limit Switch, 24 V DC, 3 A, Spring Return Roller Lever Actuator, 1NO-1NC Contact, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCMD2102M12
UPC:
785901858980
Item #:
960187

Availability

Location Available Qty
Available Available to Order
$120.32 each

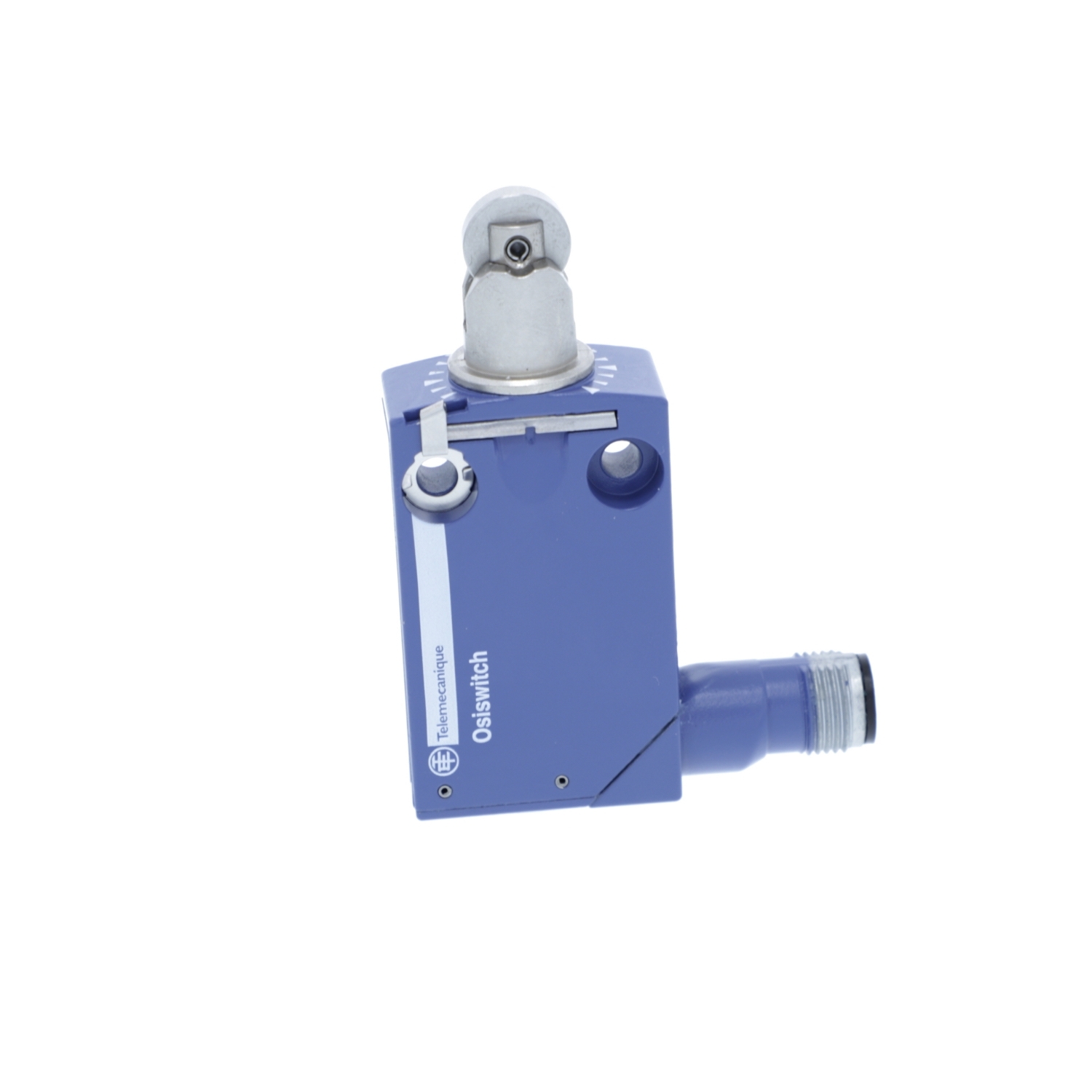

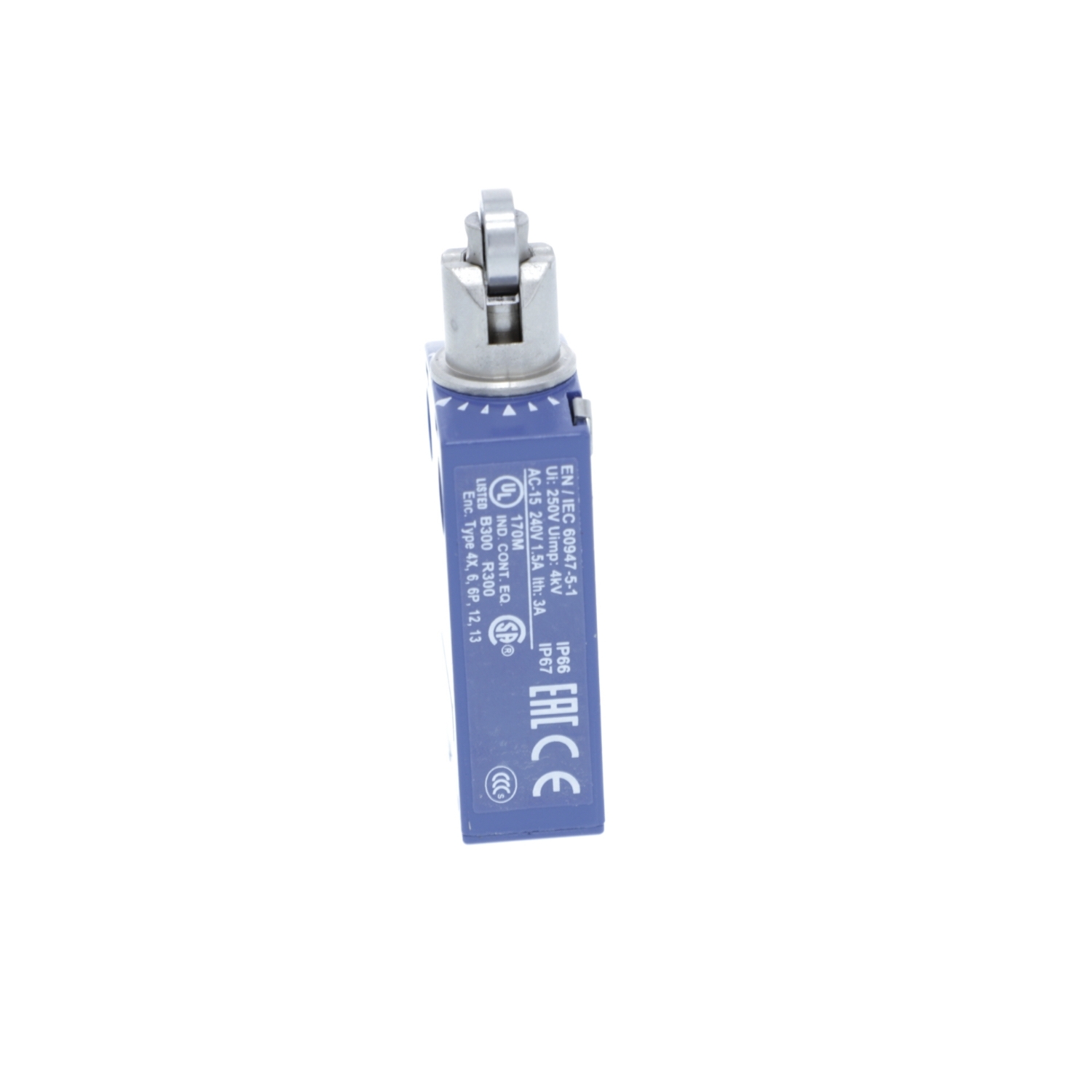

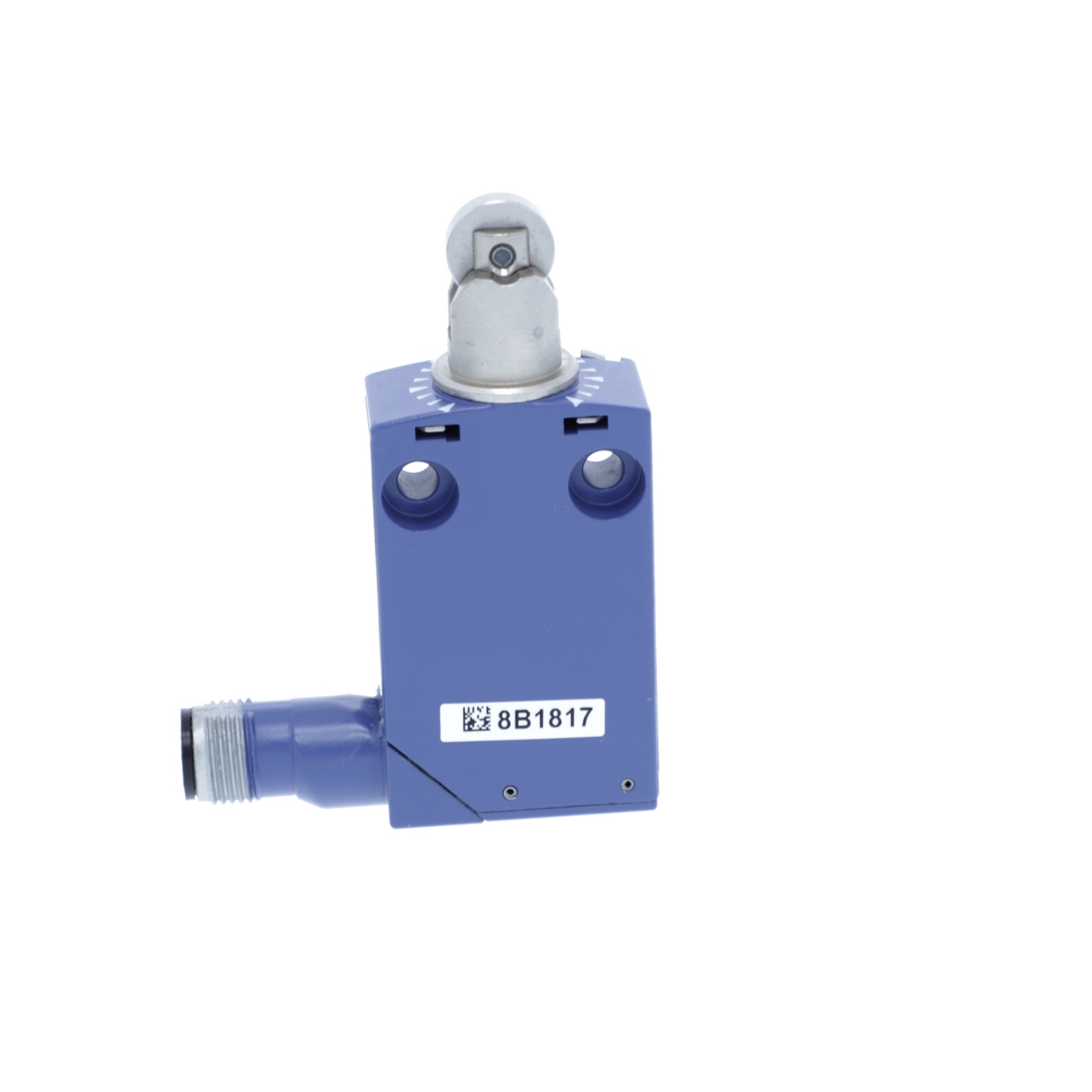

This XCMD miniature format limit switch has a steel roller plunger and a Zamak body. This limit switch has a robust Zamak miniature and modular body, is pre-cabled, allowing an easier installation. It is IP66 and IK06 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head. It has a standard M12 connector, compatible with all existing market sensor cabling.

Manuals and Documentation
Catalog Number XCMD2102M12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Action Lateral approach, 2 directions;Snap action;By 30 Degrees cam
Actuator Spring return roller lever thermoplastic
Amperage Rating 3
Application MINIATURE VARIABLE

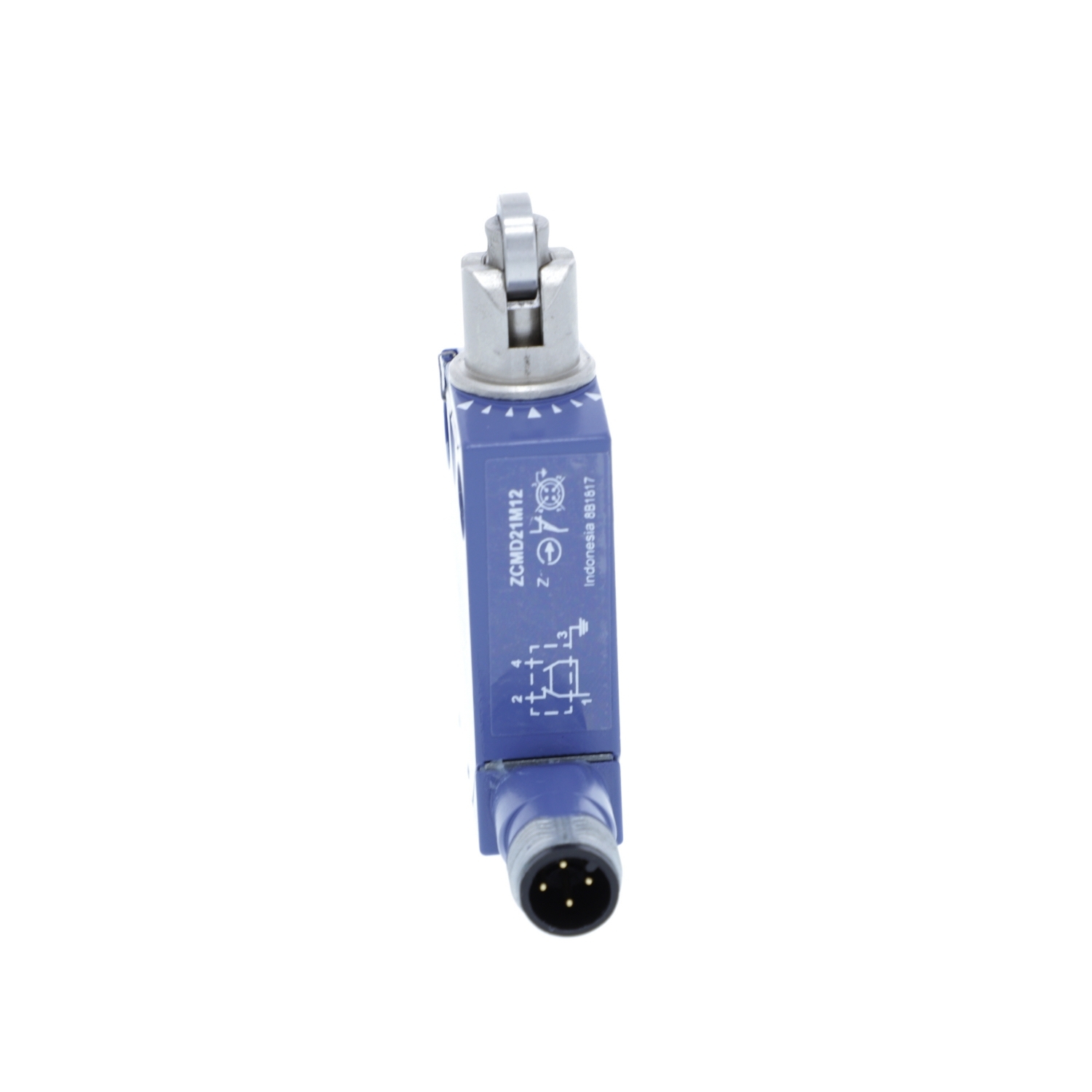

Connection Male connector M12, 4 pins
Contact Configuration 1 NC + 1 NO
Enclosure NEMA 1/2/4X/6/6P/12/13 IP66/67/68
Mounting By The Body
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13, 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features METAL,PLUG-IN BODY
Standard 25 GN 18 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,IK04 EN 62262,IP66 IEC 60529-IP69 IEC 60529,UL 508-CSA C22.2 NO 14-EN/IEC 60947-5-1-EN/IEC 60204-1,UL-CCC-CSA,CLASS III IEC 61140-CLASS III NF C 20-030
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857668&lang=en-us
UPC 785901858980
GTIN 03389110221473
Item Type Limit switch
Operating Temperature -25-70 A Degrees C
Voltage Rating 1 A 24 V, DC-13 EN/IEC 60947-5-1 APPENDIX A
Cross Reference Products ERSCE E600 0 BM/12|ERSCE E700 0 BM/12|McMaster 7628K42|McMaster 7628K43|Schneider XCMA102T300|Schneider XCMA103T300|Schneider XCMD2102M12|Telemecan XCMD2102M12
