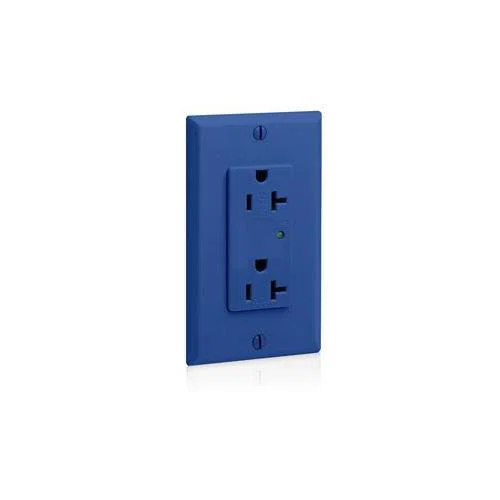

5380-B Self-Grounding Surge Protective Receptacle, 125 V AC, 20 A, 5 kA Short Circuit
- MFR:
- Leviton
- MFR #:
- 5380-B
- UPC:
- 078477009246
- Item #:
- 95831
5380-B Self-Grounding Surge Protective Receptacle, 125 V AC, 20 A, 5 kA Short Circuit
- MFR #:
- 5380-B
- UPC:
- 078477009246
- Item #:
- 95831
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$100.19
each
Leviton® surge protection devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton® surge protection devices are compliant with UL 1449 Standards. Leviton® outstanding surge protection devices divert damaging voltage transients or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.
Manuals and Documentation
Features
- Tamper resistant versions have a shutter mechanism that prevents incidental contact with energized contacts
- Indicator light provides visual indication that equipment is being protected
- EMI/RFI noise filtering
- Wide variety of color options aid in identifying different types of equipment or applications
- Back and side wired design with durable metal mounting strap
- Point of use protection for up to 18000 A of surge current total
- L-N/L-G modes of protection
- 720 J energy rating
- 27 kA peak surge current
| Manufacturer Part Number | 5380-B |
| Brand | Leviton® |
| Manufacturer | Leviton |
| UPC | 078477009246 |
| Country Of Origin | MX |
| Amperage Rating | 20 A |
| Color | Blue |
| Material | Polycarbonate |
| Type | 2-Pole 3-Wire Type 3-Duplex Self-Grounding |
| Voltage Rating | 125 V AC |
| Size | 3.81 in H x 1.7 in W x 1.47 in D |
| Alternative Part Number | 7316006 |
| Manufacturer Item Status | Active |
| Country | USA/Canada |
| Warranty | 10 years |
| Standards Approvals | NEMA WD1/WD6 | ANSI C73 | UL 498/1449 | CSA C22.2 | NOM 057 | UL94 V-2 Flammability Rating |
| Application | Commercial and Industrial Applications |
| Connection | Back/Side Wired |
| Environmental Conditions | -40 to 60 deg C Operating Temperature, UL 94 V-2 Flammability Rated |
| Mounting | Surface |
| Operating Temperature | -40 to 60 deg C |
| Outlet | Straight Blade Receptacle |
| Short Circuit Current Rating | 5 kA |
| Type Of Indicators | Lights |
