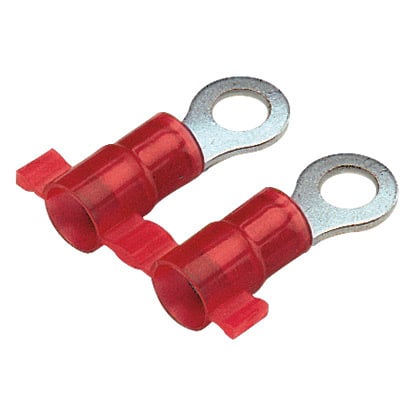

PN18-10R-3K Reel Smart Type PN-R Ring Terminal, 18 AWG Conductor, 0.86 in L, Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard Barrel, Copper, Red
- MFR:
- Panduit
- MFR #:
- PN18-10R-3K
- UPC:
- 074983806218
- Item #:
- 957536
PN18-10R-3K Reel Smart Type PN-R Ring Terminal, 18 AWG Conductor, 0.86 in L, Brazed Seam/Insulation Grip Sleeve/Internal Serration/Standard Barrel, Copper, Red
- MFR #:
- PN18-10R-3K
- UPC:
- 074983806218
- Item #:
- 957536
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$0.4561
each
The PN18-10R-3K Reel Smart Terminal is a continuously molded, nylon insulated, ring terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. The metal insulation grip sleeve crimps to wire insulation, providing protection and strain relief to the crimp joint for high vibration applications. Barrel serrations assure good wire contact and maximum tensile strength.
Manuals and Documentation
| Catalog Number | PN18-10R-3K |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Red |
| Connection | Standard |
| Enclosure | Ring shape |
| Finish | Tin-Plated |
| Insulation | Nylon |
| Material | Copper |
| Standard | cULus Listed 587H E52164, CSA Certified LR31212, Military QPL AS7928 (MS25036-103) |
| UPC | 074983806218 |
| GTIN | 00074983806218 |
| Item Type | Ring Terminal |
| Size | #10 |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #18 AWG |
