Leviton®

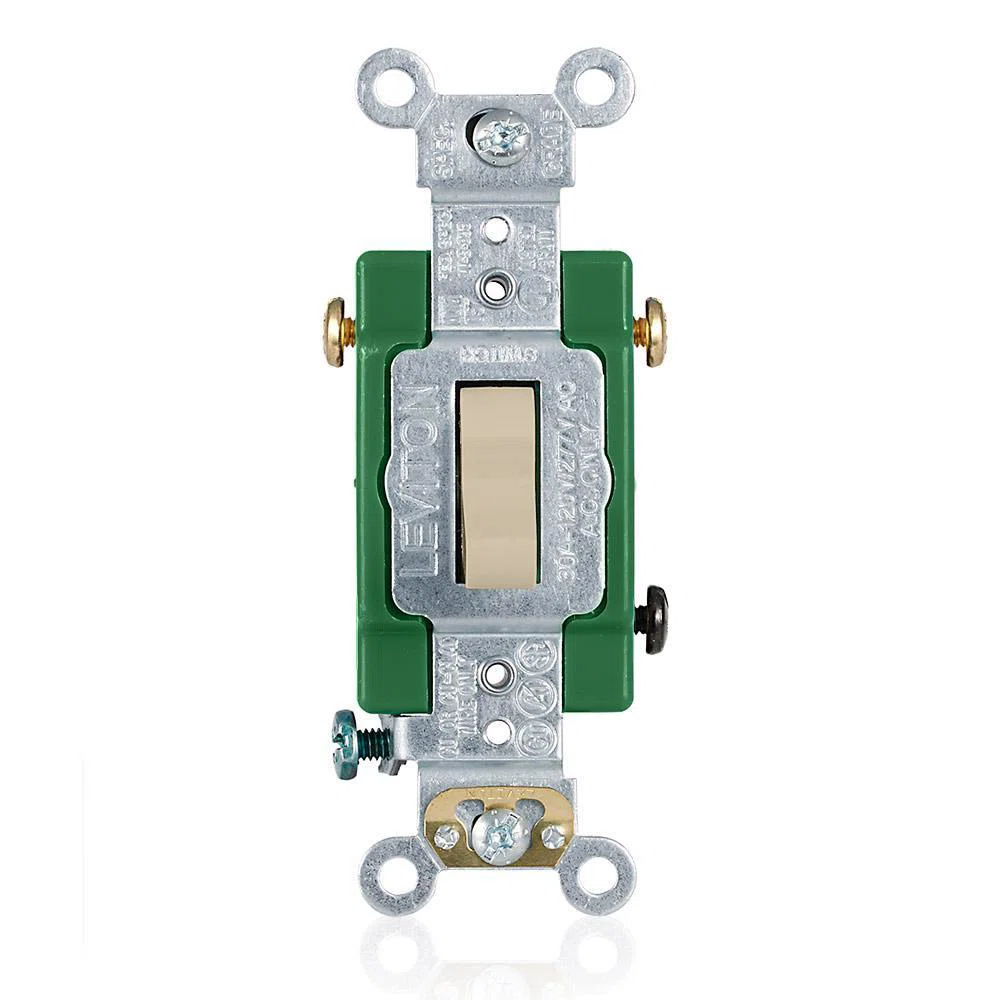

3033-2L 3-Way Extra Heavy Duty Toggle Switch, 120/277 V AC, 30 A

MFR:
Leviton
MFR #:
3033-2L
UPC:
078477772348
Item #:
955016

Availability

Location Available Qty
Available Available to Order
$110.29 each

Levitons industrial grade AC toggle switches for extra heavy duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.

Manuals and Documentation

Features

  • Heavy-gauge copper-alloy brush arm for superior performance
  • Large silver-alloy contacts for long-life prevent sticking, welding and excessive pitting
  • Color-coded covers for easy identification
  • Fully enclosed switch mechanism in rugged housing for strength, track and arc resistance
  • Self-grounding clip (self-grounding when used with a grounded metal wallbox)
  • Wire lead switches also available for fast and easy installation
  • Specification grade
  • UL 94-V2 flammability
  • Tamper resistant switch
  • AC quiet switch
  • Top-of-the-line industrial quality
Manufacturer Part Number 3033-2L
Brand Leviton®
Manufacturer Leviton
UPC 078477772348
Country Of Origin MX
Amperage Rating 30 A
Color Brown
Dimensions 4.06 in H x 1.31 in W x 1.03 in D
Enclosure NEMA WD-1/WD-6
Material Thermoplastic
Type 3-Way Extra Heavy Duty
Voltage Rating 120/277 V AC
Alternative Part Number 7321230
Manufacturer Item Status Active
Country USA/Canada
Warranty 10 years Limited
Standards Approvals ANSI C73 | UL Federal Specification WS896E File No. E7458 | UL 20 | CSA C22.2 No. 111 | CSA 152105 | NOM 057 | RoHS Compliant
Application Commercial Applications
Actuator Key Operated
Contact Rating 2 hp at 120/240 V AC
Environmental Conditions -40 to 65 deg C Temperature
Mounting Surface
Operating Cycles 50000 Cycles
Terminal Type Back/Side Wire
