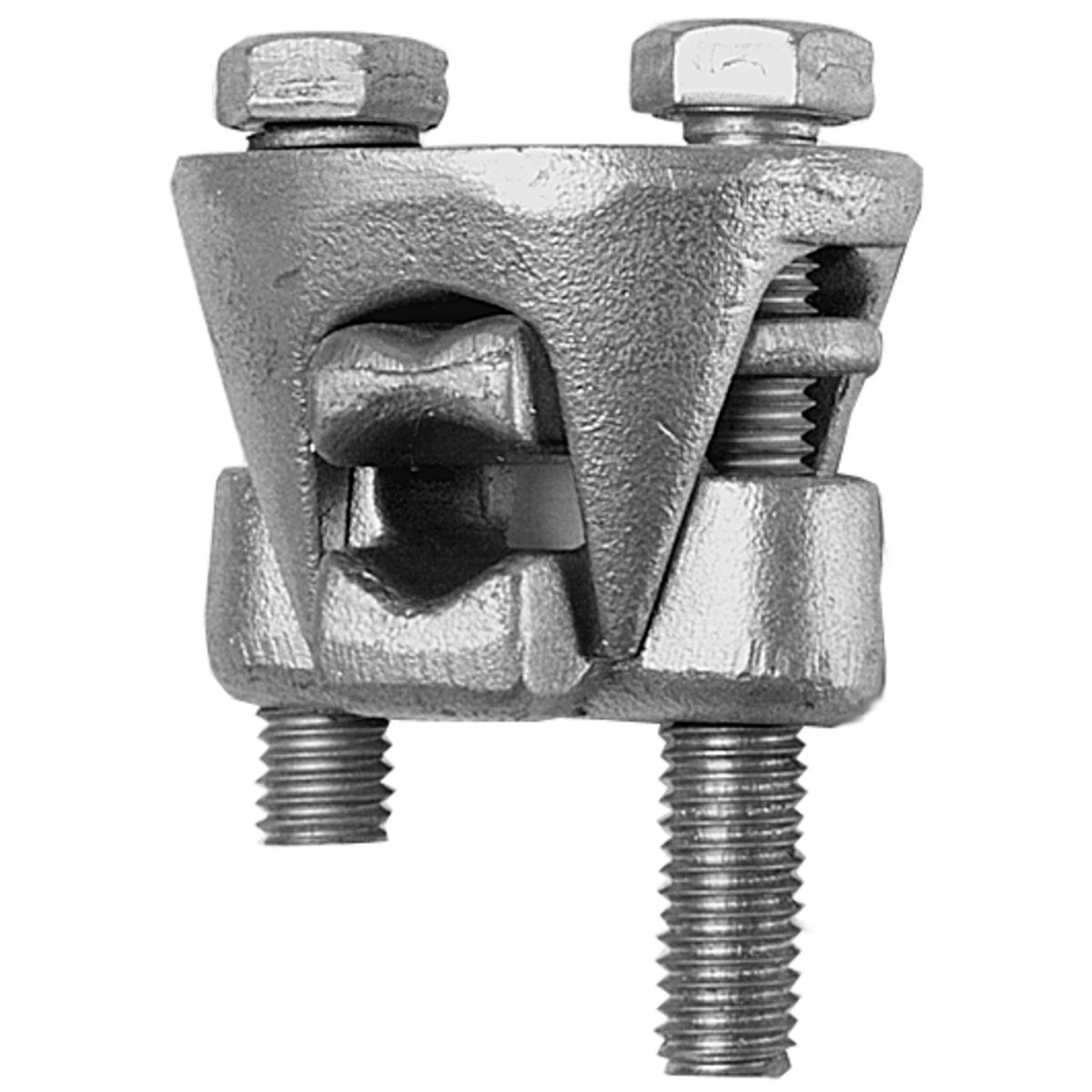

KVS28A 3-Piece High Conductivity Mechanical Connector, 1/0 to 4/0, 10 to 4/0 AWG Solid/Stranded Commercial Aluminum/Copper Conductor, 3/8 in Bolt, Aluminum Alloy
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- KVS28A
- UPC:
- 781810071502
- Item #:
- 954443
KVS28A 3-Piece High Conductivity Mechanical Connector, 1/0 to 4/0, 10 to 4/0 AWG Solid/Stranded Commercial Aluminum/Copper Conductor, 3/8 in Bolt, Aluminum Alloy
- MFR #:
- KVS28A
- UPC:
- 781810071502
- Item #:
- 954443
Availability
| Location | Available Qty |
|---|---|
| Available | Available to Order |
$127.50
each
Manuals and Documentation
| Catalog Number | KVS28A |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For All Combinations Of Copper, Aluminum, ACSR, AAAC And 5005 |
| Material | Copper |
| Special Features | Features: Three-Piece, High-Conductivity, Non-Copper Bearing Aluminum Alloy Connector With Thick Spacer And Aluminum Hardware, Recommended For Heavy Duty Dissimilar Metal Applications, Spacer Separates Conductors And Provides Long Contact Length, Belled Entrances Prevent Chafing, Permit Easier Assembly Of Conductors, Longer Peened Bolt Permits Swivel Action For Easier Installation, Neoprene Ring Prevents Loss Of Shorter Bolt, PENETROX Joint Compound Recommended With Aluminum And ACSR, Conductor Type: Run And Tap: Commercial Stranded Copper, Commercial Stranded Aluminum, ACSR, 5005, AAAC, Stud/bolt Size: 3/8 IN, Length: 1-5/8 IN, Installation Torque: 240 IN-LB, Width: 2-1/16 IN, Height: 3 IN, Conductor Spacer: Yes |
| Standard | RUS |
| UPC | 781810071502 |
| GTIN | 00781810071502 |
| Item Type | KVS |
