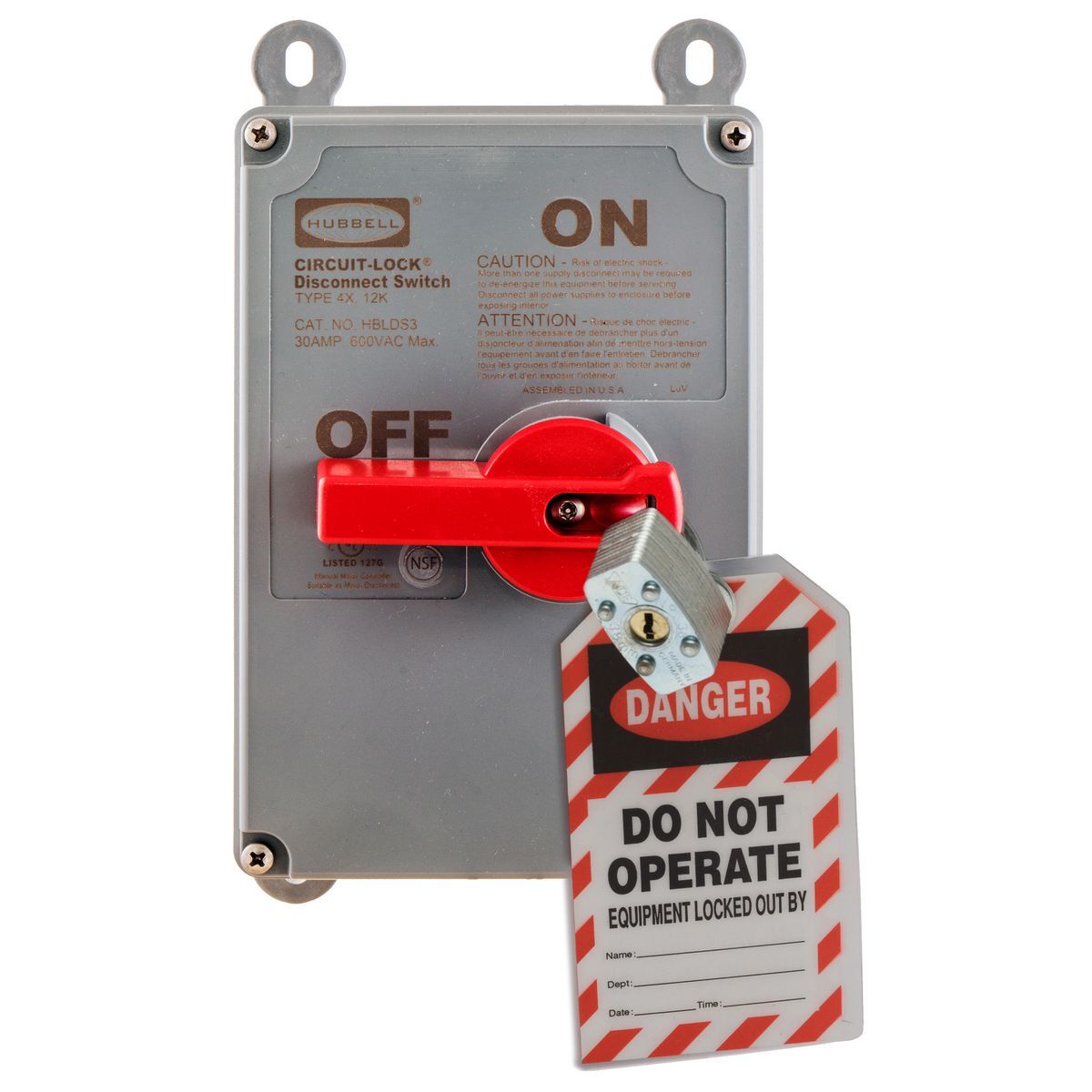

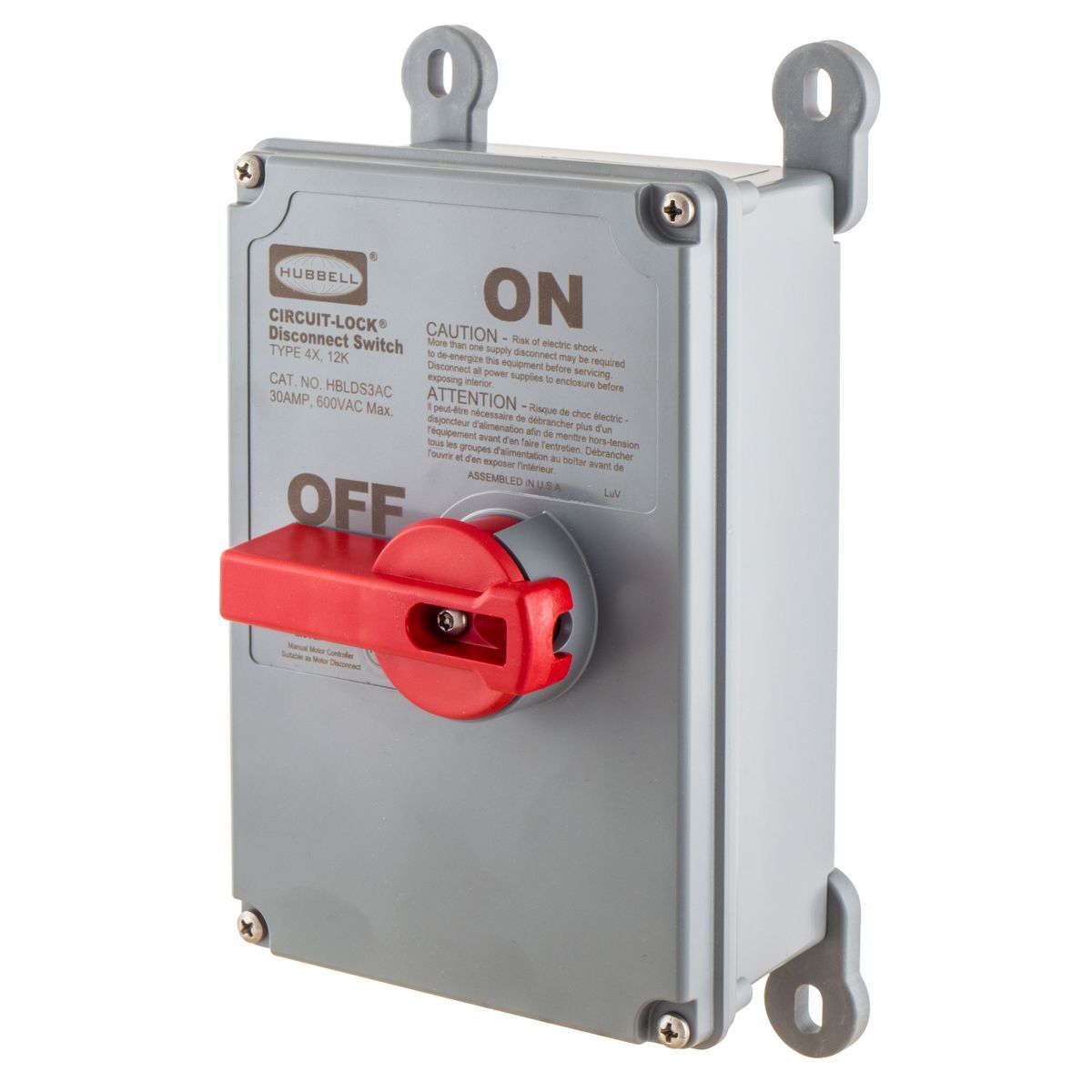

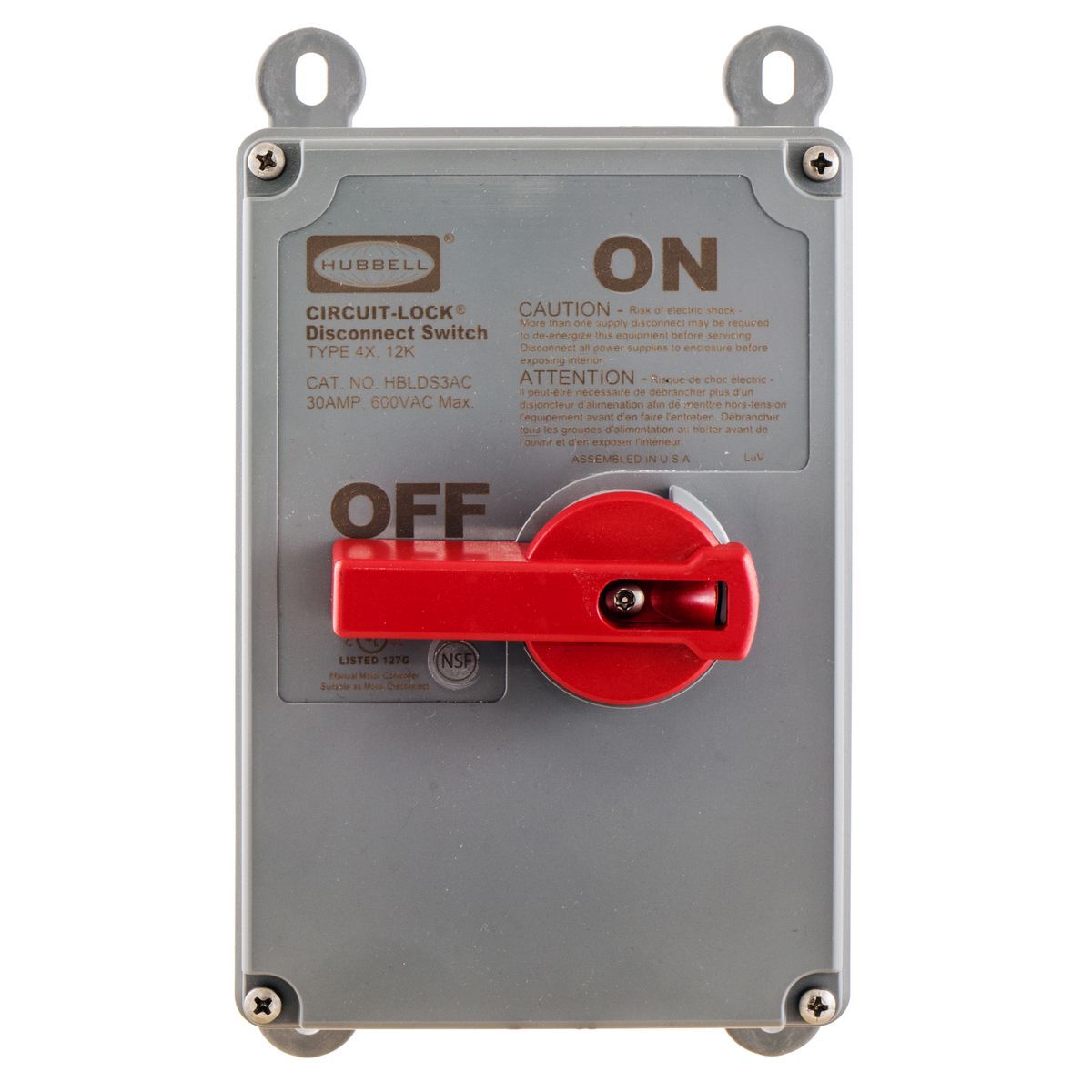

HBLDS33ACNK 2-Position Labelless Non-Metallic Standard Unfused Enclosed Disconnect Switch With (3) Auxiliary Contacts, 600 V, 30 A, 10 hp, 2-Position Contact, 3 Poles
- MFR:
- Hubbell Wiring Device-Kellems
- MFR #:
- HBLDS33ACNK
- UPC:
- 783585392868
- Item #:
- 95437
HBLDS33ACNK 2-Position Labelless Non-Metallic Standard Unfused Enclosed Disconnect Switch With (3) Auxiliary Contacts, 600 V, 30 A, 10 hp, 2-Position Contact, 3 Poles
- MFR #:
- HBLDS33ACNK
- UPC:
- 783585392868
- Item #:
- 95437
Availability
| Location | Available Qty |
|---|---|
| Available | 1 ea |
$606.02
each
NEC section 430.102(B) requires each motor controller to have a disconnect within line of sight from the motorand driven equipment. Hubbells Circuit-Lock Unfused Disconnect Switches are UL listed as a manual motor controller and also suitable as a motor disconnect and meet these code requirements.
Manuals and Documentation
| Catalog Number | HBLDS33ACNK |
| Manufacturer | Hubbell Wiring Device-Kellems |
| Brand | Hubbell Wiring Device - Kellems |
| Country of Origin | Germany |
| Made in USA | No |
| Action | Snap |
| Actuator | Lever |
| Amperage Rating | 30 |
| Application | Labelless |
| Connection | Terminal Screws |
| Contact Configuration | Two Position |
| Contact Rating | 30A |
| Enclosure | Type 4X, IP69k |
| Frequency Rating | 60Hz |
| Material | Composite |
| Mounting | Mounting Feet |
| Number of Poles | 3 |
| Operating Cycles | 6,000 Cycles |
| Special Features | Standard Product with 3) Aux Contact and No Knockouts |
| Standard | UL Listed |
| UPC | 783585392868 |
| GTIN | 00783585392868 |
| Item Type | Disconnect Switches |
| Size | 8.5 in x 6 in x 4.12 in |
| Environmental Conditions | NEMA 4X |
| Operating Temperature | Maximum continuous 75 Degrees C and minimum -40 Degrees C without Impact |
| Voltage Rating | 600 |
| Wattage | 18000 W |
